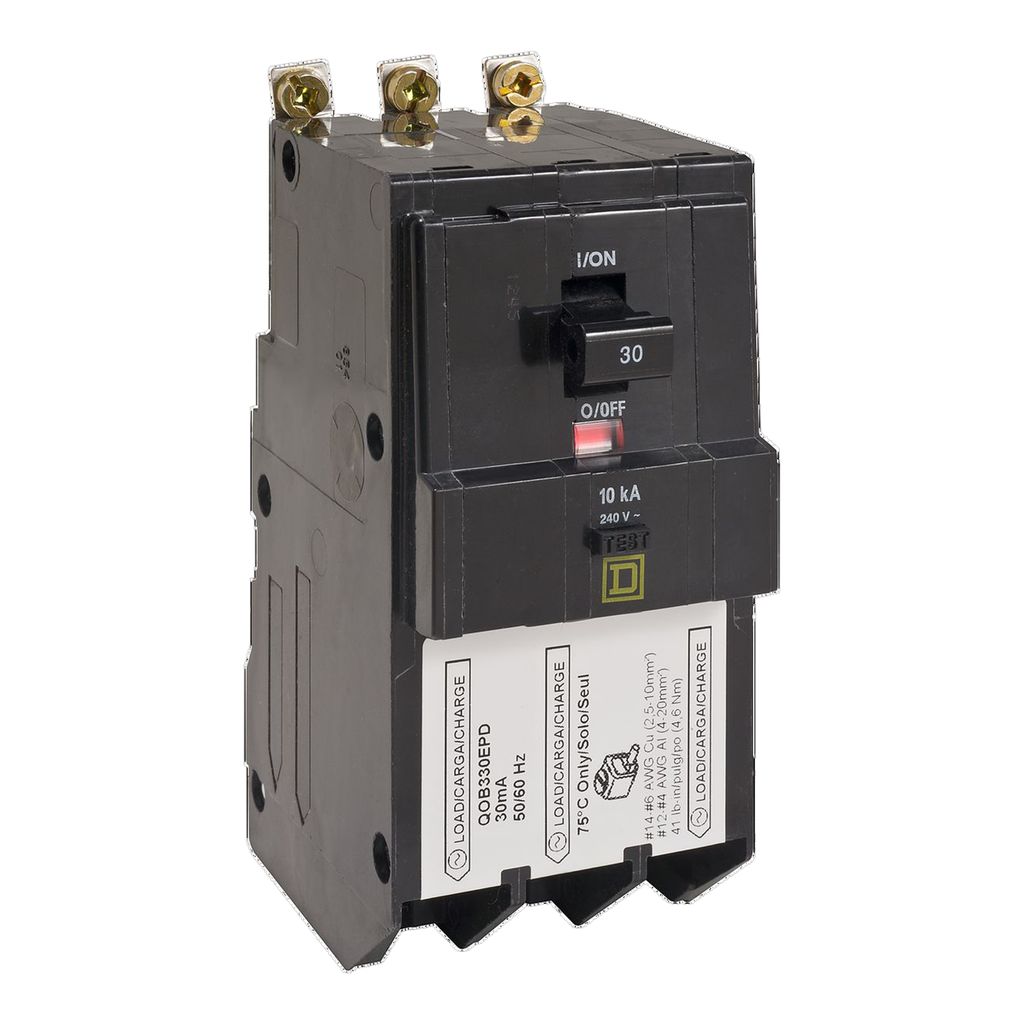

Mini circuit breaker, QO, 30A, 3 pole, 240VAC, 10kA, bolt on, 30mA grd fault B
QO and QOB one, two and three pole thermal magnetic circuit breakers provide overcurrent protection and switching on ac and dc systems. These circuit breakers have an over center, trip free toggle mechanism with quick make, quick break action and positive handle indication. They also have VisiTrip trip indication, which provides a visual indication that the circuit breaker has tripped and interrupted the circuit. A full line of features and factory installed accessories are also available such as shunt trips, auxiliary switches and alarm switches. This 3 pole QO circuit breaker is rated at 30A at 240VAC. This unit provides 10kA breaking capacity and bolt on mounting. This product includes a 30mA ground fault B protection. QO circuit breakers are UL Listed under UL File E84967 and are CSA Certified under CSA Master Contract 153555.
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Product Certifications |
|
|---|---|
| Ambient Air Temperature For Operation | 40 °C |
| Warranty | 18 months |
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP2212001 |
| Sustainable Offer Status | Green Premium product |
| Toxic Heavy Metal Free | Yes |
| California Proposition 65 | WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov |
| Reach Free Of Svhc | Yes |
| China Rohs Regulation | Pro-active China RoHS declaration (out of China RoHS legal scope) |
| Circularity Profile | N/A |
| Eu Rohs Directive | Compliant |
| Height | 105 mm |
| Tightening Torque |
|
| Number Of Spaces Required | 3 |
| Net Weight | 0.590 kg |
| Breaking Capacity | 10 kA 240 V AC |
| Awg Gauge |
|
| Width | 57 mm |
| Depth | 74 mm |
| Country of Origin | Mexico |
| Width | 57 mm |
| Height | 105 mm |
| Weight | 0.590 kg |
| Circuit Breaker Type | ground fault protecting class B 30 mA |
| Range Of Product | QO |
| Product Or Component Type | miniature circuit-breaker |
| Circuit Breaker Application | not rated |
| Mounting Mode | bolt-on |
| Poles Description | 3P |
| Electrical Connection | box lugs |
| Line Rated Current | 30 A |
| [Ue] Rated Operational Voltage | 240 V AC |
Documents
- Qwik-Gard Residual Current Operated Circuit Breakers Installation Instructions - 75085-586-02 (pdf)
- QO/QOB 3-Pole EPD Installation Instructions - 48840-261-01 (pdf)
- Square D Combination AFCI Circuit Breakers Brochure - 0700BR1202 (pdf)
- A Guide to Your Square D Electrical Distribution System - Brochure - 0102BR0201 (pdf)
- Spec Sheet
- Panelboards: Section 9 - Digest 179 (2024) - Panelboards-Lighting-Digest-Catalog-0100CT2401-SEC-09 (pdf)
- Digest Catalog 09: Panelboards - 0100CT1901_SEC-09 (pdf)
- Square D QO and QOB Miniature Circuit Breakers Catalog - 0730CT9801 (pdf)
