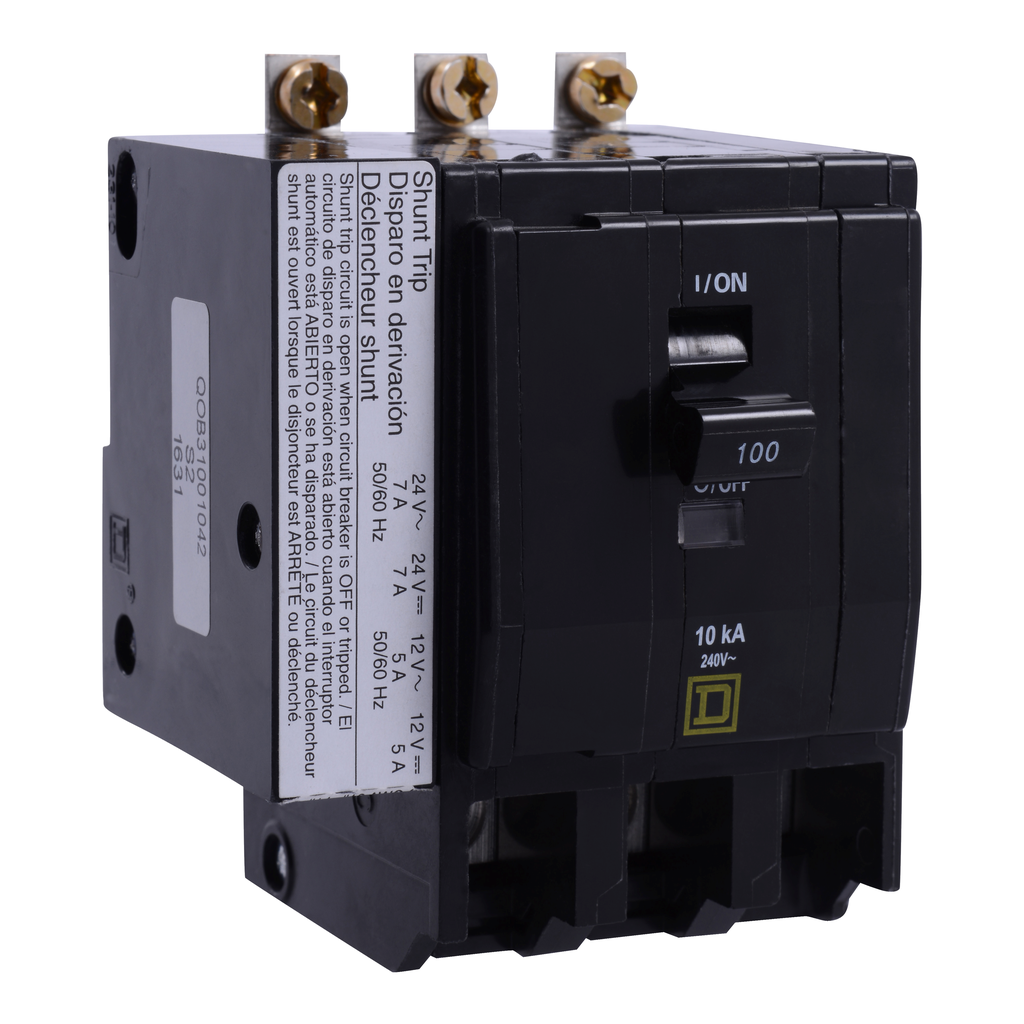

Mini circuit breaker, QO, 100A, 3 pole, 120/240VAC, 10kA, bolt on, aux switch 1A
QO and QOB one, two and three pole thermal magnetic circuit breakers provide overcurrent protection and switching on ac and dc systems. These circuit breakers have an over center, trip free toggle mechanism with quick make, quick break action and positive handle indication. They also have VisiTrip trip indication, which provides a visual indication that the circuit breaker has tripped and interrupted the circuit. A full line of features and factory installed accessories are also available such as shunt trips, auxiliary switches and alarm switches. This 3 pole QO circuit breaker is rated at 100A at 120/240VAC. This unit provides 10kA breaking capacity and bolt on mounting. This product includes an auxiliary switch 1A. QO circuit breakers are UL Listed under UL File E84967 and are CSA Certified under CSA Master Contract 153555.
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Product Certifications |
|
|---|---|
| Ambient Air Temperature For Operation | 40 °C |
| Warranty | 18 months |
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP1304033 |
| Sustainable Offer Status | Green Premium product |
| Toxic Heavy Metal Free | Yes |
| Reach Free Of Svhc | Yes |
| China Rohs Regulation | Pro-active China RoHS declaration (out of China RoHS legal scope) |
| Eu Rohs Directive | Compliant |
| Height | 89 mm |
| Tightening Torque | 5.6-5.6 N.m |
| Number Of Spaces Required | 4 |
| Net Weight | 0.621 kg |
| Breaking Capacity |
|
| Awg Gauge | AWG 4...AWG 2/0 copper or aluminium |
| Width | 76 mm |
| Depth | 74 mm |
| Country of Origin | United States |
| Width | 76 mm |
| Height | 89 mm |
| Weight | 0.621 kg |
| Circuit Breaker Type | standard |
| Range Of Product | QO |
| Accessory / Separate Part Type | auxiliary switch 120 V AC 1A |
| Product Or Component Type | miniature circuit-breaker |
| Circuit Breaker Application | HACR rated |
| Mounting Mode | bolt-on |
| Poles Description | 3P |
| Electrical Connection | box lugs |
| Line Rated Current | 100 A |
| [Ue] Rated Operational Voltage |
|
