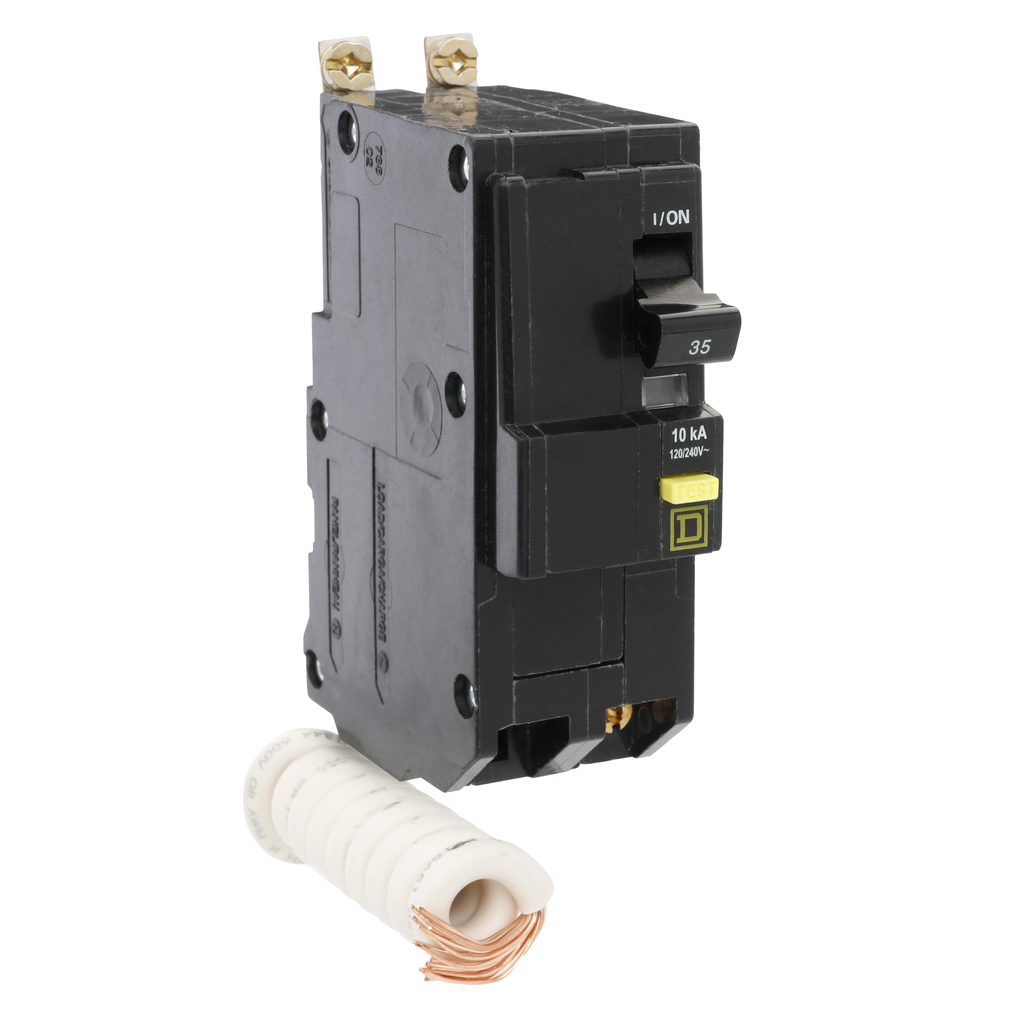

Mini circuit breaker, QO, 35A, 2 pole, 120/240VAC, 10kA, bolt on, 6mA grd fault A, pigtail
QO and QOB one, two and three pole thermal magnetic circuit breakers provide overcurrent protection and switching on ac and dc systems. These circuit breakers have an over center, trip free toggle mechanism with quick make, quick break action and positive handle indication. They also have VisiTrip trip indication, which provides a visual indication that the circuit breaker has tripped and interrupted the circuit. A full line of features and factory installed accessories are also available such as shunt trips, auxiliary switches and alarm switches. This 2 pole QO circuit breaker is rated at 35A at 120/240VAC. This unit provides 10kA breaking capacity and bolt on mounting. This product includes a 6mA ground fault A with pigtail. QO circuit breakers are UL Listed under UL File E84967 and are CSA Certified under CSA Master Contract 153555.
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Country of Origin | Mexico |
|---|---|
| Width | 38 mm |
| Height | 116 mm |
| Weight | 0.435 kg |
| Circuit Breaker Type | ground fault protecting class A 6 mA |
| Range Of Product | QO |
| Product Or Component Type | miniature circuit-breaker |
| Mounting Mode | bolt-on |
| Poles Description | 2P |
| Line Rated Current | 35 A |
| [Ue] Rated Operational Voltage |
|
| Height | 116 mm |
| Tightening Torque | 5-5 N.m |
| Number Of Spaces Required | 2 |
| Net Weight | 0.435 kg |
| Breaking Capacity |
|
| Width | 38 mm |
| Depth | 74 mm |
| California Proposition 65 | WARNING: This product can expose you to chemicals including: DINP, which is known to the State of California to cause cancer, and DIDP, which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
| Eu Rohs Directive | Under investigation |
| Product Certifications |
|
| Ambient Air Temperature For Operation | 40 °C |
