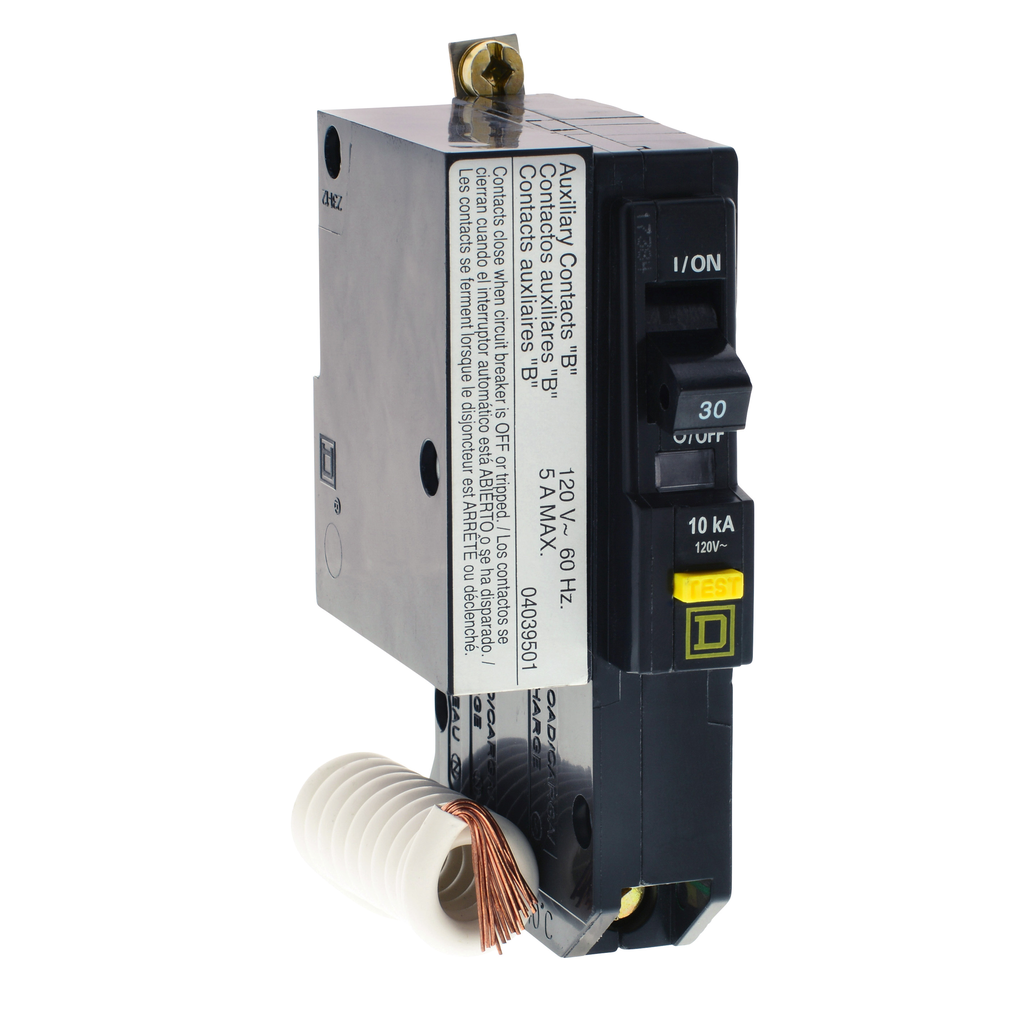

Mini circuit breaker, QO, 30A, 1 pole, 120VAC, 10kA, bolt on, 6mA grd fault A, pigtail, aux switch 1A
QO and QOB one, two and three pole thermal magnetic circuit breakers provide overcurrent protection and switching on ac and dc systems. These circuit breakers have an over center, trip free toggle mechanism with quick make, quick break action and positive handle indication. They also have VisiTrip trip indication, which provides a visual indication that the circuit breaker has tripped and interrupted the circuit. A full line of features and factory installed accessories are also available such as shunt trips, auxiliary switches and alarm switches. This 1 pole QO circuit breaker is rated at 30A at 120VAC. This unit provides 10kA breaking capacity and bolt on mounting. This product includes a 6mA ground fault A with pigtail, and a auxiliary switch 1A. QO circuit breakers are UL Listed under UL File E84967 and are CSA Certified under CSA Master Contract 153555.
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Product Certifications |
|
|---|---|
| Ambient Air Temperature For Operation | 40 °C |
| Warranty | 18 months |
| California Proposition 65 | WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
| Eu Rohs Directive | Under investigation |
| Height | 105 mm |
| Tightening Torque | 4-4 N.m |
| Number Of Spaces Required | 2 |
| Net Weight | 0.113 kg |
| Breaking Capacity | 10 kA 120 V AC |
| Awg Gauge |
|
| Width | 38 mm |
| Depth | 74 mm |
| Country of Origin | Mexico |
| Width | 38 mm |
| Height | 105 mm |
| Weight | 0.113 kg |
| Circuit Breaker Type | ground fault protecting class A 6 mA |
| Range Of Product | QO |
| Accessory / Separate Part Type | auxiliary switch 120 V AC 1A |
| Product Or Component Type | miniature circuit-breaker |
| Circuit Breaker Application | not rated |
| Mounting Mode | bolt-on |
| Poles Description | 1P |
| Electrical Connection | pressure plate |
| Line Rated Current | 30 A |
| [Ue] Rated Operational Voltage | 120 V AC |
