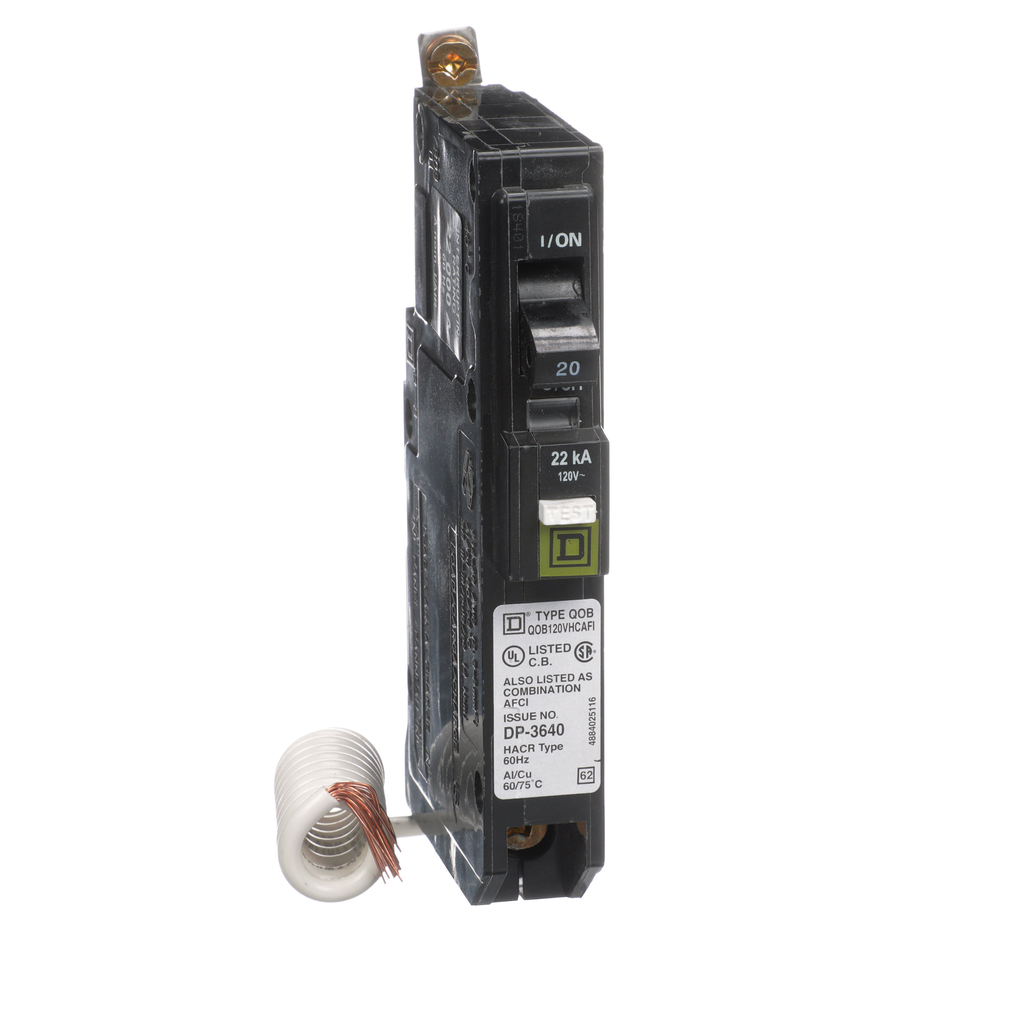

Mini circuit breaker, QO, 20A, 1 pole, 120VAC, 22kA, bolt on, combo ARC fault, pigtail
QO and QOB one, two and three pole thermal magnetic circuit breakers provide overcurrent protection and switching on ac and dc systems. These circuit breakers have an over center, trip free toggle mechanism with quick make, quick break action and positive handle indication. They also have VisiTrip trip indication, which provides a visual indication that the circuit breaker has tripped and interrupted the circuit. A full line of features and factory installed accessories are also available such as shunt trips, auxiliary switches and alarm switches. This 1 pole QO circuit breaker is rated at 20A at 120VAC. This unit provides 22kA breaking capacity and bolt on mounting. This product includes a combination arc fault with pigtail. QO circuit breakers are UL Listed under UL File E84967 and are CSA Certified under CSA Master Contract 153555.
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Product Certifications |
|
|---|---|
| Ambient Air Temperature For Operation | 40 °C |
| Warranty | 18 months |
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP2212005 |
| Sustainable Offer Status | Green Premium product |
| Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
| California Proposition 65 | WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov |
| China Rohs Regulation | Product out of China RoHS scope. Substance declaration for your information. |
| Circularity Profile | ENVEOLI2212005 |
| Eu Rohs Directive | Compliant with Exemptions |
| Height | 121 mm |
| Number Of Spaces Required | 1 |
| Net Weight | 0.254 kg |
| Breaking Capacity | 22 kA 120 V AC |
| Awg Gauge |
|
| Width | 19 mm |
| Depth | 74 mm |
| Country of Origin | Mexico |
| Width | 19 mm |
| Height | 121 mm |
| Weight | 0.254 kg |
| Connections - Terminals | pigtail neutral |
| Circuit Breaker Type | combination ARC-fault |
| Range Of Product | QO |
| Product Or Component Type | miniature circuit-breaker |
| Circuit Breaker Application | HACR rated |
| Mounting Mode | bolt-on |
| Poles Description | 1P |
| Electrical Connection | pressure plate |
| Line Rated Current | 20 A |
| [Ue] Rated Operational Voltage | 120 V AC |
