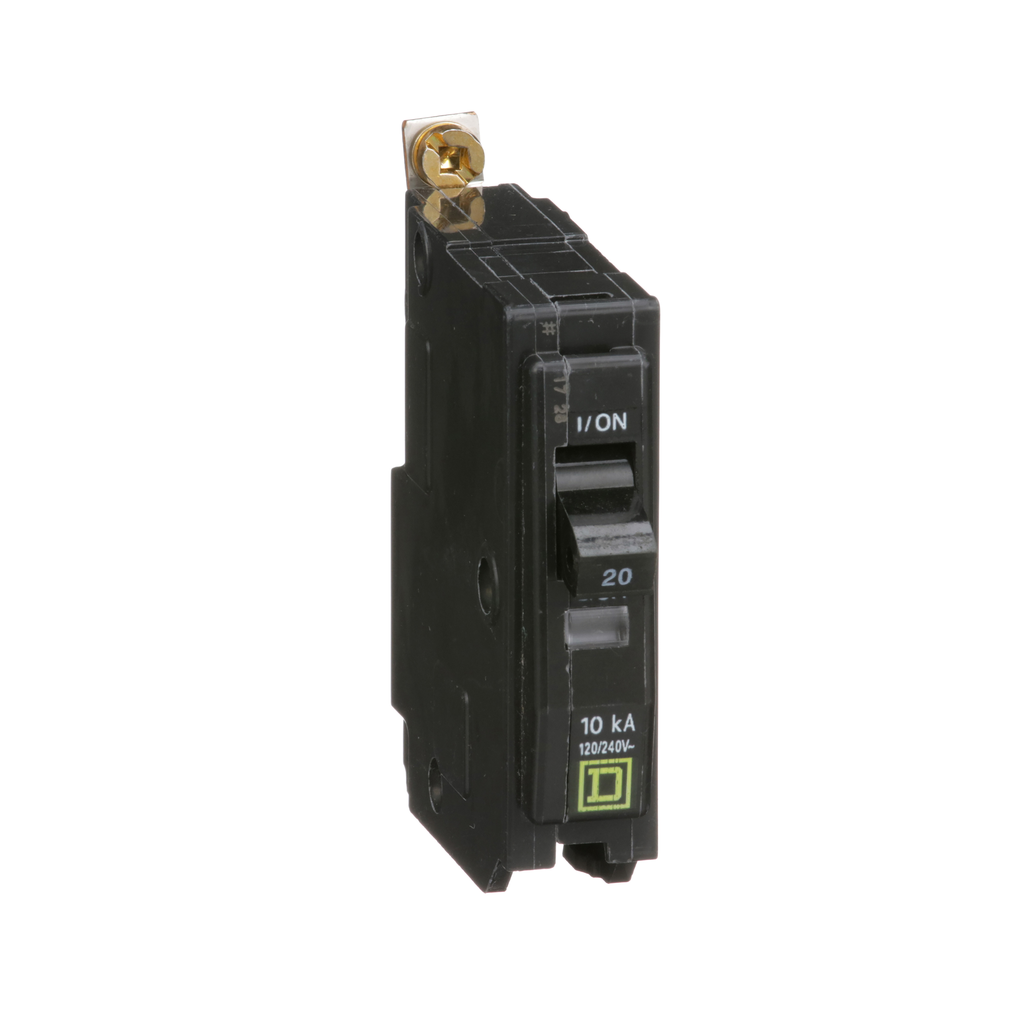

Mini circuit breaker, QO, 20A, 1 pole, 120/240VAC, 10kA, bolt on, consumer pack
QO and QOB one, two and three pole thermal magnetic circuit breakers provide overcurrent protection and switching on ac and dc systems. These circuit breakers have an over center, trip free toggle mechanism with quick make, quick break action and positive handle indication. They also have VisiTrip trip indication, which provides a visual indication that the circuit breaker has tripped and interrupted the circuit. A full line of features and factory installed accessories are also available such as shunt trips, auxiliary switches and alarm switches. This 1 pole QO circuit breaker is rated at 20A at 120/240VAC. This unit provides 10kA breaking capacity and bolt on mounting. QO circuit breakers are UL Listed under UL File E84967 and are CSA Certified under CSA Master Contract 153555. This product is a consumer pack.
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Rohs Exemption Information | Yes |
|---|---|
| Mercury Free | Yes |
| Toxic Heavy Metal Free | Yes |
| China Rohs Regulation | Product out of China RoHS scope. Substance declaration for your information. |
| Eu Rohs Directive | Compliant with Exemptions |
| Country of Origin | Mexico |
| Width | 19 mm |
| Height | 76 mm |
| Weight | 0.122 kg |
| Circuit Breaker Type | standard |
| Range Of Product | QO |
| Product Or Component Type | miniature circuit-breaker |
| Type Of Packing | consumer packaging |
| Circuit Breaker Application | HACR and Switching Duty rated |
| Mounting Mode | bolt-on |
| Poles Description | 1P |
| Electrical Connection | pressure plate |
| Line Rated Current | 20 A |
| [Ue] Rated Operational Voltage |
|
| Height | 76 mm |
| Tightening Torque | 4-4 N.m |
| Number Of Spaces Required | 1 |
| Net Weight | 0.122 kg |
| Breaking Capacity |
|
| Awg Gauge | AWG 14...AWG 8 copper or aluminium |
| Width | 19 mm |
| Depth | 74 mm |
| Product Certifications |
|
| Ambient Air Temperature For Operation | 40 °C |
