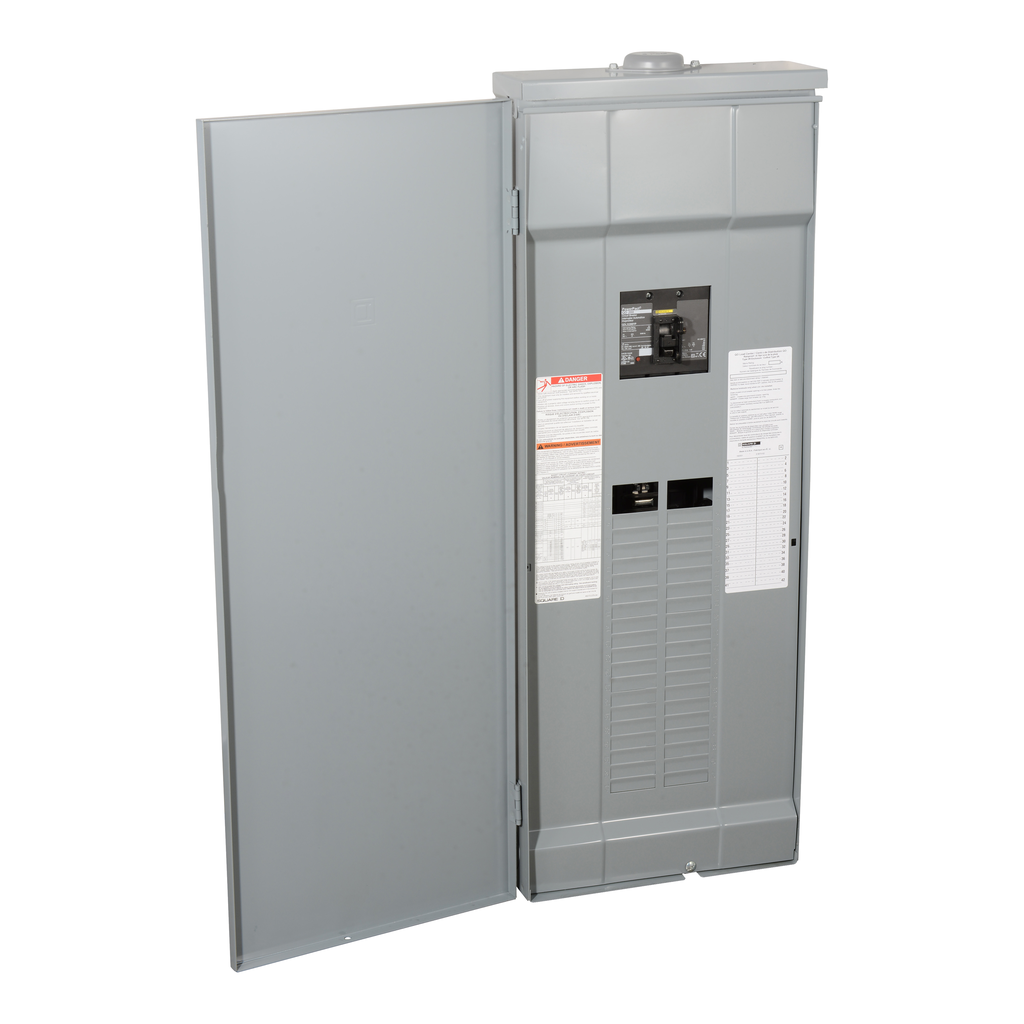

Load center, QO, 3 phase, 42 spaces, 42 circuits, 200A convertible main breaker, NEMA3R, CSA, special
QO Load Centers offer premium features by allowing QO breakers, ground fault interrupters, arc fault interrupters, and surge arresters to be installed inside. QO Load Centers are designed for residential and industrial use to protect electrical systems, equipment, and people. They are available in both traditional and plug on neutral configurations. There is 3 types of mains available. There is main circuit breaker, main lugs, and generator panel. Single and three phase options are available. The bus bars are tin plated copper and are shielded. Indoor and outdoors enclosures are an option. QO Load Centers enable the use of a full complement of accessories. This 3 phase load center has 42 spaces and 42 circuits. This system provides a 200A convertible main breaker in a NEMA 3R enclosure. This product is UL and CSA rated.
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Height | 1011 mm |
|---|---|
| Phase | 3 phase 4 wires |
| [Ue] Rated Operational Voltage | 120/240 V AC |
| Electrical Connection | lugs |
| Number Of Circuits | 42 |
| Number Of Spaces | 42 |
| Short-Circuit Current | 25 kA |
| Number Of Tandem Circuit Breakers | 0 |
| Material | tin plated copper: busbar |
| Surface Finish | baked enamel Gray |
| Line Rated Current | 100 A |
| Enclosure Material | welded galvannealed steel |
| Awg Gauge | AWG 4...250 kcmil aluminium/copper |
| Width | 375 mm |
| Depth | 108 mm |
| Device Composition | grounding bar (ordered separately) |
| Box Number | 13 |
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP2212001 |
| Sustainable Offer Status | Green Premium product |
| Toxic Heavy Metal Free | Yes |
| Reach Free Of Svhc | Yes |
| China Rohs Regulation | Pro-active China RoHS declaration (out of China RoHS legal scope) |
| Circularity Profile | N/A |
| Eu Rohs Directive | Compliant |
| Country of Origin | United States |
| Width | 375 mm |
| Height | 1011 mm |
| Range Of Product | QO |
| Product Or Component Type | Load Center |
| Cover Type | surface cover |
| Product Certifications |
|
| Ambient Air Temperature For Operation |
|
| Nema Degree Of Protection | NEMA 3R weatherproof enclosure |
