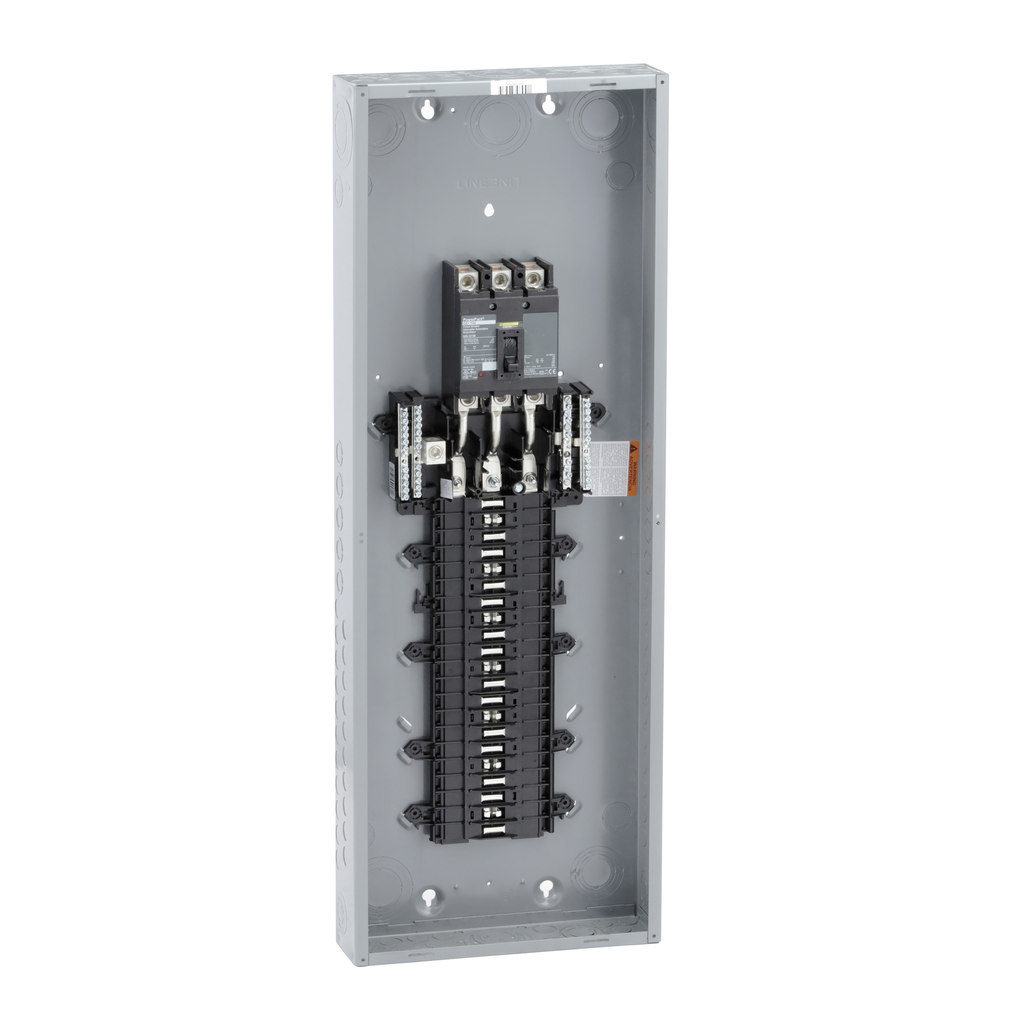

Load center, QO, 3 phase, 42 spaces, 42 circuits, 150A convertible main breaker, NEMA1, QDL
QO Load Centers offer premium features by allowing QO breakers, ground fault interrupters, arc fault interrupters, and surge arresters to be installed inside. QO Load Centers are designed for residential and industrial use to protect electrical systems, equipment, and people. They are available in both traditional and plug on neutral configurations. There is 3 types of mains available. There is main circuit breaker, main lugs, and generator panel. Single and three phase options are available. The bus bars are tin plated copper and are shielded. Indoor and outdoors enclosures are an option. QO Load Centers enable the use of a full complement of accessories. This 3 phase load center has 42 spaces and 42 circuits. This system provides a 150A convertible main breaker in a NEMA 1 enclosure. It also includes a QDL circuit breaker and is UL rated.
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Product Certifications | UL Listed |
|---|---|
| Ambient Air Temperature For Operation |
|
| Nema Degree Of Protection | NEMA 1 indoor enclosure |
| Warranty | 18 months |
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP2212001 |
| Sustainable Offer Status | Green Premium product |
| Toxic Heavy Metal Free | Yes |
| California Proposition 65 | WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
| Reach Free Of Svhc | Yes |
| China Rohs Regulation | Pro-active China RoHS declaration (out of China RoHS legal scope) |
| Circularity Profile | N/A |
| Eu Rohs Directive | Compliant |
| Height | 1000 mm |
| Phase |
|
| Tightening Torque | Cover 20 lb.in |
| [Ue] Rated Operational Voltage |
|
| Electrical Connection | lugs |
| Number Of Circuits | 42 |
| Number Of Spaces | 42 |
| Short-Circuit Current | 25 kA |
| Number Of Tandem Circuit Breakers | 0 |
| Material | tin plated copper: busbar |
| Surface Finish | baked enamel Gray |
| Line Rated Current | 150 A |
| Enclosure Material | welded sheet steel |
| Awg Gauge | AWG 4...300 kcmil aluminium/copper |
| Width | 362 mm |
| Load Center Type | main breaker |
| Device Composition | grounding bar (ordered separately) |
| Box Number | 12 |
| Country of Origin | United States |
| Width | 362 mm |
| Height | 1000 mm |
| Range Of Product | QO |
| Product Or Component Type | Load Center |
| Cover Type | order separately |
