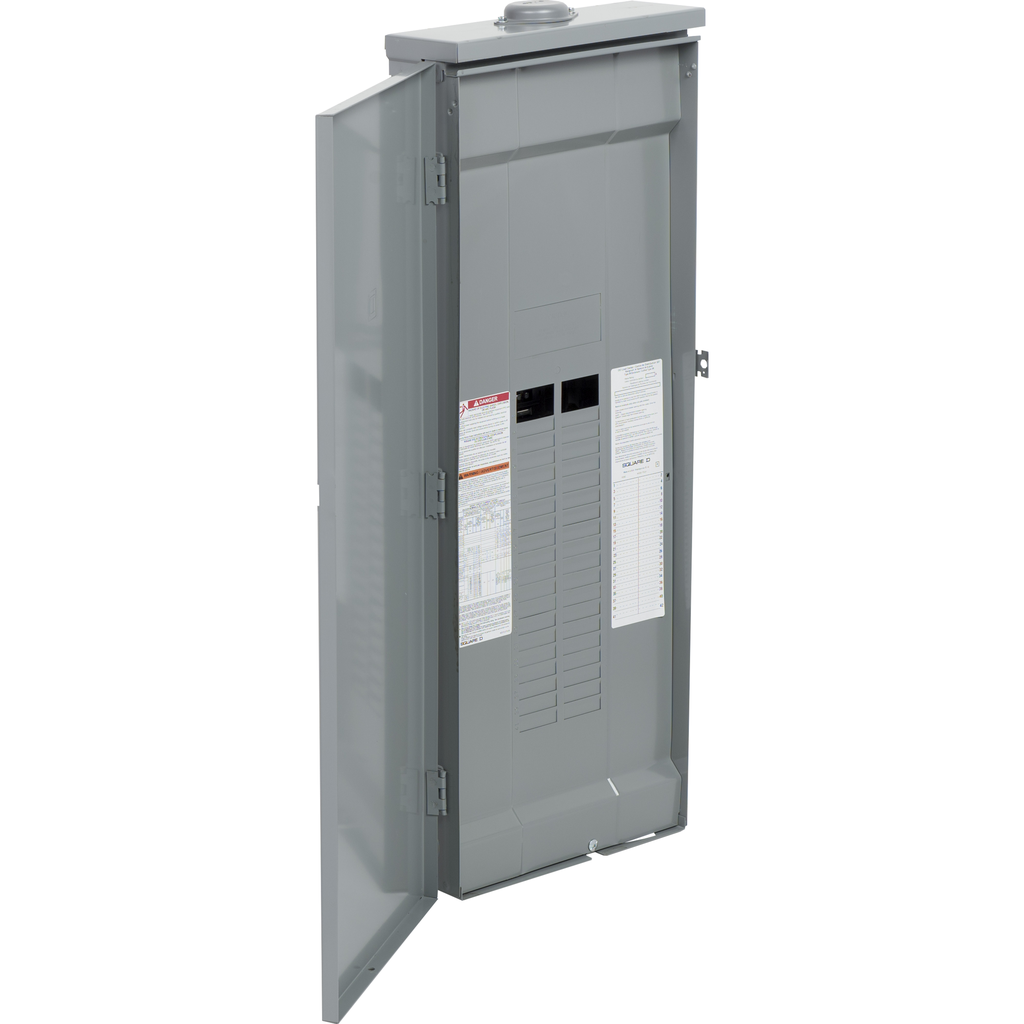

Load center, QO, 3 phase, 42 spaces, 42 circuits, 225A convertible main lugs, NEMA3R, CSA
QO Load Centers offer premium features by allowing QO breakers, ground fault interrupters, arc fault interrupters, and surge arresters to be installed inside. QO Load Centers are designed for residential and industrial use to protect electrical systems, equipment, and people. They are available in both traditional and plug on neutral configurations. There is 3 types of mains available. There is main circuit breaker, main lugs, and generator panel. Single and three phase options are available. The bus bars are tin plated copper and are shielded. Indoor and outdoors enclosures are an option. QO Load Centers enable the use of a full complement of accessories. This 3 phase load center has 42 spaces and 42 circuits. This system provides 225A convertible main lugs in a NEMA 3R enclosure. This product is UL and CSA rated.
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Product Certifications |
|
|---|---|
| Ambient Air Temperature For Operation |
|
| Nema Degree Of Protection | NEMA 3R weatherproof enclosure |
| Warranty | 18 months |
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP2212001 |
| Sustainable Offer Status | Green Premium product |
| Toxic Heavy Metal Free | Yes |
| Reach Free Of Svhc | Yes |
| China Rohs Regulation | Pro-active China RoHS declaration (out of China RoHS legal scope) |
| Circularity Profile | N/A |
| Eu Rohs Directive | Compliant |
| Height | 976 mm |
| Phase | 3 phase 4 wires |
| Tightening Torque | main lugs 250 lb.in, AWG 4...250 kcmil, aluminium/copper |
| [Ue] Rated Operational Voltage | 120/240 V AC |
| Electrical Connection | lugs |
| Number Of Circuits | 42 |
| Number Of Spaces | 42 |
| Number Of Tandem Circuit Breakers | 0 |
| Surface Finish | baked enamel Gray |
| Line Rated Current | 225 A |
| Enclosure Material | welded galvannealed steel |
| Awg Gauge | AWG 6...300 kcmil aluminium/copper |
| Width | 361 mm |
| Depth | 108 mm |
| Load Center Type | main lugs |
| Device Composition | grounding bar (factory installed) |
| Box Number | 9RB |
| Country of Origin | United States |
| Width | 361 mm |
| Height | 976 mm |
| Range Of Product | QO |
| Product Or Component Type | Load Center |
| Cover Type | surface cover |
