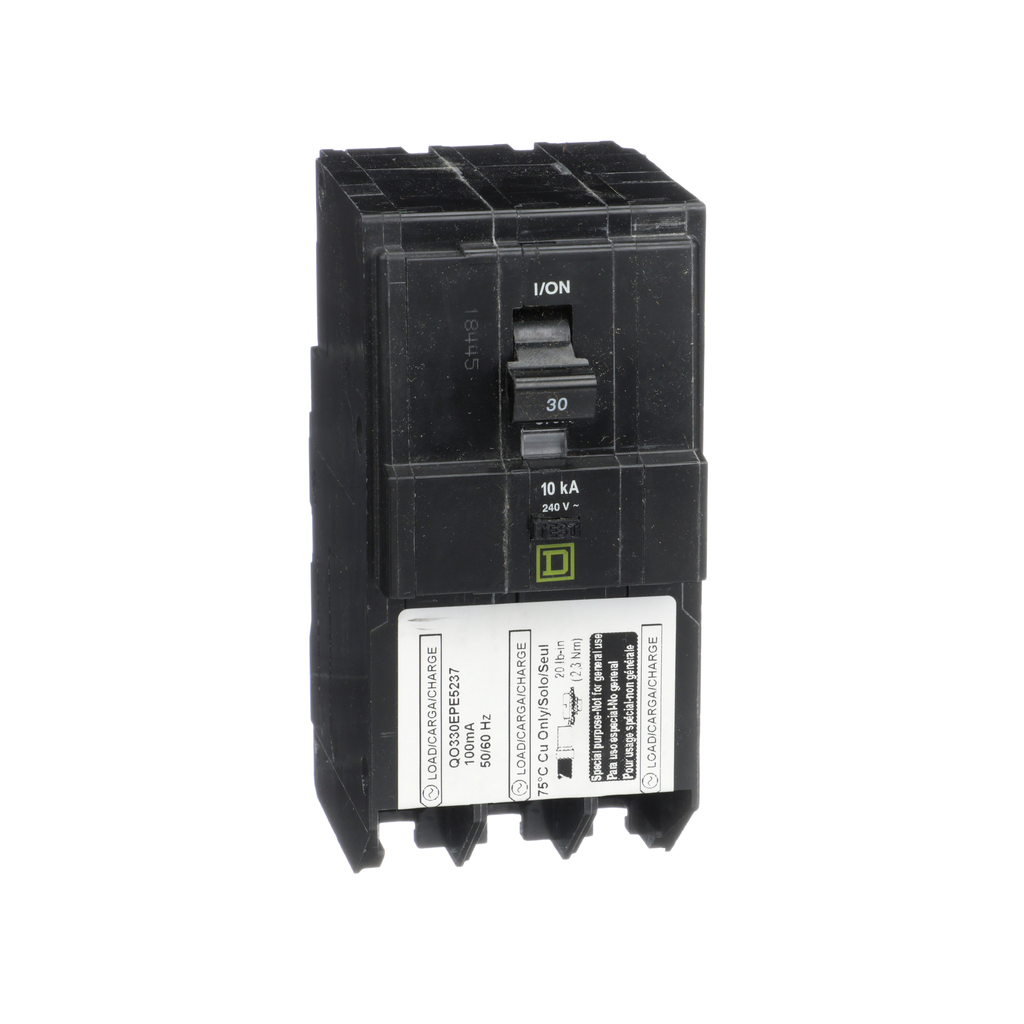

Mini circuit breaker, QO, 30A, 3 pole, 240VAC, 10kA, plug in, 100mA grd fault B, ring
QO and QOB one, two and three pole thermal magnetic circuit breakers provide overcurrent protection and switching on ac and dc systems. These circuit breakers have an over center, trip free toggle mechanism with quick make, quick break action and positive handle indication. They also have VisiTrip trip indication, which provides a visual indication that the circuit breaker has tripped and interrupted the circuit. A full line of features and factory installed accessories are also available such as shunt trips, auxiliary switches and alarm switches. This 3 pole QO circuit breaker is rated at 30A at 240VAC. This unit provides 10kA breaking capacity and plug in mounting. This product includes a 100mA ground fault B protection and ring terminals. QO circuit breakers are UL Listed under UL File E84967 and are CSA Certified under CSA Master Contract 153555.
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Product Certifications |
|
|---|---|
| Ambient Air Temperature For Operation | 40 °C |
| Warranty | 18 months |
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP2212005 |
| Sustainable Offer Status | Green Premium product |
| Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
| China Rohs Regulation | Product out of China RoHS scope. Substance declaration for your information. |
| Circularity Profile | ENVEOLI2212005 |
| Eu Rohs Directive | Compliant with Exemptions |
| Height | 105 mm |
| Tightening Torque |
|
| Number Of Spaces Required | 3 |
| Net Weight | 0.603 kg |
| Breaking Capacity | 10 kA 240 V AC |
| Awg Gauge |
|
| Width | 57 mm |
| Depth | 74 mm |
| Country of Origin | Mexico |
| Width | 57 mm |
| Height | 105 mm |
| Weight | 0.603 kg |
| Circuit Breaker Type | ground fault protecting class B 100 mA |
| Range Of Product | QO |
| Product Or Component Type | miniature circuit-breaker |
| Circuit Breaker Application | not rated |
| Mounting Mode | plug-in |
| Poles Description | 3P |
| Electrical Connection | ring tongue |
| Line Rated Current | 30 A |
| [Ue] Rated Operational Voltage | 240 V AC |
