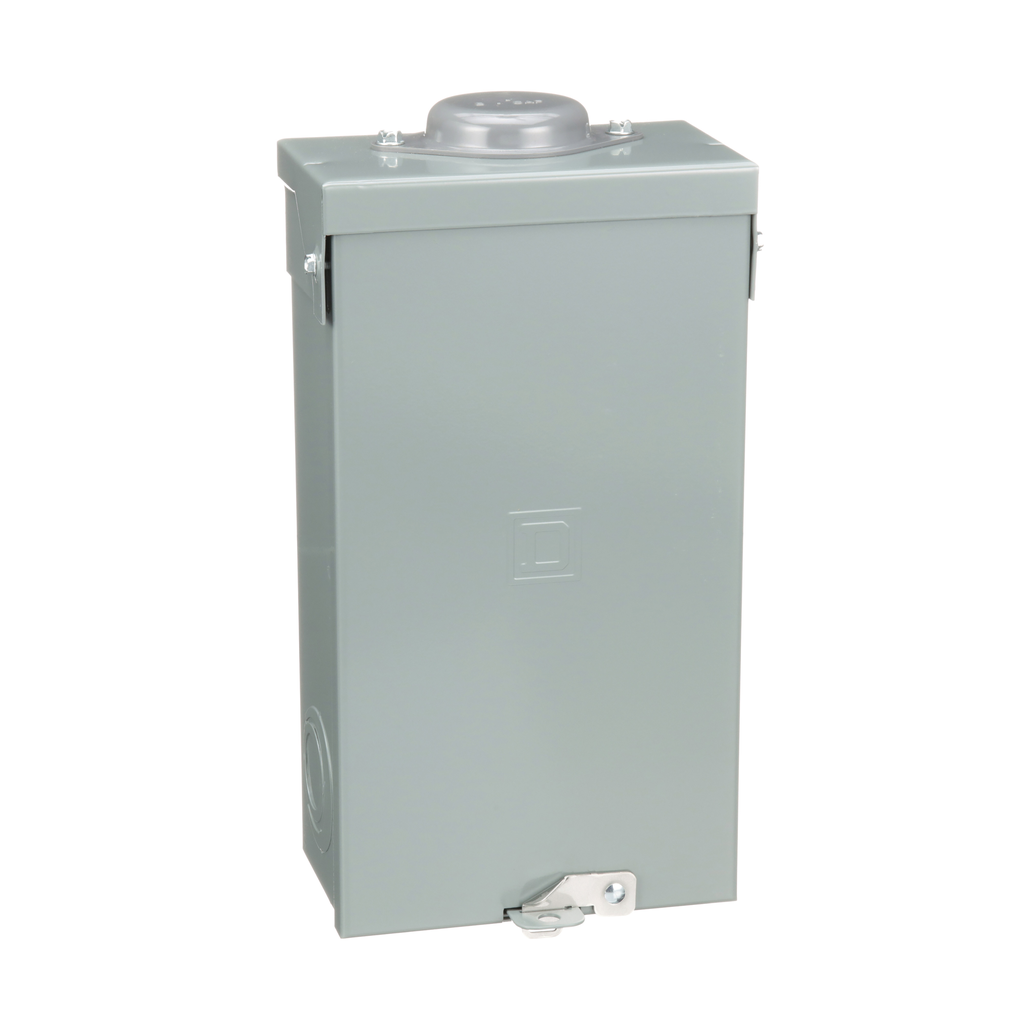

QO3100BNRB - Circuit breaker enclosure, QO, 3 phase, 3 spaces, 100A, NEMA3R, UL

QO3100BNRB

Circuit breaker enclosure, QO, 3 phase, 3 spaces, 100A, NEMA3R, UL

QO and QOB Circuit Breakers have one, two and three pole thermal magnetic circuit breakers provide overcurrent protection and switching on ac and dc systems. They are designed to meet residential, commercial, and industrial requirements to protect electrical systems, equipment, and people. These enclosures are rated for indoor or outdoor use, providing flexible applications.

Brand: Schneider Electric

Add to Quote Catalogue

Specifications

Rohs Exemption Information	Yes
Mercury Free	Yes
Environmental Disclosure	ENVPEP2212001
Sustainable Offer Status	Green Premium product
Toxic Heavy Metal Free	Yes
California Proposition 65	WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Reach Free Of Svhc	Yes
China Rohs Regulation	Pro-active China RoHS declaration (out of China RoHS legal scope)
Circularity Profile	N/A
Eu Rohs Directive	Compliant
Product Certifications	UL Listed CSA
Height	335 mm
Enclosure Type	enclosure
Number Of Spaces	3
Phase	3 phase
Cover Type	surface cover
Number Of Tandem Circuit Breakers	0
Ambient Air Temperature For Operation	-5 °C 40 °C
Line Rated Current	100 A
Enclosure Material	welded galvannealed steel
Width	176 mm
Depth	4.12 in
Device Composition	grounding bar (ordered separately)
Box Number	10R
Country of Origin	United States
Width	176 mm
Height	335 mm
Range Of Product	QO
Product Or Component Type	enclosure
Load Center Type	main lugs
Warranty	18 months
