QO2TR

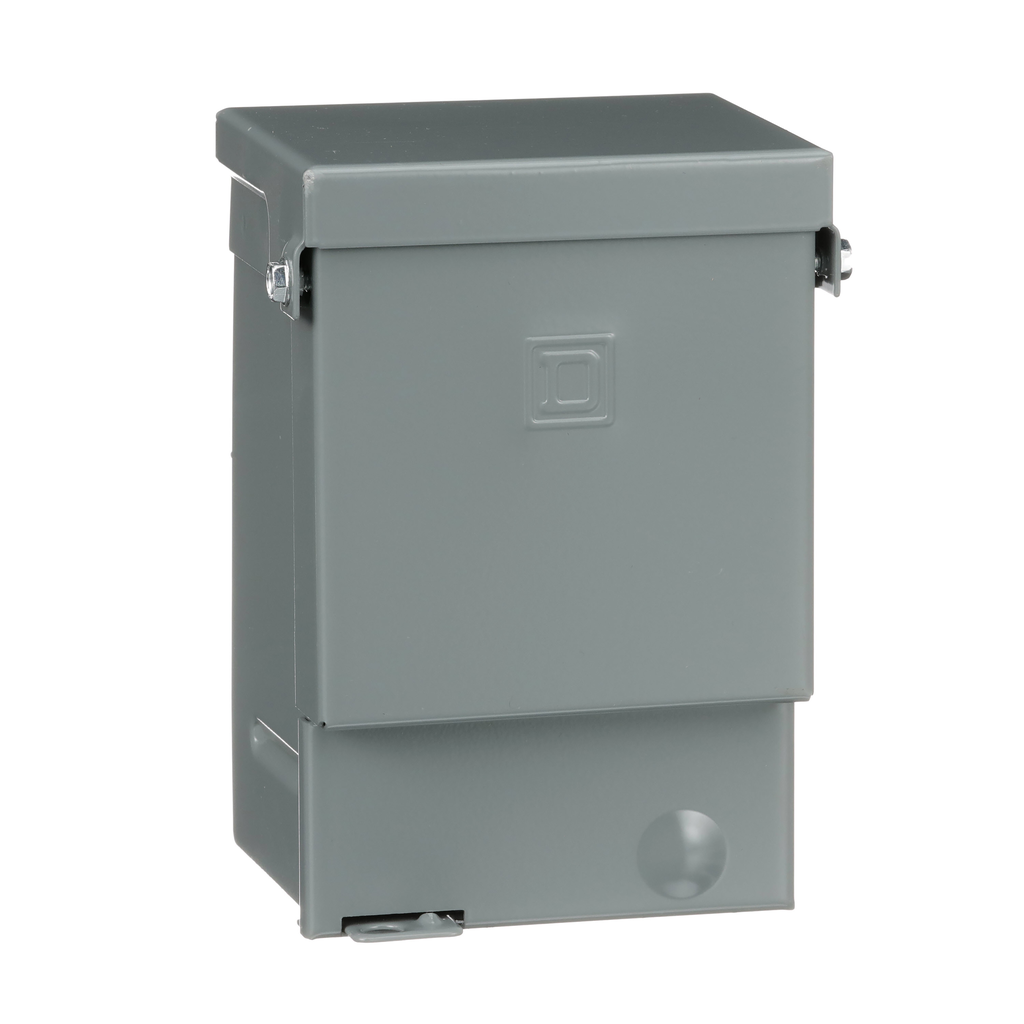

Circuit breaker enclosure, QO, 1 phase, 2 spaces, 60A, NEMA3R, UL
QO® Circuit Breaker Load Centers, QO2TR, from Square D® are Underwriters Laboratories (UL) Listed and CSA rated panelboards. They are designed to meet residential, commercial, and industrial requirements to protect electrical systems, equipment, and people. The short circuit current rating of the enclosed circuit breakers is equal to the rating of the circuit breaker installed unless otherwise noted. This is a Powerpact H and J Circuit Breaker enclosure can accept 3 pole circuit breakers that has a current rating of 15-250A and is NEMA 1 enclosure. This enclosure is for powerpact H and J frame breakers. This product comes with an 18 month warranty.
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Country of Origin | United States |
|---|---|
| Width | 116 mm |
| Height | 165 mm |
| Range Of Product | QO |
| Product Or Component Type | enclosure |
| Product Certifications | UL Listed |
| Height | 165 mm |
| Enclosure Type | enclosure |
| Number Of Circuits | 2 |
| Number Of Spaces | 2 |
| Phase | 1 phase |
| Cover Type | surface cover |
| Number Of Tandem Circuit Breakers | 0 |
| Line Rated Current | 60 A |
| Enclosure Material | welded galvannealed steel |
| Width | 116 mm |
| Wiring Configuration | 2-wire |
| Depth | 3.88 in |
| Device Composition | grounding bar (ordered separately) |
| Box Number | 9R |
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP2212001 |
| Sustainable Offer Status | Green Premium product |
| Toxic Heavy Metal Free | Yes |
| California Proposition 65 | WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
| Reach Free Of Svhc | Yes |
| China Rohs Regulation | Pro-active China RoHS declaration (out of China RoHS legal scope) |
| Circularity Profile | N/A |
| Eu Rohs Directive | Compliant |
| Warranty | 18 months |
