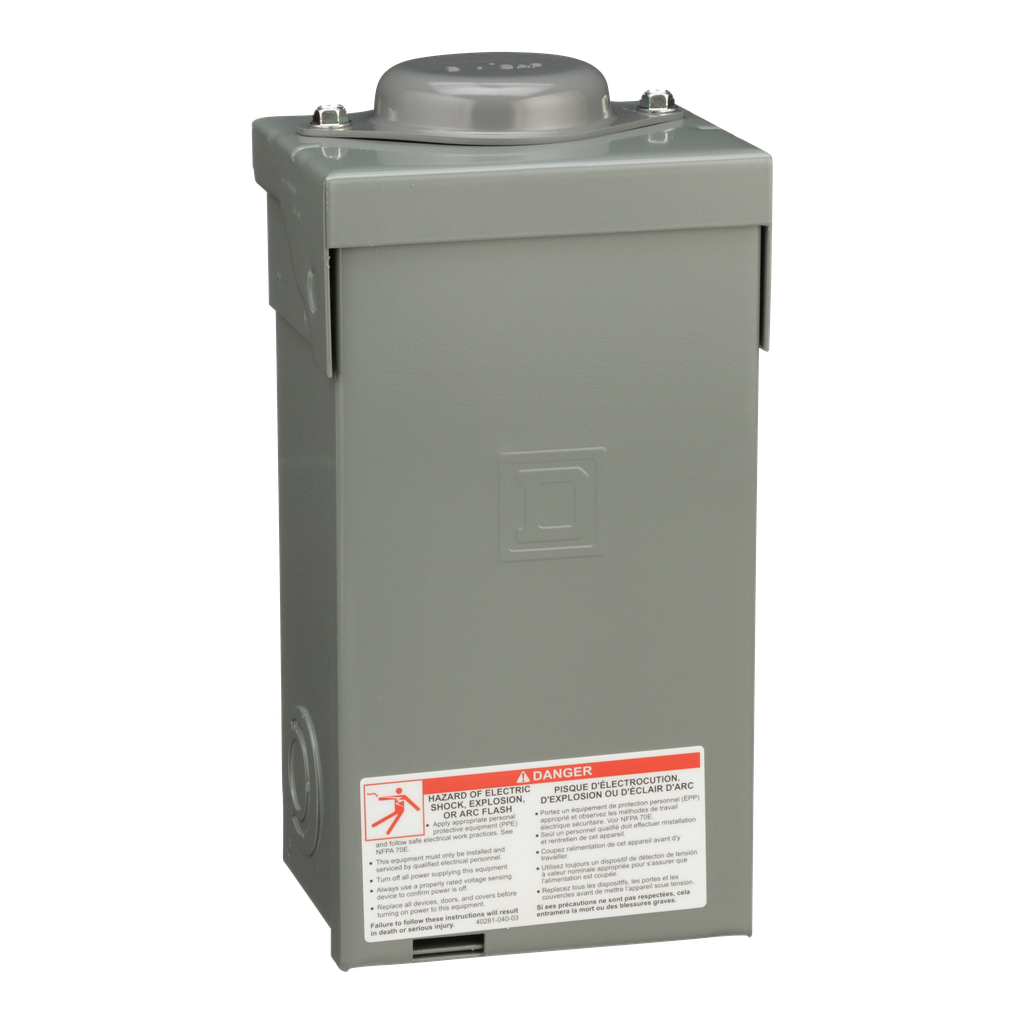

Load center, QO, 1 phase, 2 spaces, 2 circuits, 70A fixed main lugs, NEMA3R
QO Load Centers offer premium features by allowing QO breakers, ground fault interrupters, arc fault interrupters, and surge arresters to be installed inside. QO Load Centers are designed for residential and industrial use to protect electrical systems, equipment, and people. They are available in both traditional and plug on neutral configurations. There is 3 types of mains available. There is main circuit breaker, main lugs, and generator panel. Single and three phase options are available. The bus bars are tin plated copper and are shielded. Indoor and outdoors enclosures are an option. QO Load Centers enable the use of a full complement of accessories. This 1 phase load center has 2 spaces and 2 circuits. This system provides 70A fixed main lugs in a NEMA 3R enclosure. This product is UL rated.
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Product Certifications | cULus |
|---|---|
| Ambient Air Temperature For Operation |
|
| Nema Degree Of Protection | NEMA 3R weatherproof enclosure |
| Warranty | 18 months |
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP2212002 |
| Sustainable Offer Status | Green Premium product |
| California Proposition 65 | WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
| China Rohs Regulation | Product out of China RoHS scope. Substance declaration for your information. |
| Circularity Profile | N/A |
| Eu Rohs Directive | Compliant with Exemptions |
| Height | 236 mm |
| Phase | 1 phase 3 wires |
| [Ue] Rated Operational Voltage | 120/240 V AC |
| Electrical Connection | lugs |
| Number Of Circuits | 2 |
| Number Of Spaces | 2 |
| Net Weight | 2.300 kg |
| Short-Circuit Current | 10 kA |
| Number Of Tandem Circuit Breakers | 0 |
| Material | tin plated aluminium: busbar |
| Line Rated Current | 70 A |
| Enclosure Material | welded galvannealed steel |
| Width | 121 mm |
| Depth | 100 mm |
| Load Center Type | Fixed Mains (lugs) |
| Device Composition | grounding bar (ordered separately) |
| Country of Origin | United States |
| Width | 121 mm |
| Height | 236 mm |
| Weight | 2.300 kg |
| Range Of Product | QO |
| Product Or Component Type | Load Center |
| Cover Type | surface cover |
