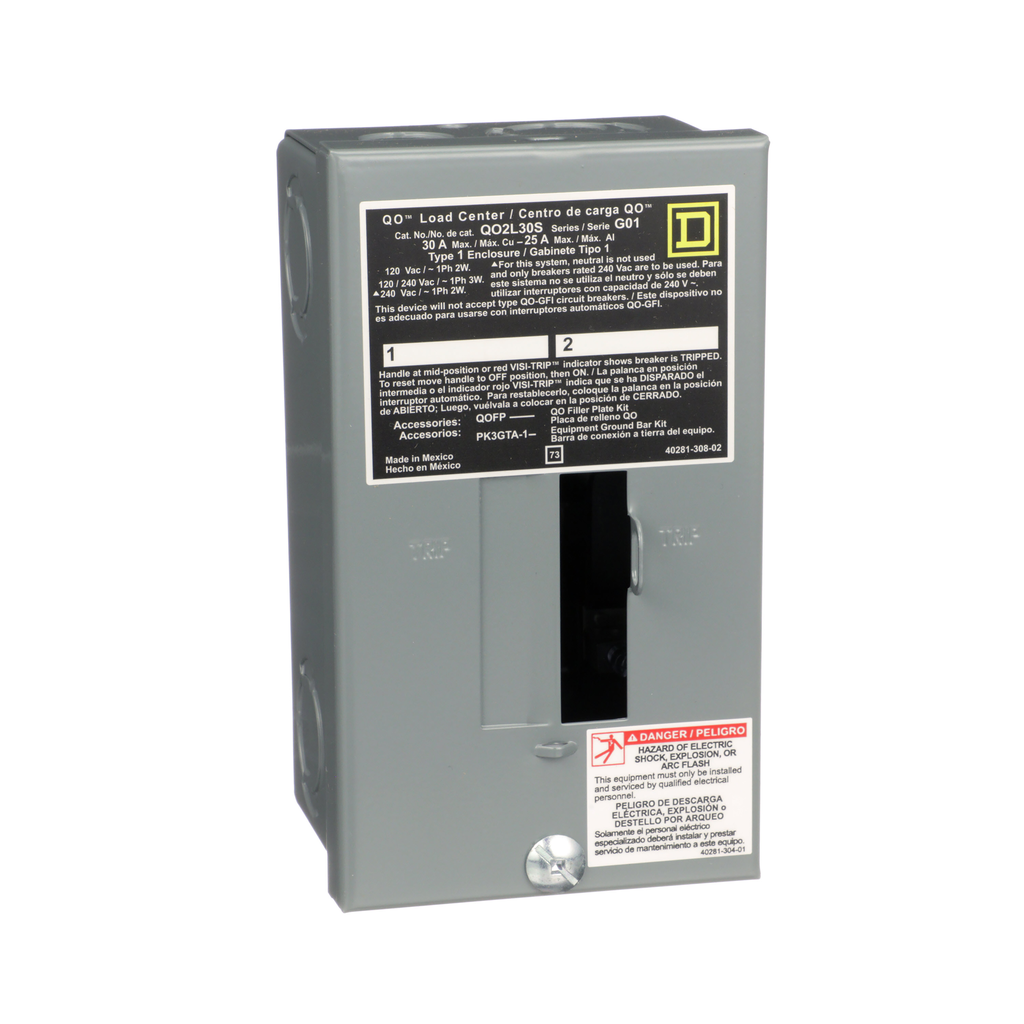

Load center, QO, 1 phase, 2 spaces, 2 circuits, 30A fixed main lugs, NEMA1, surface cover, consumer pack
QO Load Centers offer premium features by allowing QO breakers, ground fault interrupters, arc fault interrupters, and surge arresters to be installed inside. QO Load Centers are designed for residential and industrial use to protect electrical systems, equipment, and people. They are available in both traditional and plug on neutral configurations. There is 3 types of mains available. There is main circuit breaker, main lugs, and generator panel. Single and three phase options are available. The bus bars are tin plated copper and are shielded. Indoor and outdoors enclosures are an option. QO Load Centers enable the use of a full complement of accessories. This 1 phase load center has 2 spaces and 2 circuits. This system provides 30A fixed main lugs in a NEMA 1 enclosure. It also includes a surface cover, and is UL rated. This product is a consumer pack.
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Rohs Exemption Information | Yes |
|---|---|
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP2212002 |
| Sustainable Offer Status | Green Premium product |
| California Proposition 65 | WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
| China Rohs Regulation | Product out of China RoHS scope. Substance declaration for your information. |
| Circularity Profile | N/A |
| Eu Rohs Directive | Compliant with Exemptions |
| Country of Origin | Mexico |
| Width | 97 mm |
| Height | 171 mm |
| Range Of Product | QO |
| Product Or Component Type | Load Center |
| Type Of Packing | bulk |
| Cover Type | surface cover |
| Height | 171 mm |
| Phase | 1 phase 3 wires |
| Tightening Torque |
|
| Electrical Connection | lugs |
| Number Of Circuits | 2 |
| Number Of Spaces | 2 |
| Short-Circuit Current | 10 kA |
| Number Of Tandem Circuit Breakers | 0 |
| Material | tin plated aluminium: busbar |
| Surface Finish | baked enamel Gray |
| Line Rated Current | 30 A |
| Enclosure Material | welded sheet steel |
| Awg Gauge |
|
| Width | 97 mm |
| Depth | 79 mm |
| Load Center Type | Fixed Mains (lugs) |
| Device Composition | grounding bar (ordered separately) |
| Box Number | 1 |
| Product Certifications | UL Listed |
| Ambient Air Temperature For Operation |
|
| Nema Degree Of Protection | NEMA 1 indoor enclosure |
