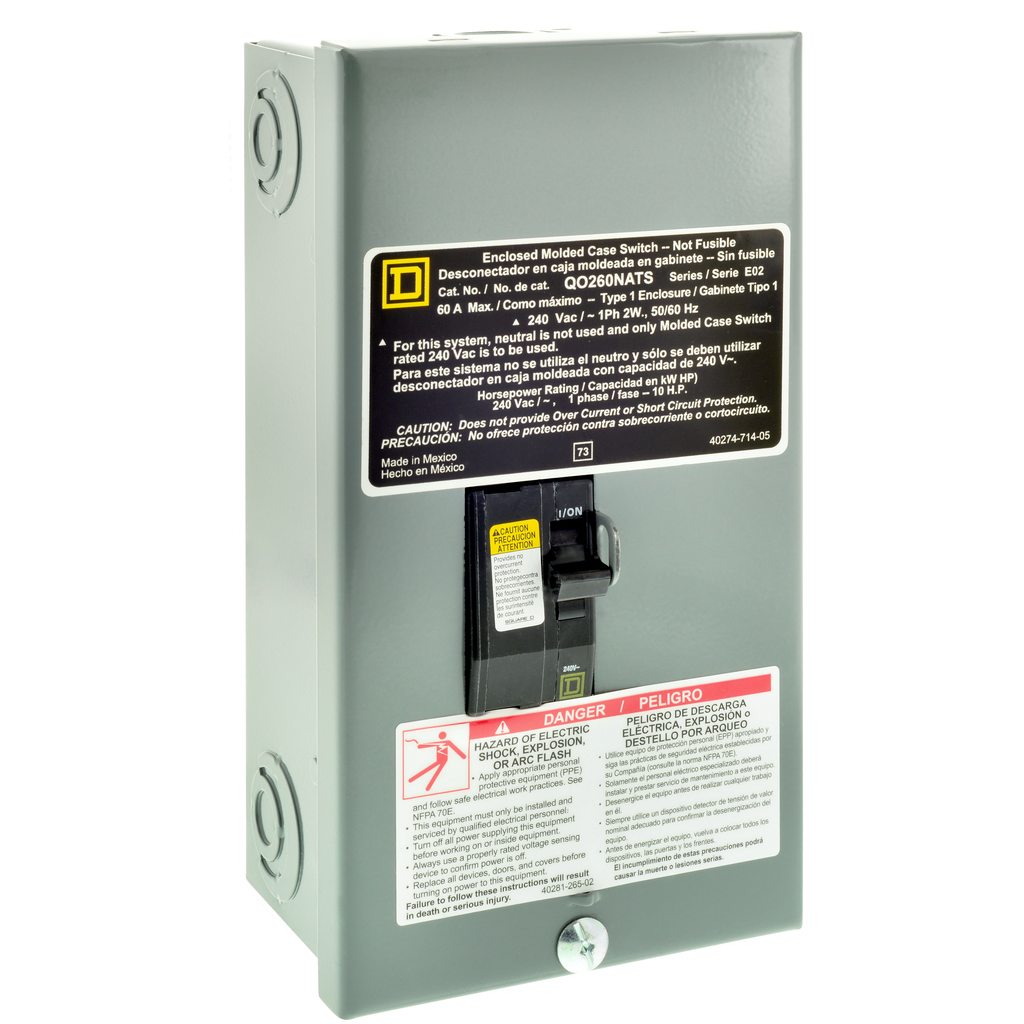

QO260NATS
Enclosed molded case switch, QO, 60A, 2 pole, 240VAC, 22kA, NEMA 1
Enclosed Devices are designed for reliability and safety. Indoor NEMA type 1 and outdoor NEMA type 3R options are available. Enclosed Devices provide an easy installation for residential and commercial air conditioning systems and other single phase applications. Metallic and non-metallic enclosure options are available as well. This molded case switch is 60A and 2 pole. It has 22kA rating, 240VAC, and NEMA 1. This product is UL listed.
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Product Certifications | UL Listed |
|---|---|
| Height | 240 mm |
| Net Weight | 1.840 kg |
| Ambient Air Temperature For Operation | 40 °C |
| Line Rated Current | 60 A |
| Width | 125 mm |
| Depth | 81 mm |
| Country of Origin | Mexico |
| Width | 125 mm |
| Height | 240 mm |
| Weight | 1.840 kg |
| Range Of Product | QO |
| Product Or Component Type | enclosed molded case switch |
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| California Proposition 65 | WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
| China Rohs Regulation | Product out of China RoHS scope. Substance declaration for your information. |
| Eu Rohs Directive | Compliant with Exemptions |
| Warranty | 18 months |
Documents
- Square D Safety Switch User Manual - GEX75737 (pdf)
- 60 A General Duty Safety Switch Installation Instructions - 40272-270-02 (pdf)
- QO Load Centers and Circuit Breakers Brochure - 1100BR1201 (pdf)
- Square D Combination AFCI Circuit Breakers Brochure - 0700BR1202 (pdf)
- Small and medium project solutions, available now - brochure - 998-21381316_GMA-US_Small+and+medium+project+solutions+available+now (pdf)
- A Guide to Your Square D Electrical Distribution System - Brochure - 0102BR0201 (pdf)
- Spec Sheet
- Square D QO and Homeline Load Centers and Enclosures Catalog - 1100CT0501 (pdf)
- Digest Catalog 01: Load Centers - 0100CT1901_SEC-01 (pdf)
- Square D Enclosed Safety Switches Catalog - 3100CT1602 (pdf)
- Digest Catalog 03: Safety Switches - 0100CT1901_SEC-03 (pdf)
- Load Centers: Section 1 - Digest 179 (2024) - Load-Centers-CSEDs-Digest-Catalog-0100CT2401-SEC-01 (pdf)
