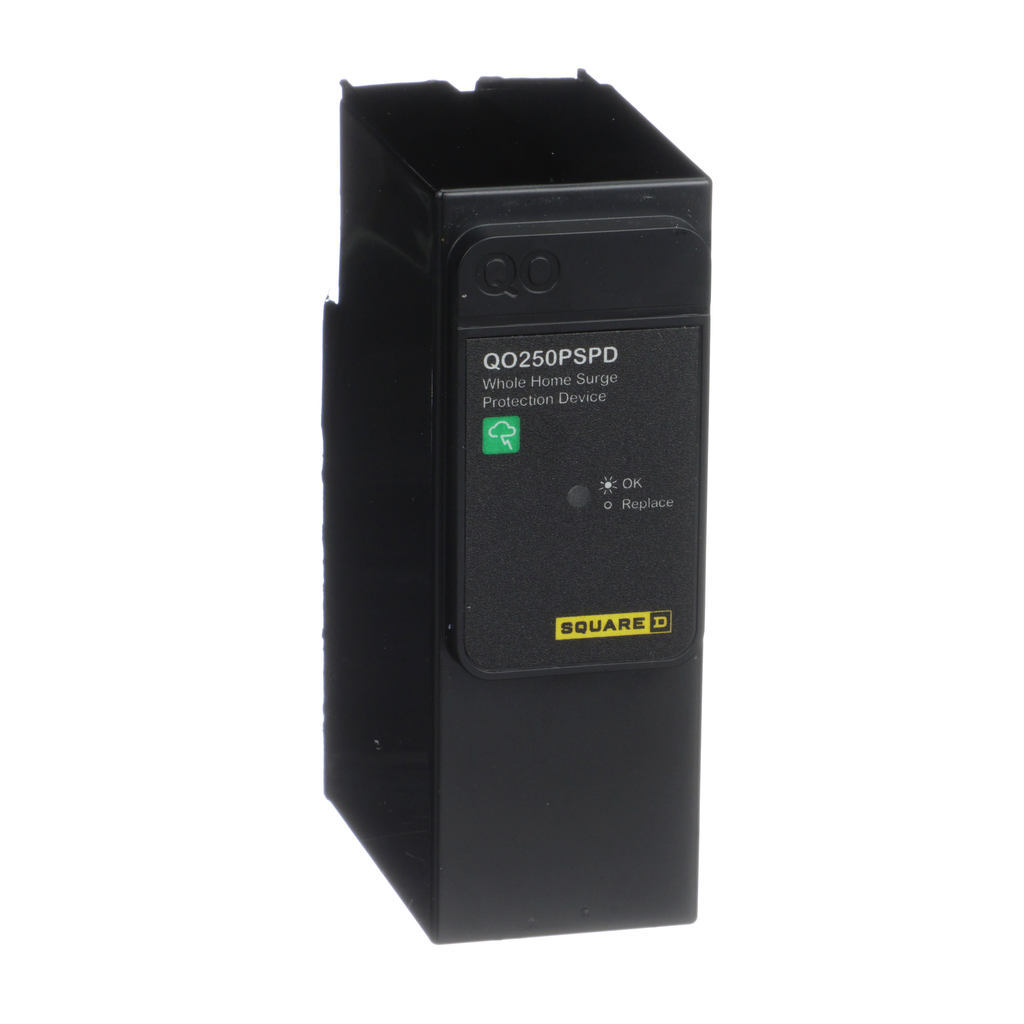

Surge protection device, QO, whole home, 50kA, 120/240 VAC, 1 phase, 3 wire, SPD type 1
QO Load Centers offer premium features by allowing QO breakers, ground fault interrupters, arc fault interrupters, and surge arresters to be installed inside. QO Load Centers enable the use of a full complement of accessories. Systems are single phase and are rated for indoor use or are rain proof. QO Load Centers are designed for residential and industrial use to protect electrical systems, equipment, and people. This is a plug on neutral surge protective device for QO Load Centers. It is designed to protect electrical service and major household appliances, excluding electronic devices. Designed for 3 wire 120/240VAC single phase systems. This surge protection device is rated at 50 kA per phase. This surge protection device is UL Listed.
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Height | 101 mm |
|---|---|
| Connections - Terminals | plug in phase and neutral |
| Surge Current | 50 kA |
| Nominal Discharge Current | 20 kA |
| Phase | 1 phase |
| Product Destination | load center QO plug-on neutral |
| Short-Circuit Protection | 22 kA |
| [Uc] Maximum Continuous Operating Voltage | 150 V |
| Width | 38 mm |
| Wiring Configuration | 3-wire |
| Depth | 66 mm |
| [Ue] Rated Operational Voltage | 120/240 V AC |
| Country of Origin | Mexico |
| Width | 38 mm |
| Height | 101 mm |
| Range Of Product | QO |
| Product Or Component Type | surge protection device |
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP1706015EN |
| Sustainable Offer Status | Green Premium product |
| Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
| California Proposition 65 | WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
| China Rohs Regulation | Product out of China RoHS scope. Substance declaration for your information. |
| Circularity Profile | ENVEOLI1706015EN |
| Eu Rohs Directive | Compliant with Exemptions |
| Ambient Air Temperature For Operation | 65-65 °C |
| Standards |
|
| Nema Degree Of Protection | NEMA 2 |
| Enclosure Material | Black Plastic |
