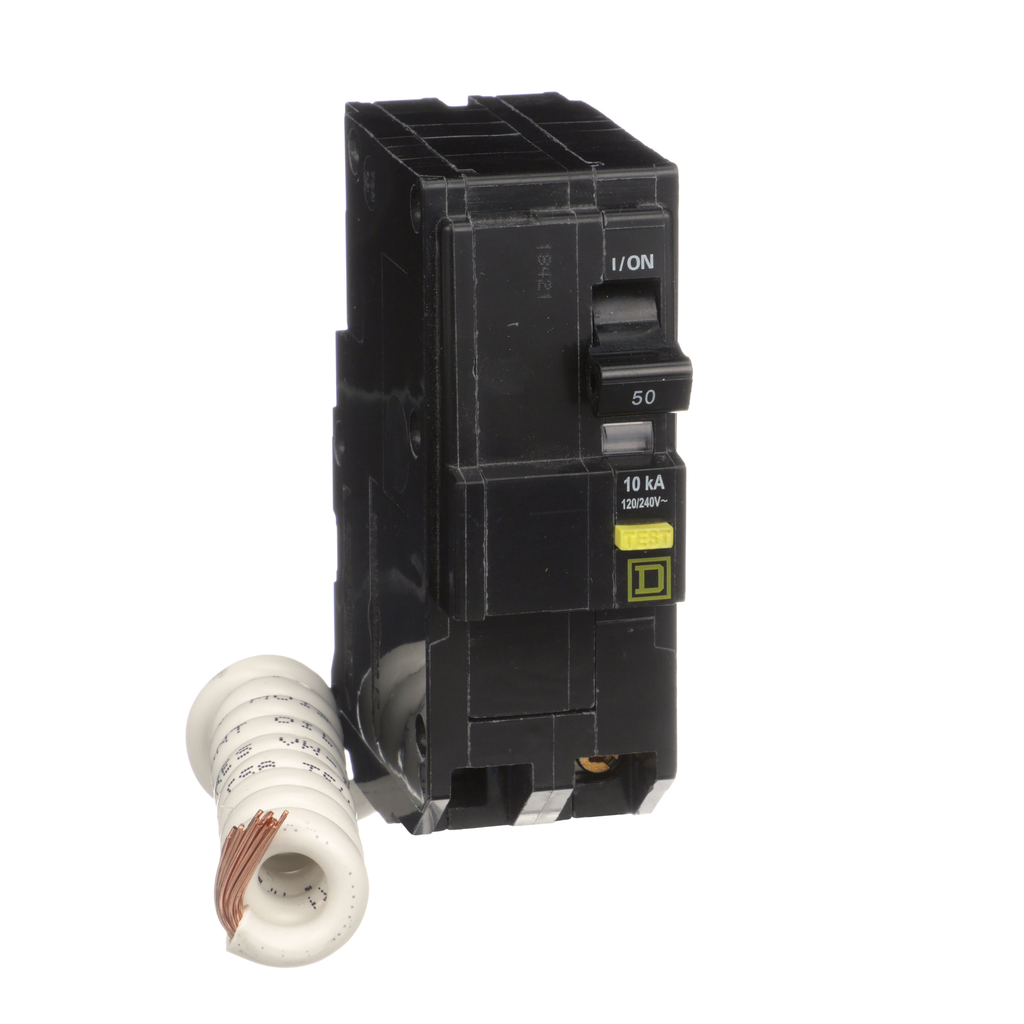

Mini circuit breaker, QO, 50A, 2 pole, 120/240VAC, 10kA, plug in, 6mA grd fault A, pigtail, clam
QO and QOB one, two and three pole thermal magnetic circuit breakers provide overcurrent protection and switching on ac and dc systems. These circuit breakers have an over center, trip free toggle mechanism with quick make, quick break action and positive handle indication. They also have VisiTrip trip indication, which provides a visual indication that the circuit breaker has tripped and interrupted the circuit. A full line of features and factory installed accessories are also available such as shunt trips, auxiliary switches and alarm switches. This 2 pole QO circuit breaker is rated at 50A at 120/240VAC. This unit provides 10kA breaking capacity and plug in mounting. This product includes a 6mA ground fault A with pigtail. QO circuit breakers are UL Listed under UL File E84967 and are CSA Certified under CSA Master Contract 153555. This product is in clam packaging.
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Product Certifications |
|
|---|---|
| Ambient Air Temperature For Operation | 40 °C |
| Warranty | 18 months |
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP2212005 |
| Sustainable Offer Status | Green Premium product |
| Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
| California Proposition 65 | WARNING: This product can expose you to chemicals including: DINP, which is known to the State of California to cause cancer, and DIDP, which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
| China Rohs Regulation | Product out of China RoHS scope. Substance declaration for your information. |
| Circularity Profile | ENVEOLI2212005 |
| Eu Rohs Directive | Compliant with Exemptions |
| Height | 105 mm |
| Tightening Torque |
|
| Number Of Spaces Required | 2 |
| Net Weight | 0.499 kg |
| Breaking Capacity |
|
| Awg Gauge |
|
| Width | 38 mm |
| Depth | 74 mm |
| Country of Origin | United States |
| Width | 38 mm |
| Height | 105 mm |
| Weight | 0.499 kg |
| Circuit Breaker Type | ground fault protecting class A 6 mA |
| Range Of Product | QO |
| Product Or Component Type | miniature circuit-breaker |
| Type Of Packing | clam packaging |
| Circuit Breaker Application | not rated |
| Mounting Mode | plug-in |
| Poles Description | 2P |
| Electrical Connection | box lugs |
| Line Rated Current | 50 A |
| [Ue] Rated Operational Voltage |
|
