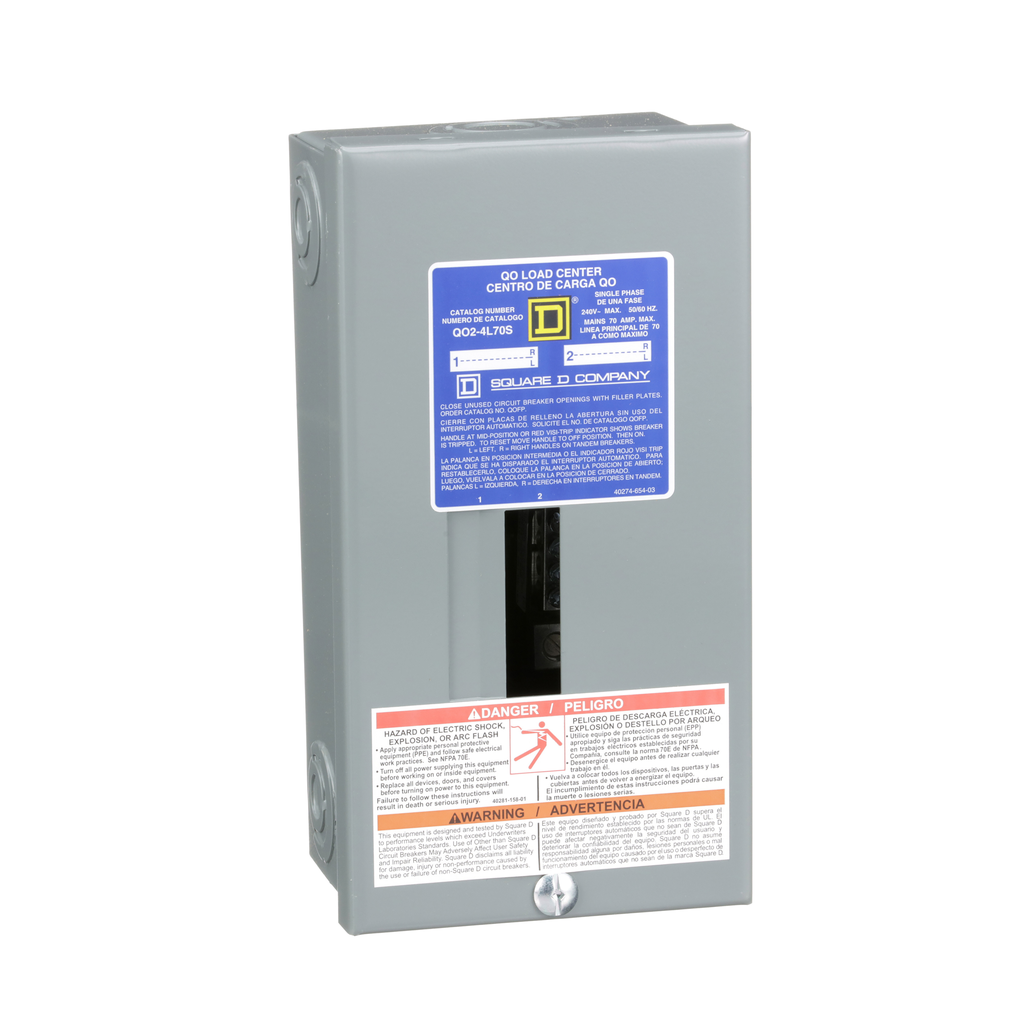

QO24L70S - Load center, QO, 1 phase, 2 spaces, 4 circuits, 70A fixed main lugs, NEMA1, surface cover

QO24L70S

Load center, QO, 1 phase, 2 spaces, 4 circuits, 70A fixed main lugs, NEMA1, surface cover

QO Load Centers offer premium features by allowing QO breakers, ground fault interrupters, arc fault interrupters, and surge arresters to be installed inside. QO Load Centers are designed for residential and industrial use to protect electrical systems, equipment, and people. They are available in both traditional and plug on neutral configurations. There is 3 types of mains available. There is main circuit breaker, main lugs, and generator panel. Single and three phase options are available. The bus bars are tin plated copper and are shielded. Indoor and outdoors enclosures are an option. QO Load Centers enable the use of a full complement of accessories. This 1 phase load center has 2 spaces and 4 circuits. This system provides 70A fixed main lugs in a NEMA 1 enclosure. It also includes a surface cover, and is UL rated. QO load center is UL Listed.

Brand: Schneider Electric

Add to Quote Catalogue

Specifications

Product Certifications	UL Listed
Ambient Air Temperature For Operation	-5 °C 40 °C
Nema Degree Of Protection	NEMA 1 indoor enclosure
Warranty	18 months
Rohs Exemption Information	Yes
Mercury Free	Yes
Environmental Disclosure	ENVPEP2212002
Sustainable Offer Status	Green Premium product
California Proposition 65	WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
China Rohs Regulation	Product out of China RoHS scope. Substance declaration for your information.
Circularity Profile	N/A
Eu Rohs Directive	Compliant with Exemptions
Height	236 mm
Phase	1 phase 3 wires
Tightening Torque	main lugs 35 lb.in, AWG 14...AWG 10, aluminium/copper main lugs 45 lb.in, AWG 3, aluminium/copper main lugs 40 lb.in, AWG 8...AWG 4, aluminium/copper main lugs 35 lb.in, AWG 12...AWG10, aluminium/copper
[Ue] Rated Operational Voltage	120/240 V AC
Electrical Connection	lugs
Number Of Circuits	4
Number Of Spaces	2
Short-Circuit Current	65 kA
Number Of Tandem Circuit Breakers	2
Material	tin plated aluminium: busbar
Surface Finish	baked enamel Gray
Line Rated Current	70 A
Enclosure Material	welded sheet steel
Awg Gauge	AWG 12...AWG 3 aluminium AWG 14...AWG 4 copper
Width	122 mm
Load Center Type	Fixed Mains (lugs)
Device Composition	grounding bar (ordered separately)
Box Number	2
Country of Origin	Mexico
Width	122 mm
Height	236 mm
Range Of Product	QO
Product Or Component Type	Load Center
Cover Type	surface cover

Load center, QO, 1 phase, 2 spaces, 4 circuits, 70A fixed main lugs, NEMA1, surface cover
