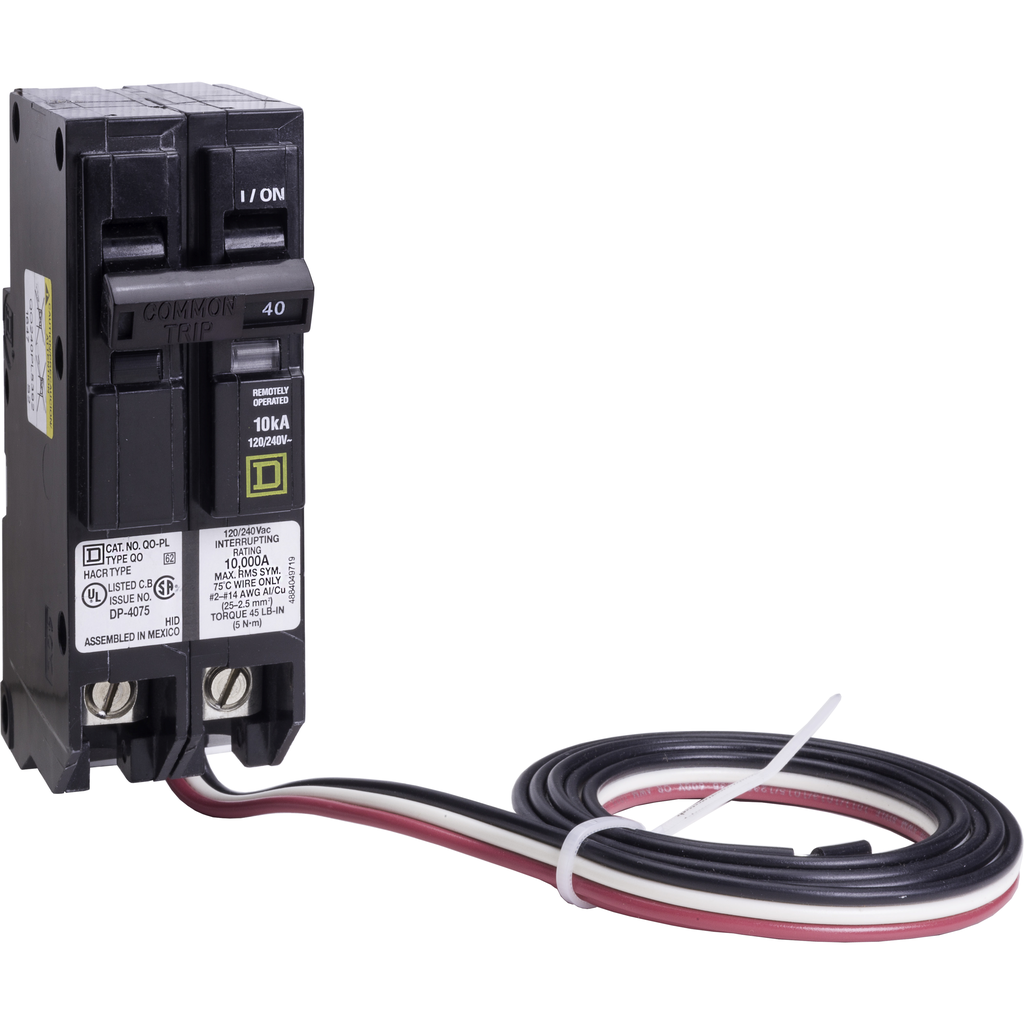

Mini circuit breaker, QO, 40A, 2 pole, 120/240VAC, 10kA, plug in, Powerlink, 48in leads
QO and QOB one, two and three pole thermal magnetic circuit breakers provide overcurrent protection and switching on ac and dc systems. These circuit breakers have an over center, trip free toggle mechanism with quick make, quick break action and positive handle indication. They also have VisiTrip trip indication, which provides a visual indication that the circuit breaker has tripped and interrupted the circuit. A full line of features and factory installed accessories are also available such as shunt trips, auxiliary switches and alarm switches. This 2 pole QO circuit breaker is rated at 40A at 120/240VAC. This unit provides 10kA breaking capacity and plug in mounting. This product has a Powerlink feature and 48in leads. QO circuit breakers are UL Listed under UL File E84967 and are CSA Certified under CSA Master Contract 153555.
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Product Certifications |
|
|---|---|
| Ambient Air Temperature For Operation | 40 °C |
| Warranty | 18 months |
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Sustainable Offer Status | Green Premium product |
| California Proposition 65 | WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov |
| China Rohs Regulation | Product out of China RoHS scope. Substance declaration for your information. |
| Circularity Profile | N/A |
| Eu Rohs Directive | Compliant with Exemptions |
| Halogen Content Performance | Halogen free product |
| Height | 116 mm |
| Tightening Torque | 5-5 N.m |
| Provided Equipment | 48 in lead |
| Number Of Spaces Required | 2 |
| Net Weight | 0.413 kg |
| Breaking Capacity |
|
| Awg Gauge |
|
| Width | 38 mm |
| Depth | 74 mm |
| Country of Origin | Mexico |
| Width | 38 mm |
| Height | 116 mm |
| Weight | 0.413 kg |
| Circuit Breaker Type | standard |
| Range Of Product | QO |
| Product Or Component Type | miniature circuit-breaker |
| Circuit Breaker Application | HACR rated |
| Mounting Mode | plug-in |
| Poles Description | 2P |
| Electrical Connection | box lugs |
| Line Rated Current | 40 A |
| [Ue] Rated Operational Voltage |
|
