QO2125BNS

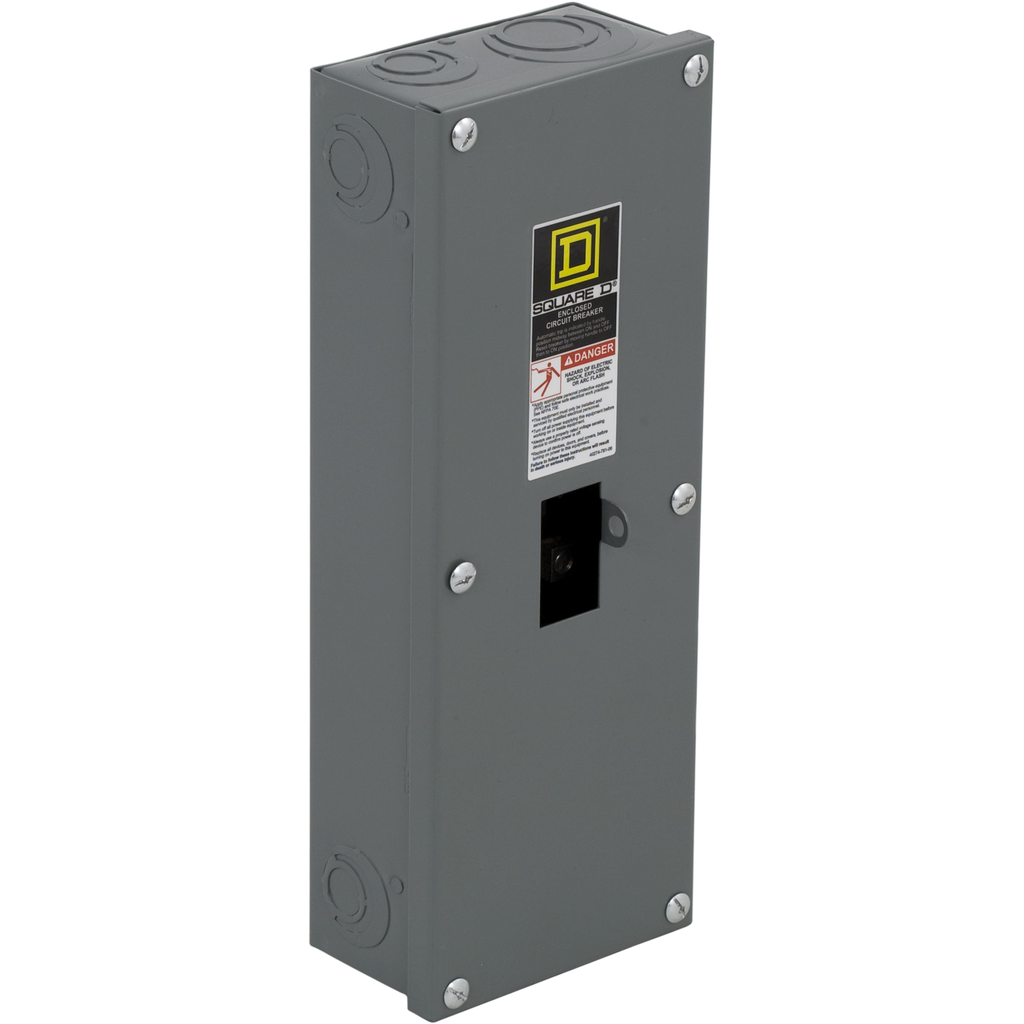

Circuit breaker enclosure, QO, 1 phase, 2 spaces, 125A, NEMA1, surface cover, UL
Specifications
| Rohs Exemption Information | Yes |
|---|---|
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP2212001 |
| Sustainable Offer Status | Green Premium product |
| Toxic Heavy Metal Free | Yes |
| California Proposition 65 | WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
| Reach Free Of Svhc | Yes |
| China Rohs Regulation | Pro-active China RoHS declaration (out of China RoHS legal scope) |
| Circularity Profile | N/A |
| Eu Rohs Directive | Compliant |
| Country of Origin | Mexico |
| Width | 149 mm |
| Height | 409 mm |
| Range Of Product | QO |
| Product Or Component Type | enclosure |
| Product Certifications | UL Listed |
| Height | 409 mm |
| Enclosure Type | enclosure |
| Number Of Circuits | 2 |
| Number Of Spaces | 2 |
| Phase | 1 phase |
| Cover Type | surface cover |
| Number Of Tandem Circuit Breakers | 0 |
| Line Rated Current | 125 A |
| Enclosure Material | welded sheet steel |
| Wiring Configuration | 3-wire |
| Width | 149 mm |
| Depth | 3.4 in |
| Device Composition | grounding bar (ordered separately) |
| Box Number | 18 |
| Warranty | 18 months |
