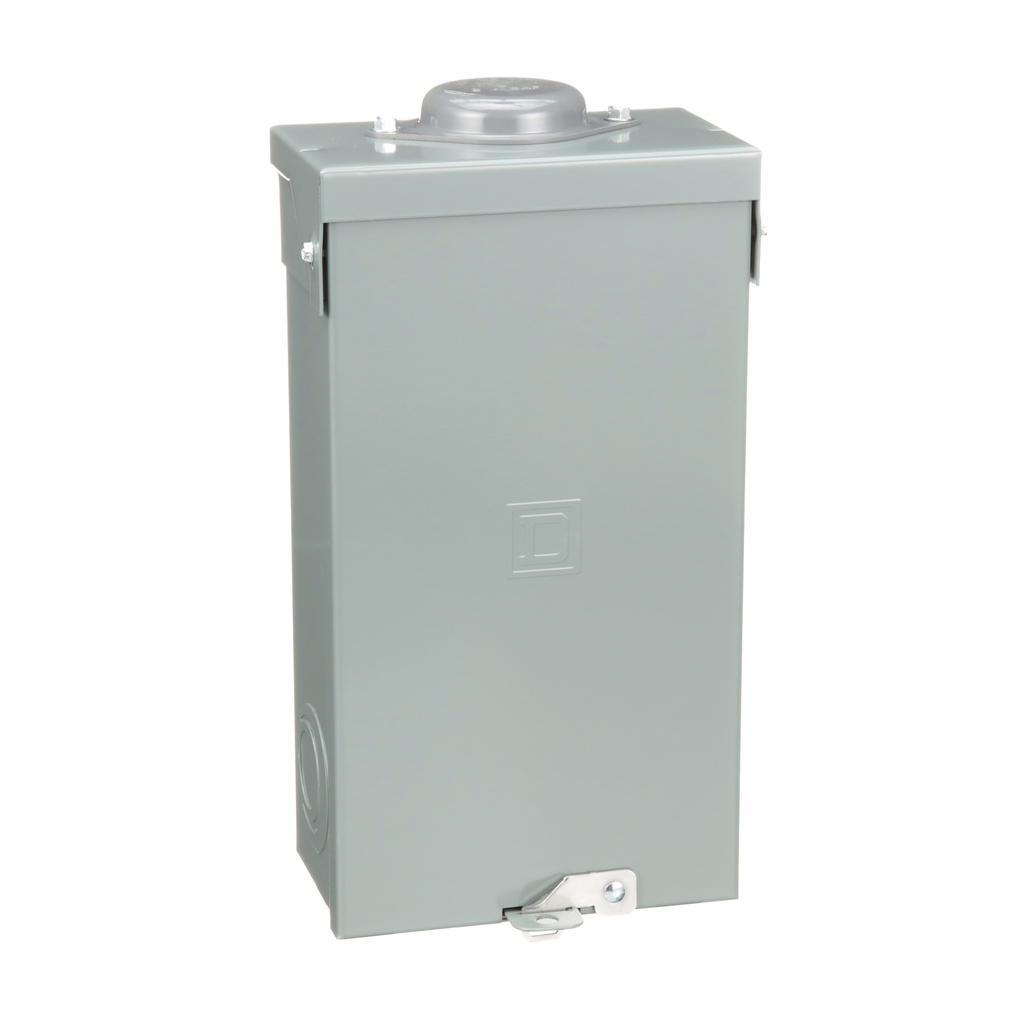

QO2100BNRB
Circuit breaker enclosure, QO, 1 phase, 2 spaces, 100A, NEMA3R, UL
QO and QOB Circuit Breakers have one, two and three pole thermal magnetic circuit breakers provide overcurrent protection and switching on ac and dc systems. They are designed to meet residential, commercial, and industrial requirements to protect electrical systems, equipment, and people. These enclosures are rated for indoor or outdoor use, providing flexible applications.
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Rohs Exemption Information | Yes |
|---|---|
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP2212001 |
| Sustainable Offer Status | Green Premium product |
| Toxic Heavy Metal Free | Yes |
| California Proposition 65 | WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
| Reach Free Of Svhc | Yes |
| China Rohs Regulation | Pro-active China RoHS declaration (out of China RoHS legal scope) |
| Circularity Profile | N/A |
| Eu Rohs Directive | Compliant |
| Product Certifications | UL Listed |
| Height | 335 mm |
| Enclosure Type | enclosure |
| Number Of Circuits | 2 |
| Number Of Spaces | 2 |
| Phase | 1 phase |
| Number Of Tandem Circuit Breakers | 0 |
| Line Rated Current | 100 A |
| Enclosure Material | welded galvannealed steel |
| Width | 176 mm |
| Wiring Configuration | 3-wire |
| Depth | 4.12 in |
| Device Composition | grounding bar (ordered separately) |
| Box Number | 10R |
| Country of Origin | United States |
| Width | 176 mm |
| Height | 335 mm |
| Range Of Product | QO |
| Product Or Component Type | enclosure |
| Warranty | 18 months |
