QO200TR

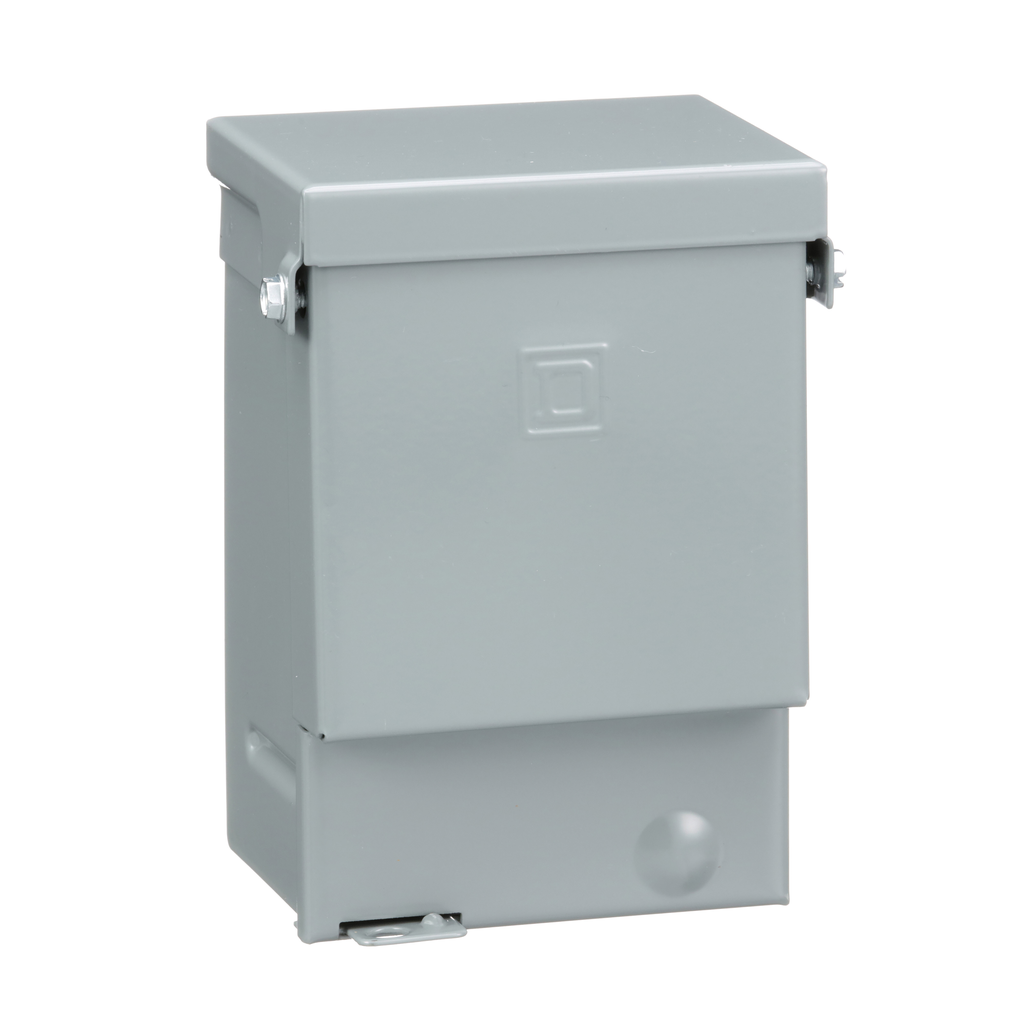

Enclosed molded case switch, QO, 60A, 2 pole, 240VAC, 22kA, air conditioning, NEMA 3R
Enclosed Devices are designed for reliability and safety. Indoor NEMA type 1 and outdoor NEMA type 3R options are available. Enclosed Devices provide an easy installation for residential and commercial air conditioning systems and other single phase applications. Metallic and non-metallic enclosure options are available as well. This molded case switch is 60A and 2 pole. It has 22kA rating, 240VAC, and NEMA 3R. This unit is used with air conditioning systems. This product is UL listed.
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Product Certifications | UL Listed |
|---|---|
| Height | 165 mm |
| Phase | 1 phase |
| Net Weight | 1.361 kg |
| Type Of Installation | enclosed outdoor |
| Ambient Air Temperature For Operation | 40 °C |
| Line Rated Current | 60 A |
| Width | 118 mm |
| Depth | 99 mm |
| Country of Origin | United States |
| Width | 118 mm |
| Height | 165 mm |
| Weight | 1.361 kg |
| Range Of Product | QO |
| Product Or Component Type |
|
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP2212001 |
| Sustainable Offer Status | Green Premium product |
| Toxic Heavy Metal Free | Yes |
| California Proposition 65 | WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
| Reach Free Of Svhc | Yes |
| China Rohs Regulation | Pro-active China RoHS declaration (out of China RoHS legal scope) |
| Circularity Profile | N/A |
| Eu Rohs Directive | Compliant |
| Warranty | 18 months |
