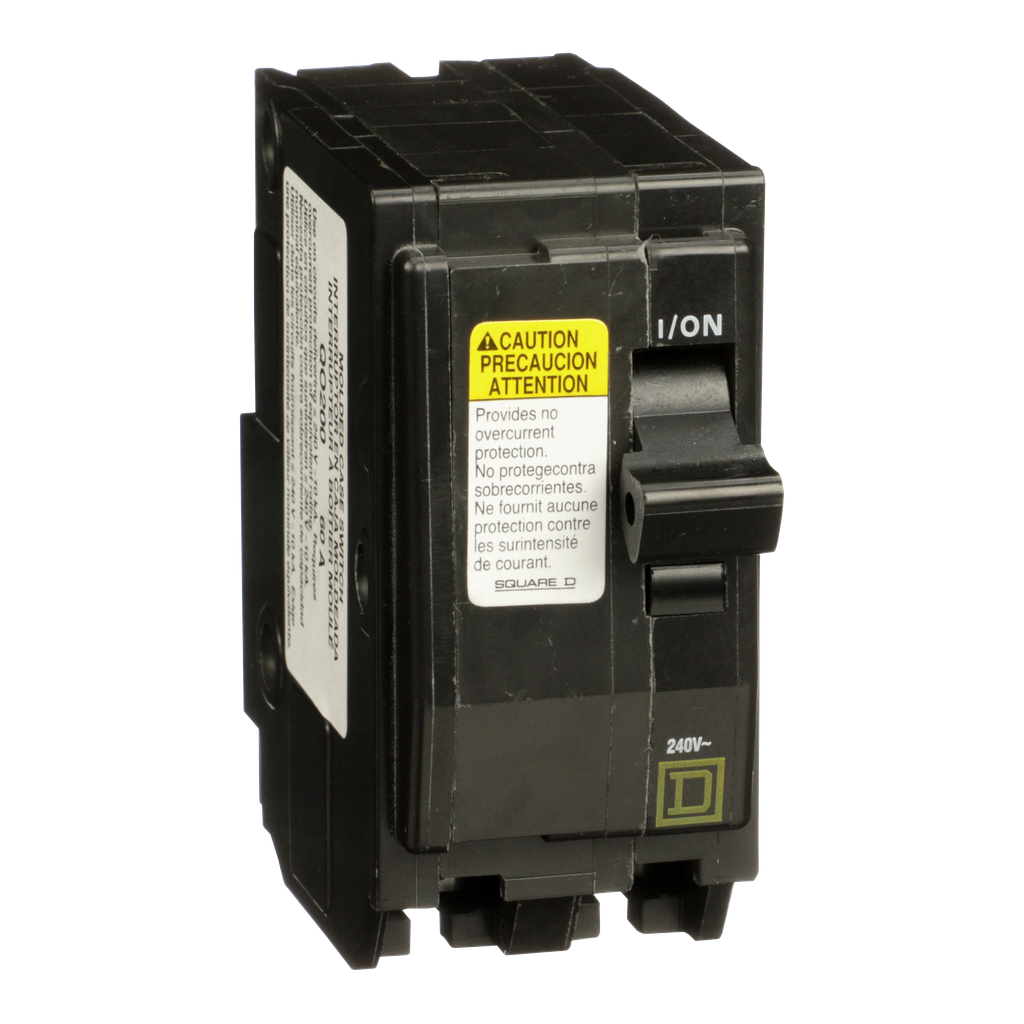

Mini switch, QO, 60A, 2 pole, 240VAC, 10kA, plug in
QO and QOB one, two and three pole thermal magnetic circuit breakers provide overcurrent protection and switching on ac and dc systems. These circuit breakers have an over center, trip free toggle mechanism with quick make, quick break action and positive handle indication. They also have VisiTrip trip indication, which provides a visual indication that the circuit breaker has tripped and interrupted the circuit. A full line of features and factory installed accessories are also available such as shunt trips, auxiliary switches and alarm switches. This 2 pole QO mini switch is rated at 60A at 240VAC. This unit provides 10kA breaking capacity and plug in mounting. QO and QOB miniature switches are UL listed under UL file E33117 and are CSA certified under file 025490_S_000 class 465204.
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Product Certifications |
|
|---|---|
| Warranty | 18 months |
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Sustainable Offer Status | Green Premium product |
| Toxic Heavy Metal Free | Yes |
| China Rohs Regulation | Product out of China RoHS scope. Substance declaration for your information. |
| Circularity Profile | N/A |
| Eu Rohs Directive | Compliant with Exemptions |
| Halogen Content Performance | Halogen free product |
| Height | 79 mm |
| Tightening Torque | 5-5 N.m 10-25 mm² (AWG 8...AWG 2) |
| Number Of Spaces Required | 2 |
| Net Weight | 0.245 kg |
| Breaking Capacity | 10 kA 240 V AC |
| Awg Gauge | AWG 8...AWG 2 copper or aluminium |
| Width | 38 mm |
| Depth | 74 mm |
| Country of Origin | Mexico |
| Width | 38 mm |
| Height | 79 mm |
| Weight | 0.245 kg |
| Range Of Product | QO |
| Product Or Component Type | switch |
| Mounting Mode | plug-in |
| Poles Description | 2P |
| Electrical Connection | box lugs |
| Line Rated Current | 60 A |
| [Ue] Rated Operational Voltage | 240 V AC |
