QO1PAF

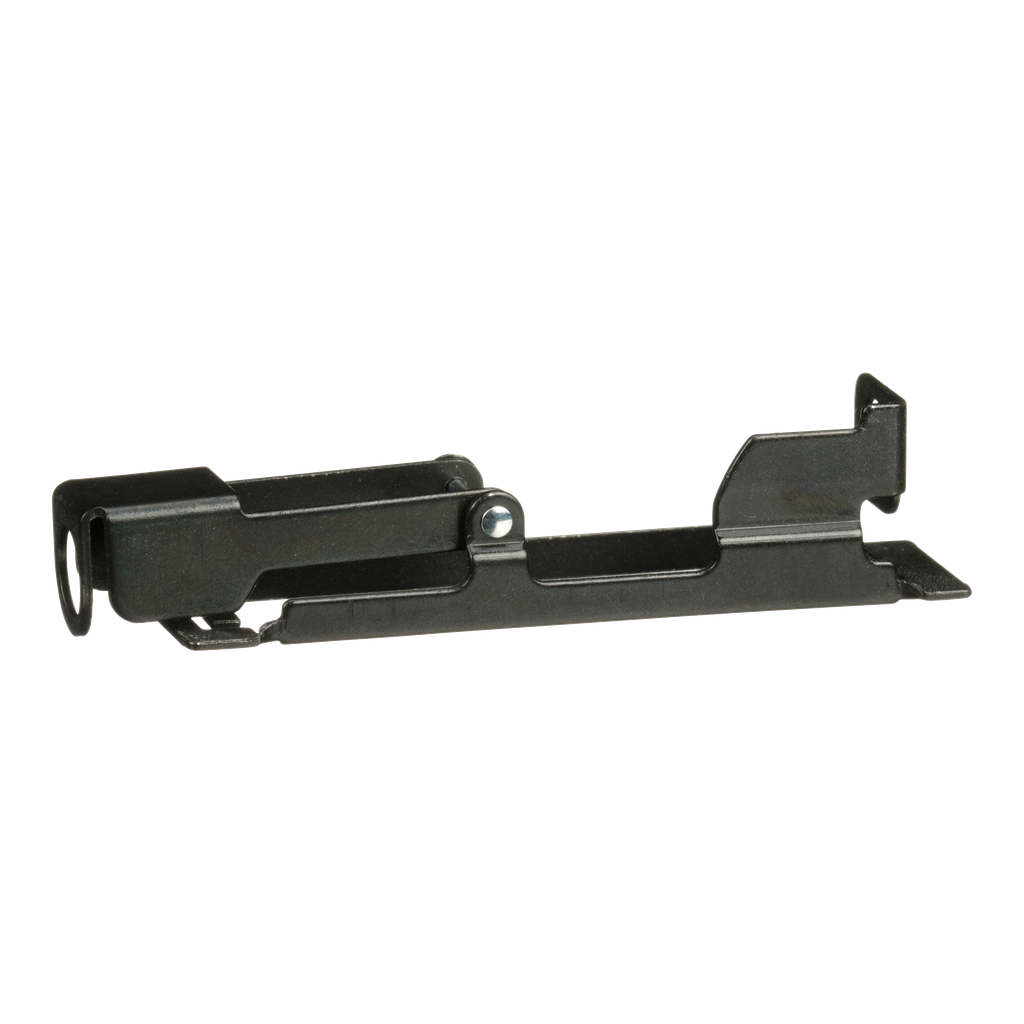

Mini circuit breaker accessory, QO, padlock device, handle, 1 pole, fixed, OFF position only
QO and QOB one, two and three pole thermal magnetic circuit breakers provide overcurrent protection and switching on ac and dc systems. These circuit breakers have an over center, trip-free toggle mechanism with quick-make, quick break action and positive handle indication A full line of factory installed accessories, such as shunt trips, auxiliary switches and alarm switches, is also available This attachment is for padlocking 1P QO circuit breaker in OFF position only, fixed attachment.
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Rohs Exemption Information | Yes |
|---|---|
| Mercury Free | Yes |
| Toxic Heavy Metal Free | Yes |
| China Rohs Regulation | Product out of China RoHS scope. Substance declaration for your information. |
| Eu Rohs Directive | Compliant with Exemptions |
| Halogen Content Performance | Halogen free product |
| Country of Origin | Mexico |
| Product Or Component Type | Circuit Breaker Handle Padlock |
| Warranty | 18 months |
| Circuit Breaker Type | standard |
Documents
- QO1PAF/QOU1PAFLA Handle Lock-off Padlock Attachment Kits Installation Instructions - 48840-209-01 (pdf)
- Factory Installed Lock-off Brackets Installation Instructions - 48840-242-01 (pdf)
- Handle Lock-off Padlock Attachment Kit Installation Instructions - 48840-224-01 (pdf)
- Small and medium project solutions, available now - brochure - 998-21381316_GMA-US_Small+and+medium+project+solutions+available+now (pdf)
- A Guide to Your Square D Electrical Distribution System - Brochure - 0102BR0201 (pdf)
- Spec Sheet
- Square D QO and Homeline Load Centers and Enclosures Catalog - 1100CT0501 (pdf)
- Panelboards: Section 9 - Digest 179 (2024) - Panelboards-Lighting-Digest-Catalog-0100CT2401-SEC-09 (pdf)
- Digest Catalog 01: Load Centers - 0100CT1901_SEC-01 (pdf)
- Digest Catalog 09: Panelboards - 0100CT1901_SEC-09 (pdf)
- Square D QO and QOB Miniature Circuit Breakers Catalog - 0730CT9801 (pdf)
- Digest Catalog 07: Miniature and Molded Case Circuit Breakers - SE-Digest-07-Circuit-Breakers (pdf)
- Square D NQ Circuit Breaker Panelboards Catalog - 1640CT0801 (pdf)
