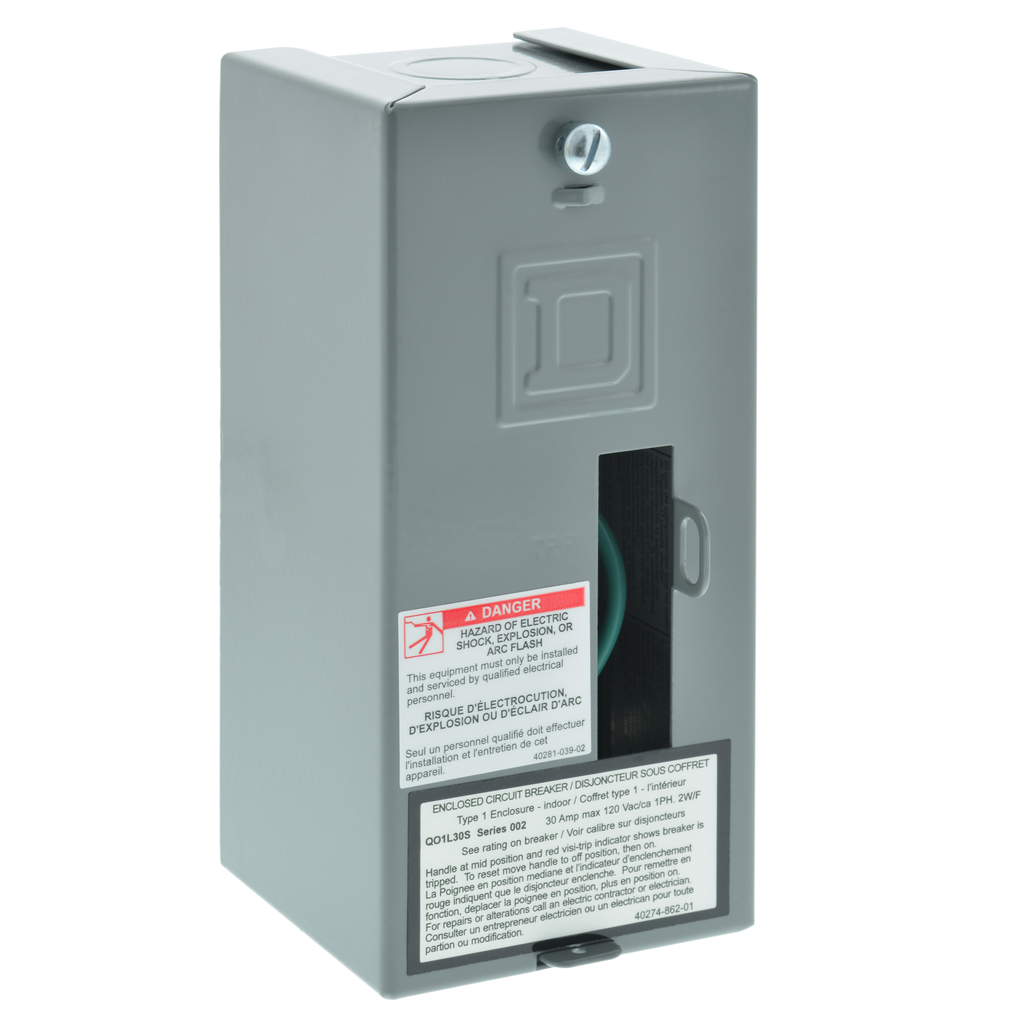

QO1L30S – Load center, QO, 1 phase, 1 spaces, 1 circuit, 30A convertible main lugs, NEMA1, surface cover
QO1L30S
Load center, QO, 1 phase, 1 spaces, 1 circuit, 30A convertible main lugs, NEMA1, surface cover

QO and QOB one, two and three pole thermal magnetic circuit breakers provide overcurrent protection and switching on ac and dc systems. These circuit breakers have an over center, trip-free toggle mechanism with quick-make, quick break action and positive handle indication They also have VisiTrip trip indication, which provides a visual indication that the circuit breaker has tripped and interrupted the circuit. This QO mini circuit breaker handle clamp accessory provides a means of holding one pole QO circuit brakers in the ON or OFF position.

Brand: Schneider Electric

Add to Quote Catalogue
Specifications
Product Certifications
  • UL Listed
  • CSA
Ambient Air Temperature For Operation
  • -5 °C
  • 40 °C
Nema Degree Of Protection NEMA 1 indoor enclosure
Warranty 18 months
Rohs Exemption Information Yes
Mercury Free Yes
Environmental Disclosure ENVPEP2212001
Sustainable Offer Status Green Premium product
Toxic Heavy Metal Free Yes
California Proposition 65 WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Reach Free Of Svhc Yes
China Rohs Regulation Pro-active China RoHS declaration (out of China RoHS legal scope)
Circularity Profile N/A
Eu Rohs Directive Compliant
Height 75 mm
Phase 1 phase 3 wires
[Ue] Rated Operational Voltage 120/240 V AC
Electrical Connection lugs
Number Of Circuits 1
Number Of Spaces 1
Short-Circuit Current 10 kA
Number Of Tandem Circuit Breakers 0
Line Rated Current 30 A
Awg Gauge
  • AWG 12...AWG 10 aluminium
  • AWG 14...AWG 10 copper
Width 162 mm
Depth 75 mm
Load Center Type Fixed Mains (lugs)
Device Composition grounding bar (ordered separately)
Box Number 1
Country of Origin Mexico
Width 162 mm
Height 75 mm
Range Of Product QO
Product Or Component Type Load Center
Cover Type surface cover
