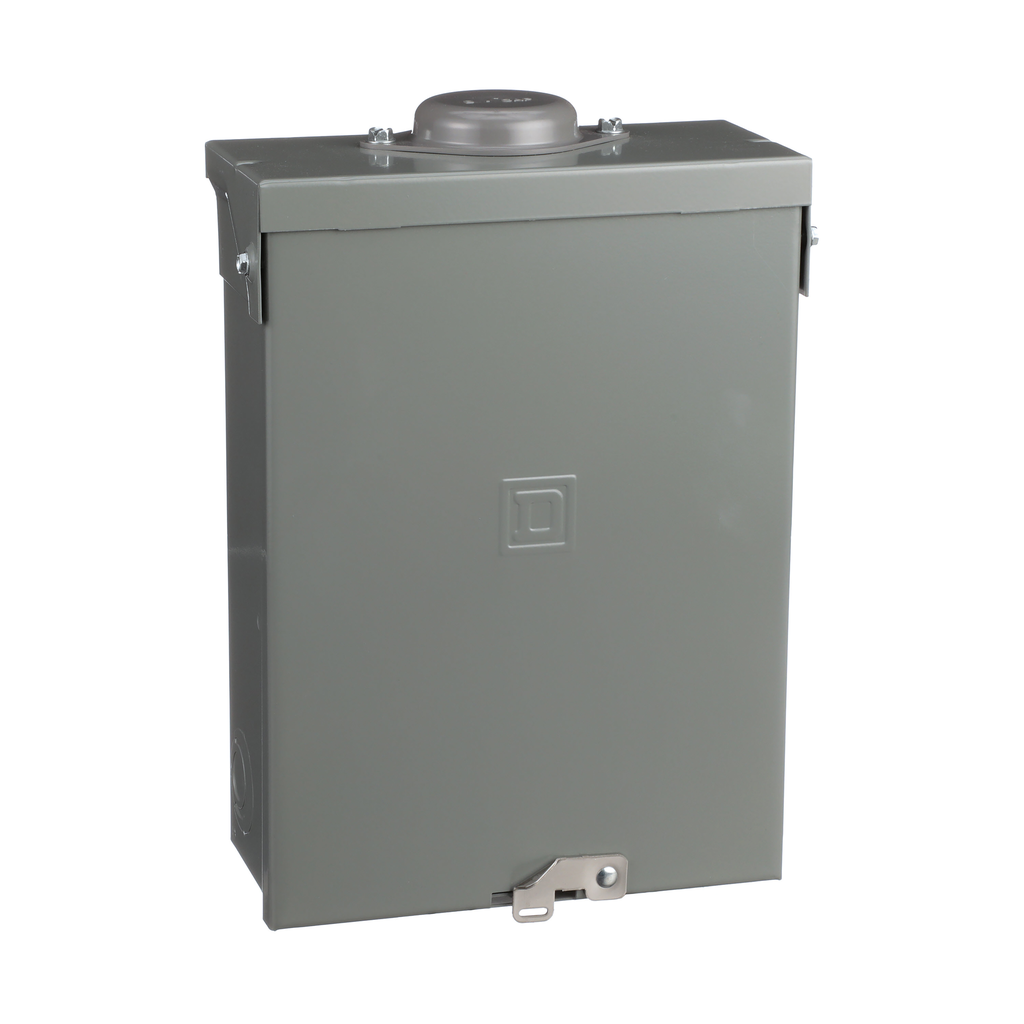

QO1DM10030TRBR
Generator panel, QO, 1 phase, 4 spaces, 8 circuits, 30A main breaker with interlock, NEMA3R, gnd bar, UL
Square D® QO® Generator Panels connects directly to the main load center and provides four single pole spaces that will accommodate up to eight circuit dedicated for back-up power. They are designed to meet residential, commercial, and industrial requirements to protect electrical systems, equipment, and people. They have been certified to adhere to all the data sheet specifications by the Underwriters Laboratories (UL) and CSA.
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Product Certifications | UL Listed |
|---|---|
| Ambient Air Temperature For Operation |
|
| Nema Degree Of Protection | NEMA 3R weatherproof enclosure |
| Warranty | 18 months |
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP2212001 |
| Sustainable Offer Status | Green Premium product |
| California Proposition 65 | WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
| Reach Free Of Svhc | Yes |
| China Rohs Regulation | Product out of China RoHS scope. Substance declaration for your information. |
| Circularity Profile | N/A |
| Eu Rohs Directive | Compliant with Exemptions |
| Height | 321 mm |
| Phase | 1 phase 3 wires |
| Electrical Connection | lugs |
| Number Of Circuits | 8 |
| Number Of Spaces | 4 |
| Short-Circuit Current | 10 kA |
| Number Of Tandem Circuit Breakers | 4 |
| Material | tin plated aluminium: busbar |
| Surface Finish | baked enamel Gray |
| Line Rated Current | 100 A |
| Enclosure Material | welded galvannealed steel |
| Awg Gauge | AWG 8...AWG 2 copper |
| Width | 226 mm |
| Load Center Type | main breaker |
| Device Composition | grounding bar (factory installed) |
| Box Number | 17R |
| Country of Origin | Mexico |
| Width | 226 mm |
| Height | 321 mm |
| Range Of Product | QO |
| Product Or Component Type | panel |
| Cover Type | surface cover |
