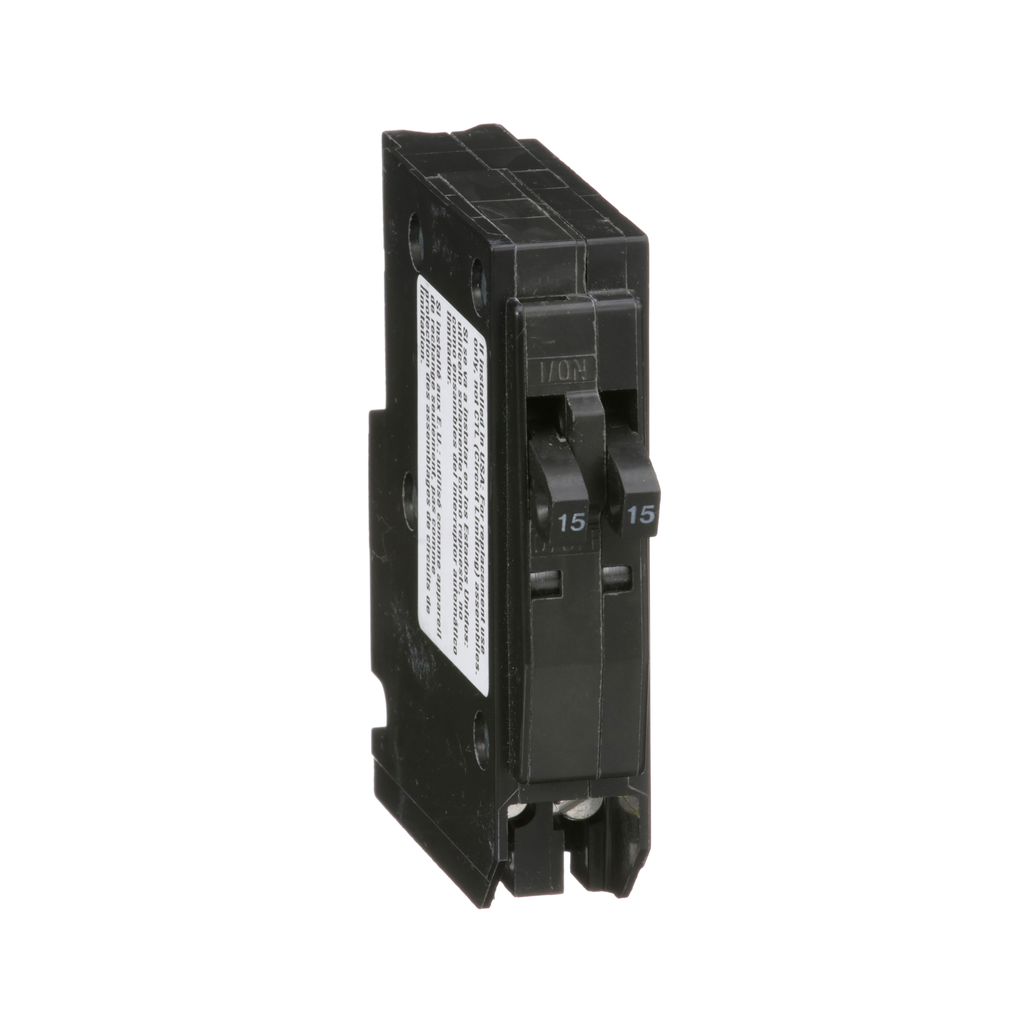

Tandem mini circuit breaker, QO, 2 x 1 pole at 15A, 120/240VAC, 10kA, plug in, clam
QO and QOB one, two and three pole thermal magnetic circuit breakers provide overcurrent protection and switching on ac and dc systems. These circuit breakers have an over center, trip free toggle mechanism with quick make, quick break action and positive handle indication. They also have VisiTrip trip indication, which provides a visual indication that the circuit breaker has tripped and interrupted the circuit. A full line of features and factory installed accessories are also available such as shunt trips, auxiliary switches and alarm switches. This QO tandem mini circuit breaker has 2 one pole at 15A for 120/240VAC. This unit provides 10kA breaking capacity and plug in mounting. QO circuit breakers are UL Listed under UL File E84967 and are CSA Certified under CSA Master Contract 153555. This product is in clam packaging.
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Country of Origin | United States |
|---|---|
| Width | 19 mm |
| Height | 82 mm |
| Weight | 0.163 kg |
| Circuit Breaker Type | tandem |
| Range Of Product | QO |
| Product Or Component Type | miniature circuit-breaker |
| Type Of Packing | clam packaging |
| Circuit Breaker Application | HACR rated |
| Mounting Mode | plug-in |
| Poles Description | 1P |
| Electrical Connection | box lugs |
| Line Rated Current | 15 A |
| [Ue] Rated Operational Voltage | 120/240 V AC |
| Height | 82 mm |
| Tightening Torque | 4-4 N.m |
| Number Of Spaces Required | 1 |
| Net Weight | 0.163 kg |
| Breaking Capacity | 10 kA 120/240 V AC |
| Awg Gauge | AWG 14...AWG 8 copper or aluminium |
| Width | 19 mm |
| Depth | 74 mm |
| Product Certifications |
|
| Ambient Air Temperature For Operation | 40 °C |
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Sustainable Offer Status | Green Premium product |
| Toxic Heavy Metal Free | Yes |
| China Rohs Regulation | Product out of China RoHS scope. Substance declaration for your information. |
| Circularity Profile | N/A |
| Eu Rohs Directive | Compliant with Exemptions |
| Halogen Content Performance | Halogen free product |
