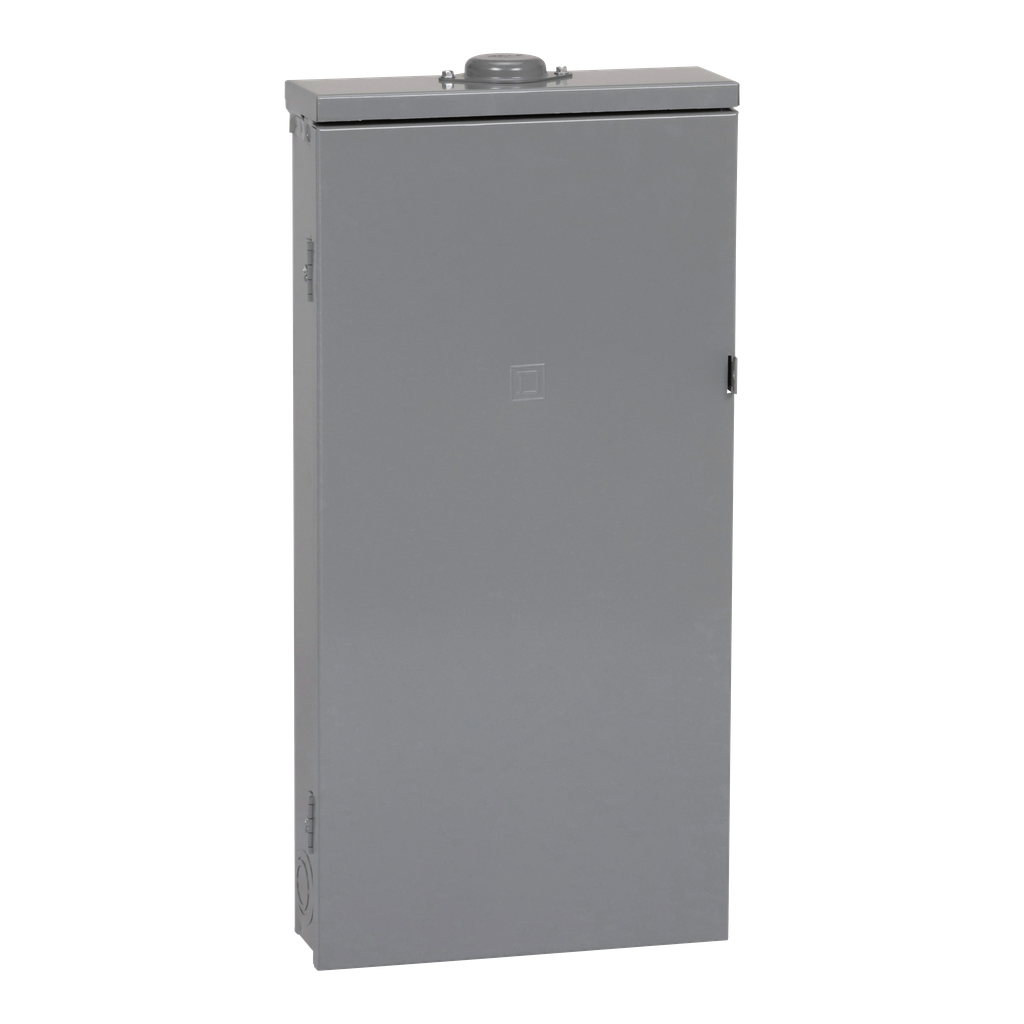

Load center, QO, 1 phase, 30 spaces, 30 circuits, 150A convertible main breaker, PoN, NEMA3R
QO Load Centers offer premium features by allowing QO breakers, ground fault interrupters, arc fault interrupters, and surge arresters to be installed inside. QO Load Centers are designed for residential and industrial use to protect electrical systems, equipment, and people. They are available in both traditional and plug on neutral configurations. Indoor enclosures are designed to rotate 180 degrees to accommodate top or bottom service entrance feed which saves expensive service cable. Single and three phase options are available. The bus bars are tin plated copper and are shielded. Indoor and outdoors enclosures are an option. QO Load Centers enable the use of a full complement of accessories. This 1 phase load center has 30 spaces and 30 circuits. This system provides a 150A convertible main breaker in a NEMA 3R enclosure. It also includes plug on neutral and is UL rated.
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Height | 758 mm |
|---|---|
| Phase | 1 phase 3 wires |
| Electrical Connection | lugs |
| Number Of Circuits | 40 |
| Number Of Spaces | 30 |
| Short-Circuit Current | 22 kA |
| Number Of Tandem Circuit Breakers | 10 |
| Material | tin plated copper: busbar |
| Surface Finish | baked enamel Gray |
| Line Rated Current | 150 A |
| Enclosure Material | welded galvannealed steel |
| Awg Gauge | AWG 4...250 kcmil aluminium/copper |
| Width | 375 mm |
| Load Center Type | PoN Convertible Mains (breaker) |
| Device Composition | grounding bar (ordered separately) |
| Box Number | 6R |
| Country of Origin | United States |
| Width | 375 mm |
| Height | 758 mm |
| Range Of Product | QO |
| Product Or Component Type | Load Center |
| Cover Type | surface cover |
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP2212001 |
| Sustainable Offer Status | Green Premium product |
| Toxic Heavy Metal Free | Yes |
| California Proposition 65 | WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
| Reach Free Of Svhc | Yes |
| China Rohs Regulation | Pro-active China RoHS declaration (out of China RoHS legal scope) |
| Circularity Profile | N/A |
| Eu Rohs Directive | Compliant |
| Product Certifications | UL Listed |
| Ambient Air Temperature For Operation |
|
| Nema Degree Of Protection | NEMA 3R weatherproof enclosure |
