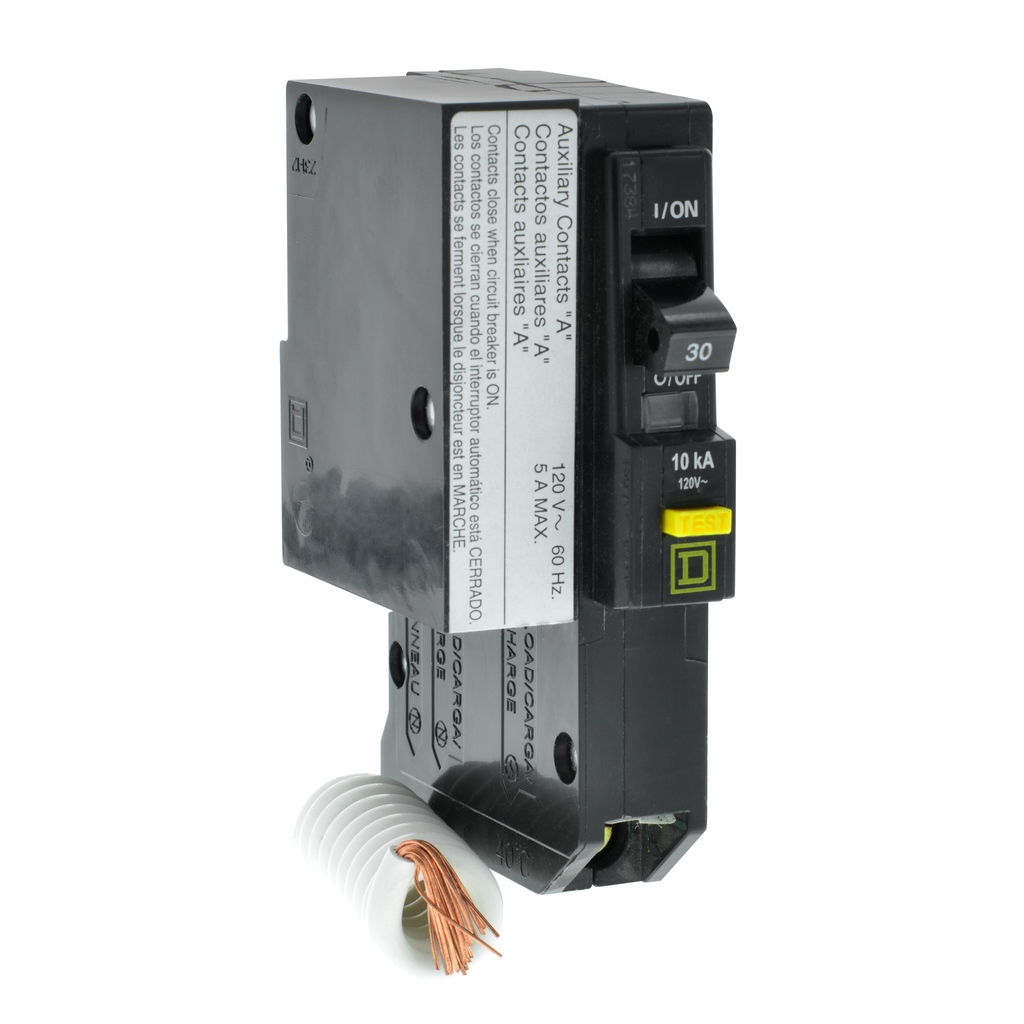

Mini circuit breaker, QO, 30A, 1 pole, 120VAC, 10kA, plug in, 6mA grd fault A, pigtail, aux switch 1A
QO and QOB one, two and three pole thermal magnetic circuit breakers provide overcurrent protection and switching on ac and dc systems. These circuit breakers have an over center, trip free toggle mechanism with quick make, quick break action and positive handle indication. They also have VisiTrip trip indication, which provides a visual indication that the circuit breaker has tripped and interrupted the circuit. A full line of features and factory installed accessories are also available such as shunt trips, auxiliary switches and alarm switches. This 1 pole QO circuit breaker is rated at 30A at 120VAC. This unit provides 10kA breaking capacity and plug in mounting. This product includes a 6mA ground fault A with pigtail, and a auxiliary switch 1A. QO circuit breakers are UL Listed under UL File E84967 and are CSA Certified under CSA Master Contract 153555.
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Product Certifications |
|
|---|---|
| Ambient Air Temperature For Operation | 40 °C |
| Warranty | 18 months |
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Toxic Heavy Metal Free | Yes |
| California Proposition 65 | WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
| China Rohs Regulation | Product out of China RoHS scope. Substance declaration for your information. |
| Eu Rohs Directive | Compliant with Exemptions |
| Height | 105 mm |
| Tightening Torque |
|
| Number Of Spaces Required | 2 |
| Net Weight | 0.454 kg |
| Breaking Capacity | 10 kA 120 V AC |
| Awg Gauge |
|
| Width | 38 mm |
| Depth | 74 mm |
| Country of Origin | United States |
| Width | 38 mm |
| Height | 105 mm |
| Weight | 0.454 kg |
| Circuit Breaker Type | ground fault protecting class A 6 mA |
| Range Of Product | QO |
| Accessory / Separate Part Type | auxiliary switch 120 V AC 1A |
| Product Or Component Type | miniature circuit-breaker |
| Circuit Breaker Application | not rated |
| Mounting Mode | plug-in |
| Poles Description | 1P |
| Electrical Connection | pressure plate |
| Line Rated Current | 30 A |
| [Ue] Rated Operational Voltage | 120 V AC |
Documents
- QO/QOB 1-Pole GFCI Installation Instructions - 48840-088-01 (pdf)
- Square D Combination AFCI Circuit Breakers Brochure - 0700BR1202 (pdf)
- A Guide to Your Square D Electrical Distribution System - Brochure - 0102BR0201 (pdf)
- Spec Sheet
- Digest Catalog 01: Load Centers - 0100CT1901_SEC-01 (pdf)
- Square D QO and QOB Miniature Circuit Breakers Catalog - 0730CT9801 (pdf)
