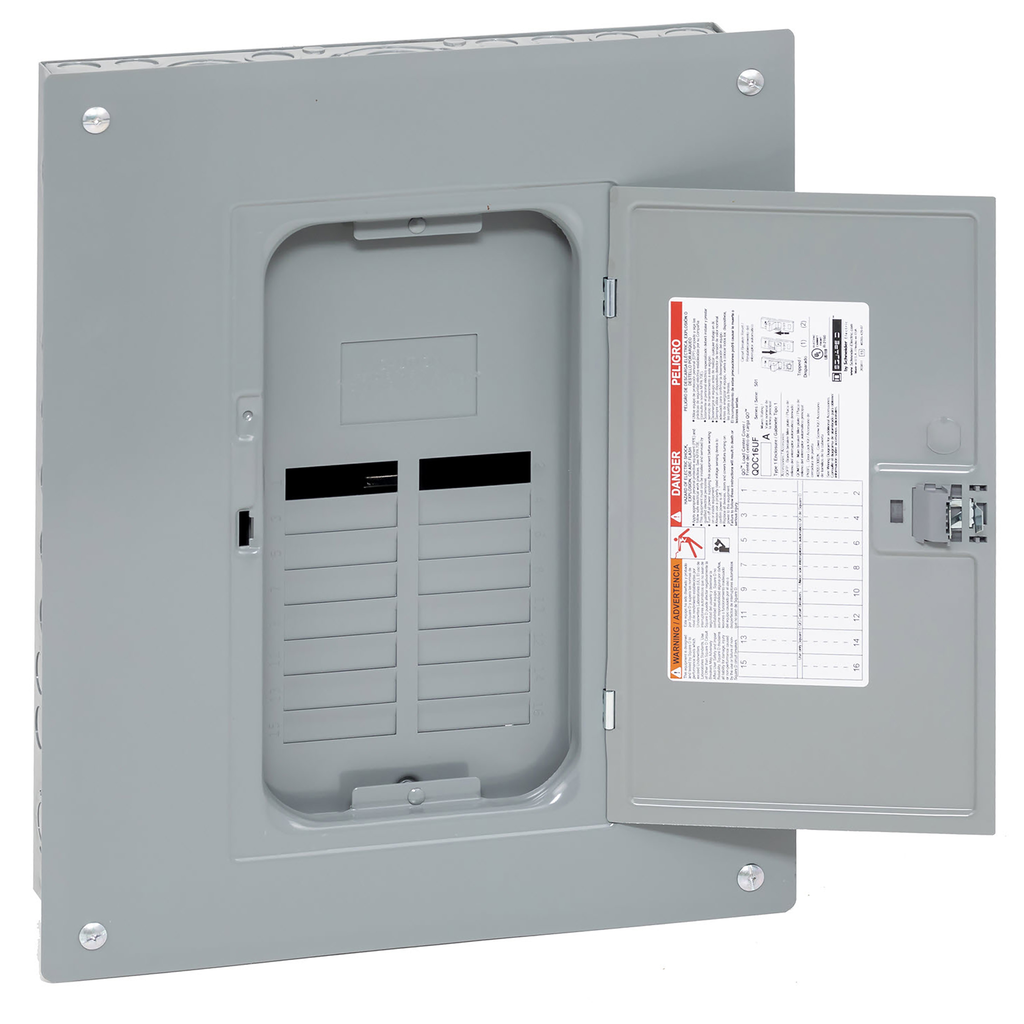

Load center, QO, 1 phase, 12 spaces, 24 circuits, 125A convertible main lugs, PoN, NEMA1, gnd bar, combo cover
QO Load Centers offer premium features by allowing QO breakers, ground fault interrupters, arc fault interrupters, and surge arresters to be installed inside. QO Load Centers are designed for residential and industrial use to protect electrical systems, equipment, and people. They are available in both traditional and plug on neutral configurations. There is 3 types of mains available. There is main circuit breaker, main lugs, and generator panel. Single and three phase options are available. The bus bars are tin plated copper and are shielded. Indoor and outdoors enclosures are an option. QO Load Centers enable the use of a full complement of accessories. This 1 phase load center has 12 spaces and 24 circuits. This system provides 125A convertible main lugs in a NEMA 1 enclosure. It also includes plug on neutral, ground bar, combination cover, and UL rated.
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Product Certifications | UL Listed |
|---|---|
| Ambient Air Temperature For Operation |
|
| Nema Degree Of Protection | NEMA 1 indoor enclosure |
| Height | 455 mm |
| Phase | 1 phase |
| Tightening Torque | Cover 20 lb.in |
| Number Of Circuits | 24 |
| Number Of Spaces | 12 |
| Net Weight | 7.260 kg |
| Short-Circuit Current | 65 kA |
| Number Of Tandem Circuit Breakers | 12 |
| Line Rated Current | 125 A |
| Width | 362 mm |
| Depth | 95 mm |
| Load Center Type | PoN Convertible Mains (lugs) |
| Device Composition | grounding bar included (not installed) |
| Box Number | 6 |
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP2212001 |
| Sustainable Offer Status | Green Premium product |
| Toxic Heavy Metal Free | Yes |
| California Proposition 65 | WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
| Reach Free Of Svhc | Yes |
| China Rohs Regulation | Pro-active China RoHS declaration (out of China RoHS legal scope) |
| Circularity Profile | N/A |
| Eu Rohs Directive | Compliant |
| Country of Origin | United States |
| Width | 362 mm |
| Height | 455 mm |
| Weight | 7.260 kg |
| Range Of Product | QO |
| Provided Equipment |
|
| Product Or Component Type | Load Center |
| Cover Type | combination flush/surface cover |
