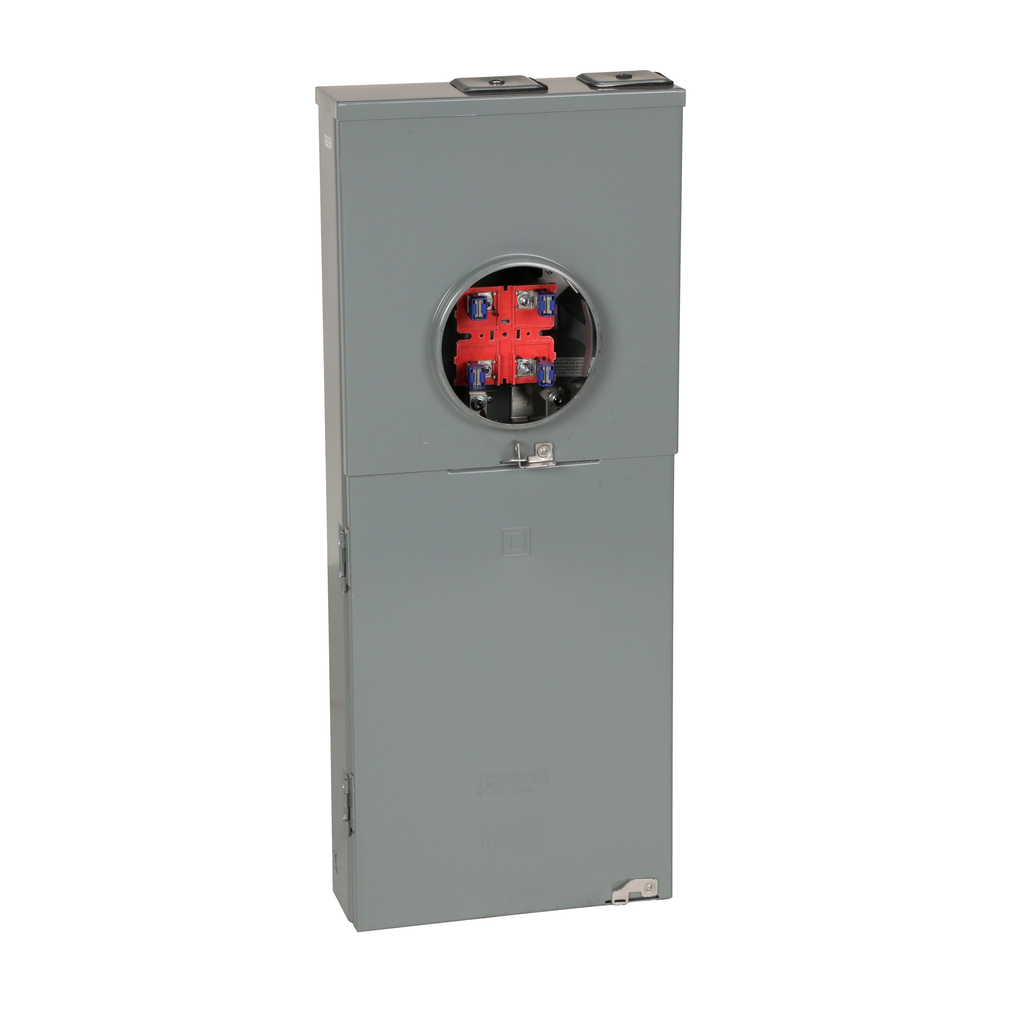

QC816F150C - Meter mains, QO, CSED, ringless socket, 150A, surface mount, maximum 8 spaces, 16 circuits, no bypass

QC816F150C

Meter mains, QO, CSED, ringless socket, 150A, surface mount, maximum 8 spaces, 16 circuits, no bypass

The Square D® QO Load Centers and Combination Service Entrance Devices, QC816F150C. Enclosure mounting style performed as surface mount or convertible to semi-flush (use appropriate flange kit). This HOM Ringless Meter Mains meets Federal Specification W-P-115c as Type 1, Class 2, are UL Listed, suitable only for use as service equipment. In interior single main service disconnect with feed-thru lugs.

Brand: Schneider Electric

Add to Quote Catalogue

Specifications

Product Certifications	UL E-6294
Warranty	18 months
Rohs Exemption Information	Yes
Mercury Free	Yes
Environmental Disclosure	ENVPEP1407020EN
Sustainable Offer Status	Green Premium product
Reach Regulation	Reference contains Substances of Very High Concern above the threshold
California Proposition 65	WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
China Rohs Regulation	Product out of China RoHS scope. Substance declaration for your information.
Circularity Profile	N/A
Eu Rohs Directive	Compliant with Exemptions
Height	35.15 in
Tightening Torque	main lugs 250 lb.in, AWG 6...350 kcmil, aluminium/copper service ground 50 lb.in, AWG 14...AWG 2/0, copper service ground 50 lb.in, AWG 12...AWG 2/0, aluminium branch lugs 35 lb.in, AWG 6...AWG 4, aluminium/copper branch lugs 25 lb.in, AWG 8, aluminium/copper branch lugs 20 lb.in, AWG 14...AWG 10, copper branch lugs 20 lb.in, AWG 12...AWG 10, aluminium Cover 10 lb.in
Branch Circuit Breaker Rated Current	150 A
Bypass Type	no bypass
Service Feed Location	OH UG
Bus Rated Current	200.0 A
Electrical Connection	feed-thru lugs, line side feed-thru lugs, service ground
Number Of Circuits	16
Number Of Spaces	8
Short-Circuit Current	22 kA
Number Of Tandem Circuit Breakers	8
Hub Type	A
Meter Socket Type	ringless
Service Disconnect Rated Current	150 A
Line Rated Current	150 A
Awg Gauge	AWG 6...350 kcmil aluminium/copper)line side AWG 12...AWG 2/0 aluminium/copper)service ground
Width	14.37 in
Depth	5.07 in
Network Number Of Phases	1
Device Composition	service disconnect (factory installed)
Device Mounting	surface
Country of Origin	Mexico
Width	14.37 in
Height	35.15 in
Range Of Product	QO
Product Or Component Type	Meter Mains

Meter mains, QO, CSED, ringless socket, 150A, surface mount, maximum 8 spaces, 16 circuits, no bypass
