QBPAF

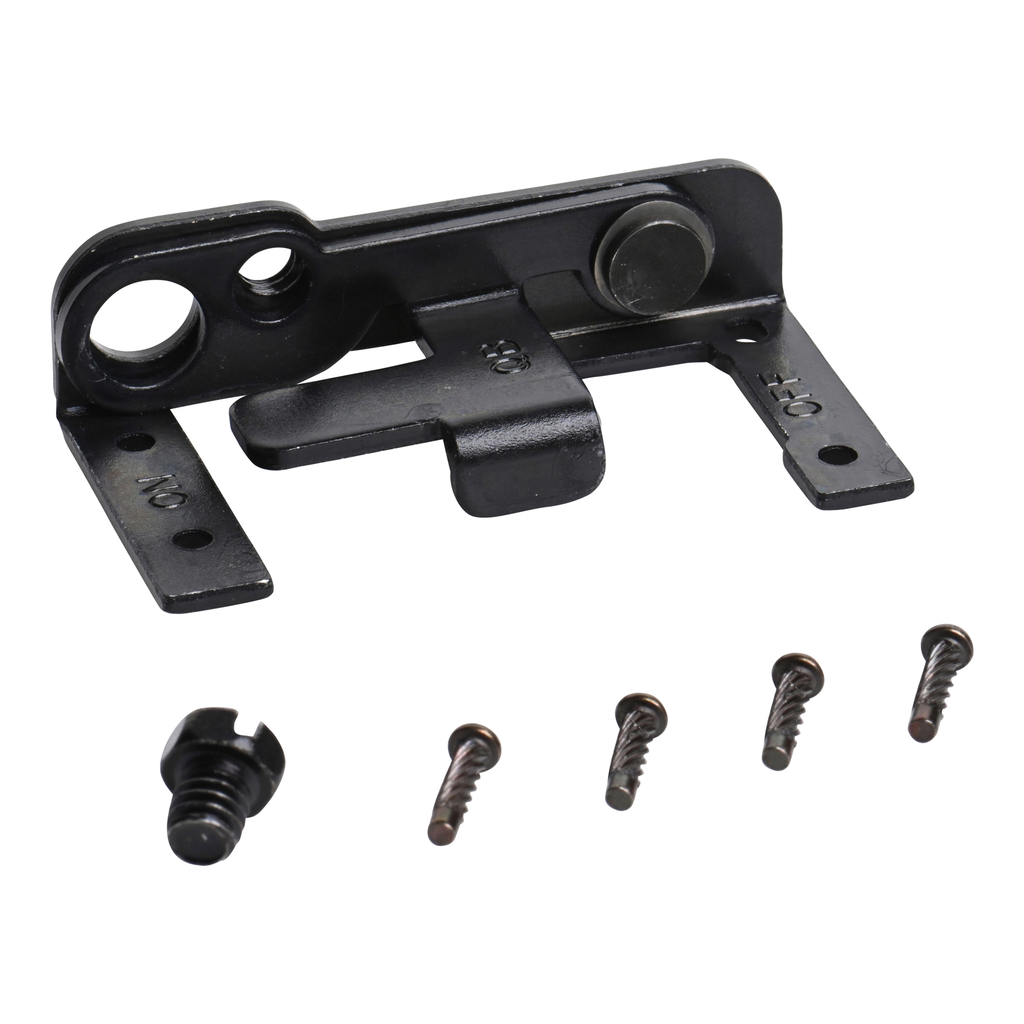

Accessory, PowerPacT Q, circuit breaker fixed (lock off) handle padlocking device
PowerPacT Q-Frame circuit breakers have field installable mechanical accessories. QBPA is a field installable handle padlocking device. It is a fixed lock, locking in the off position. For a factory installed option, add "YQ" as a suffix to the breaker catalog number. This accessory complies to UL, CSA, and IEC standards.
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Product Certifications |
|
|---|---|
| Warranty | 18 months |
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Pvc Free | Yes |
| Toxic Heavy Metal Free | Yes |
| California Proposition 65 | WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov |
| China Rohs Regulation | Pro-active China RoHS declaration (out of China RoHS legal scope) |
| Eu Rohs Directive | Compliant |
| Halogen Content Performance | Halogen free product |
| Awg Gauge | AWG 3/0...500 kcmil 4 aluminium/copper |
| Country of Origin | United States |
| Range Of Product | PowerPact Q |
| Circuit Breaker Type | standard |
| Product Or Component Type | padlocking device |
