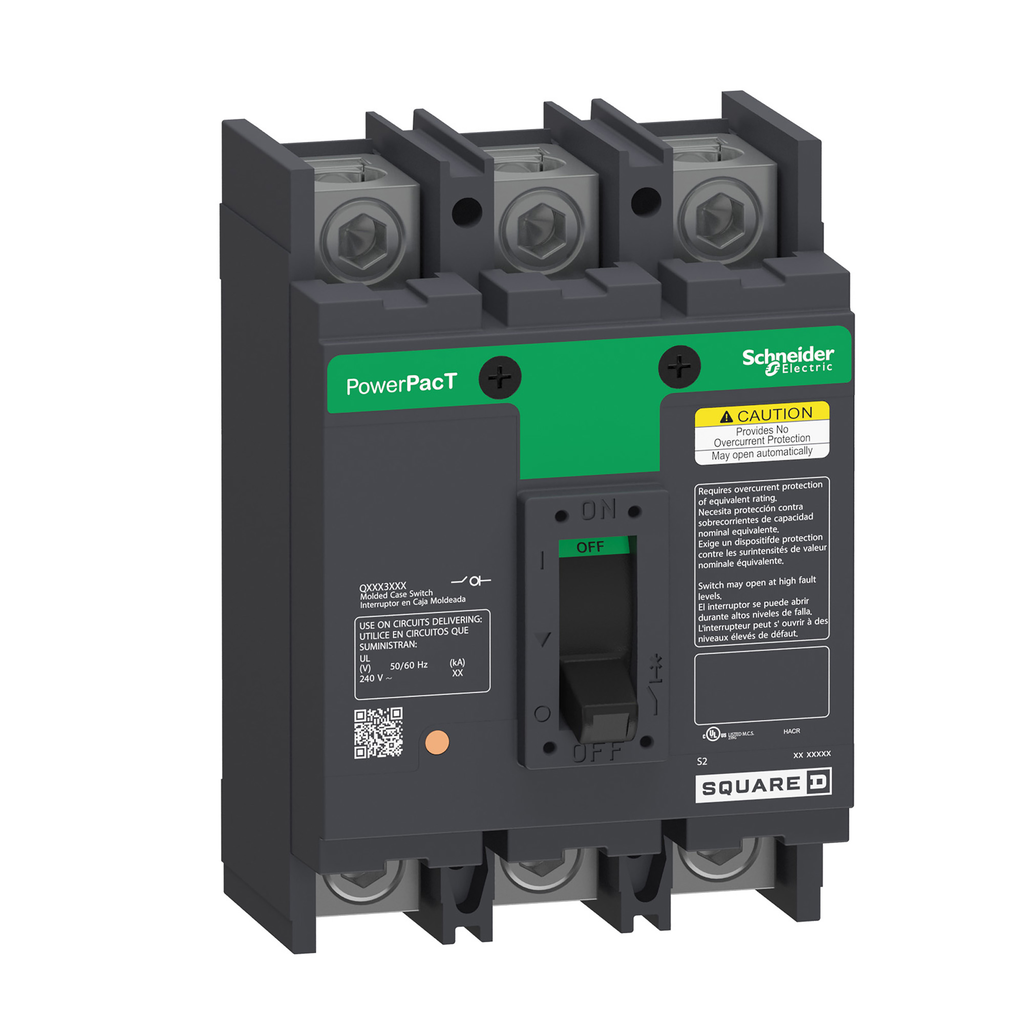

Automatic switch, PowerPacT Q, 225A, 3 pole, 480VAC, lugs, magnetic
PowerPacT Q-Frame automatic switches are a disconnect device and can be used to open and close a circuit under normal operating conditions. The automatic switches are similar in construction, use the same accessories, and offer the same connection possibilities as the Q-Frame circuit breaker version. The switches have a factory set, nonadjustable trip point calibrated to protect the molded case switch. The automatic switch can make and break its rated current. For an overload or a short circuit, it must be protected by an upstream device. PowerPacT Q-Frame switches are available in unit mount, I-Line, plug-in, or drawout versions. This switch has lugs on both the line and load sides. This PowerPacT Q, 250A, 3 pole, automatic switch has a short circuit withstand current rating of 10kA at 240VAC. PowerPacT Q automatic switches comply to UL and CSA standards.
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Product Certifications |
|
|---|---|
| Warranty | 18 months |
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP2311048EN |
| Sustainable Offer Status | Green Premium product |
| Pvc Free | Yes |
| California Proposition 65 | WARNING: This product can expose you to chemicals including: DINP, which is known to the State of California to cause cancer, and DIDP, which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
| China Rohs Regulation | Product out of China RoHS scope. Substance declaration for your information. |
| Circularity Profile | N/A |
| Eu Rohs Directive | Compliant with Exemptions |
| Halogen Content Performance | Halogen free product |
| Height | 16.24 in |
| Tightening Torque | 28-28 N.m 25-150 mm² (AWG 4...300 kcmil) |
| Breaking Capacity Code | B |
| Magnetic Tripping Current | 4500-4500 A |
| Electrical Connection |
|
| Mounting Mode | unit mount |
| Short-Circuit Withstand | 10 kA 240 V UL 489 |
| Poles Description | 3P |
| Line Rated Current | 225 A |
| Width | 16.54 in |
| Depth | 14.49 in |
| [Ue] Rated Operational Voltage | 240 V AC |
| Awg Gauge | x AWG 4...300 kcmil ( aluminium/copper ) |
| Country of Origin | United States |
| Width | 16.54 in |
| Height | 16.24 in |
| Range Of Product | PowerPact Q |
| Circuit Breaker Type | Q-Frame |
| Product Or Component Type | automatic switch |
| Trip Unit Technology | magnetic |
