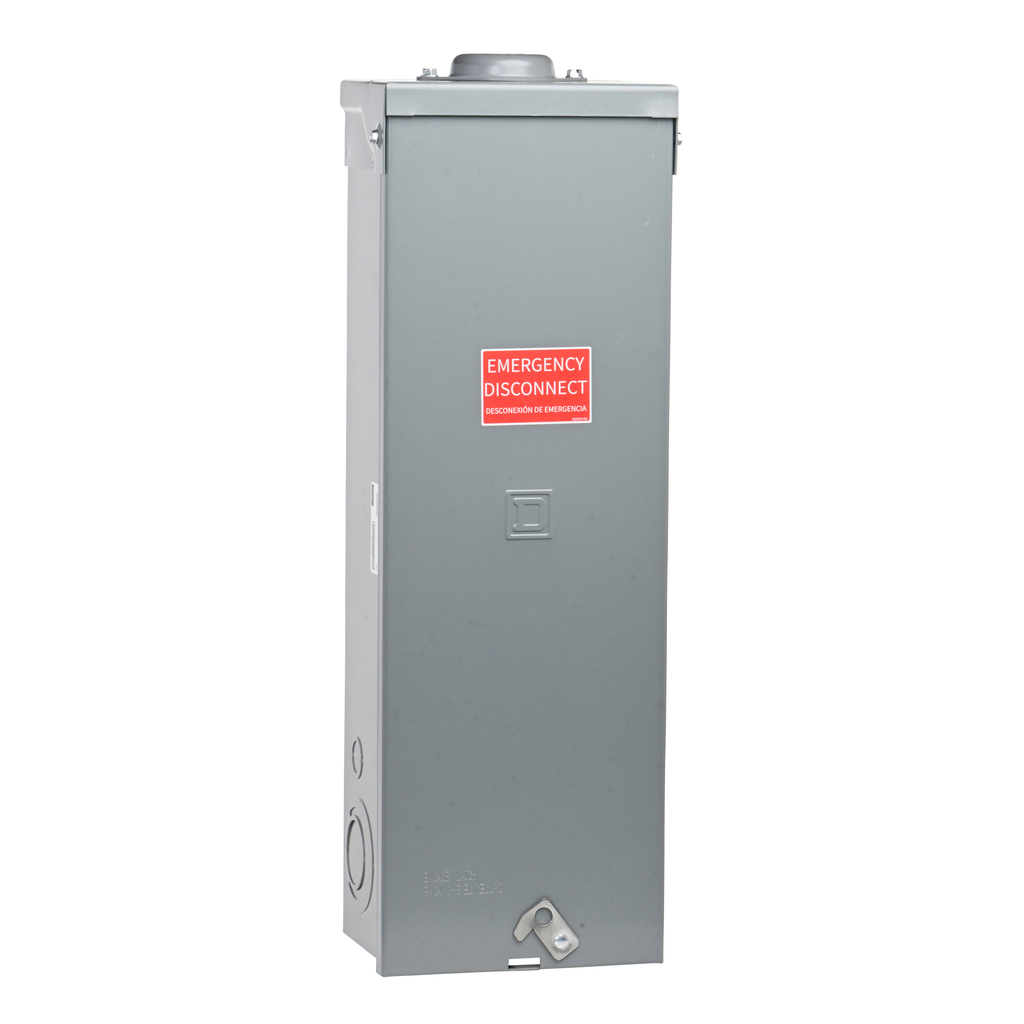

Q2200RBE
Circuit breaker enclosure, PowerPacT Q, 70 to 200kA, 10 to 100kA AIR, NEMA 3R
Enclosed Devices are designed for reliability and safety. Indoor NEMA type 1 and outdoor NEMA type 3R options are available. Enclosed Devices provide an easy installation for residential and commercial air conditioning systems and other single phase applications. Metallic and non-metallic enclosure options are available as well. This circuit breaker enclosure has a current rating of 200A and 2 pole. It is rated at NEMA 3R. The product is UL Listed.
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Country of Origin | Mexico |
|---|---|
| Width | 194 mm |
| Height | 594 mm |
| Range Of Product | PowerPact Q |
| Product Or Component Type | enclosure |
| Height | 594 mm |
| Line Rated Current | 200 A |
| Width | 194 mm |
| Depth | 121 mm |
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| California Proposition 65 | WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
| China Rohs Regulation | Product out of China RoHS scope. Substance declaration for your information. |
| Eu Rohs Directive | Compliant with Exemptions |
Documents
- PKSB1Q2 Service Barrier for Q-Frame Unit Mount Circuit Breakers - NNZ48461 (pdf)
- Installing Type Q-Frame Circuit Breakers into Enclosures - 40265-969-03 (pdf)
- QOM2 Enclosed Circuit Breaker Installation Instructions - 40273-003-02 (pdf)
- Changes to the 2020 National Electrical Code eGuide Brochure - 998-21037672_GMA-US_NEC+2020+eGuide (pdf)
- Residential Enclosed Circuit Breakers Handout - 998-21059944_GMA-US_SentinelUL67_eLeaflet_A (pdf)
- Square D QO and Homeline Load Centers and Enclosures Catalog - 1100CT0501 (pdf)
- Digest Catalog 01: Load Centers - 0100CT1901_SEC-01 (pdf)
- Load Centers: Section 1 - Digest 179 (2024) - Load-Centers-CSEDs-Digest-Catalog-0100CT2401-SEC-01 (pdf)
- Spec Sheet
