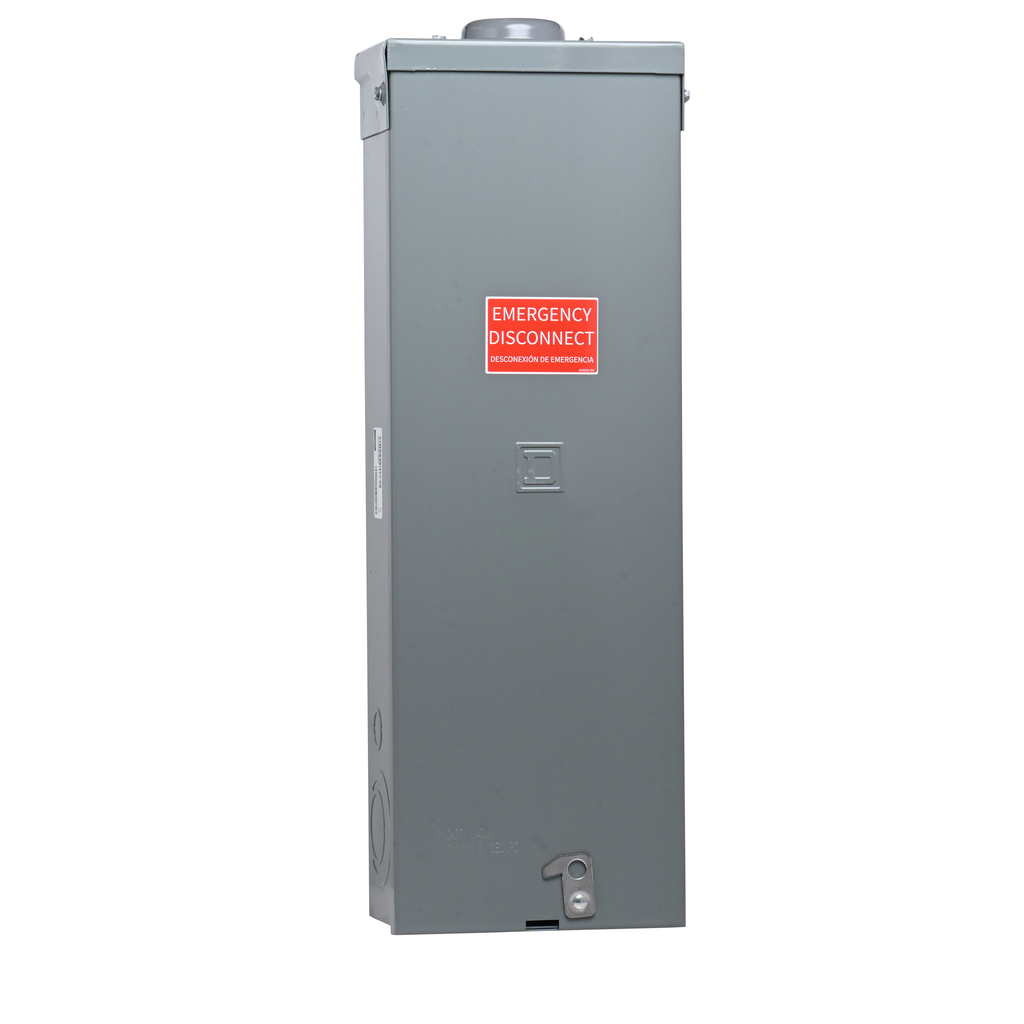

Q2200MRBE
Circuit breaker enclosure, PowerPacT Q, 200A, main breaker, 25kA AIR, NEMA 3R
Enclosed Devices are designed for reliability and safety. Indoor NEMA type 1 and outdoor NEMA type 3R options are available. Enclosed Devices provide an easy installation for residential and commercial air conditioning systems and other single phase applications. Metallic and non-metallic enclosure options are available as well. This enclosed circuit breaker is 2 pole and 150A. It is rated at 240VAC and NEMA 3R. This system includs a QDL22200 breaker. This product complies to UL & CSA standards.
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Rohs Exemption Information | Yes |
|---|---|
| Mercury Free | Yes |
| California Proposition 65 | WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
| China Rohs Regulation | Product out of China RoHS scope. Substance declaration for your information. |
| Eu Rohs Directive | Compliant with Exemptions |
| Height | 594 mm |
| Line Rated Current | 200 A |
| Width | 194 mm |
| Depth | 121 mm |
| Country of Origin | Mexico |
| Width | 194 mm |
| Height | 594 mm |
| Range Of Product | PowerPact Q |
| Product Or Component Type | enclosed circuit breaker |
