PQ3610G

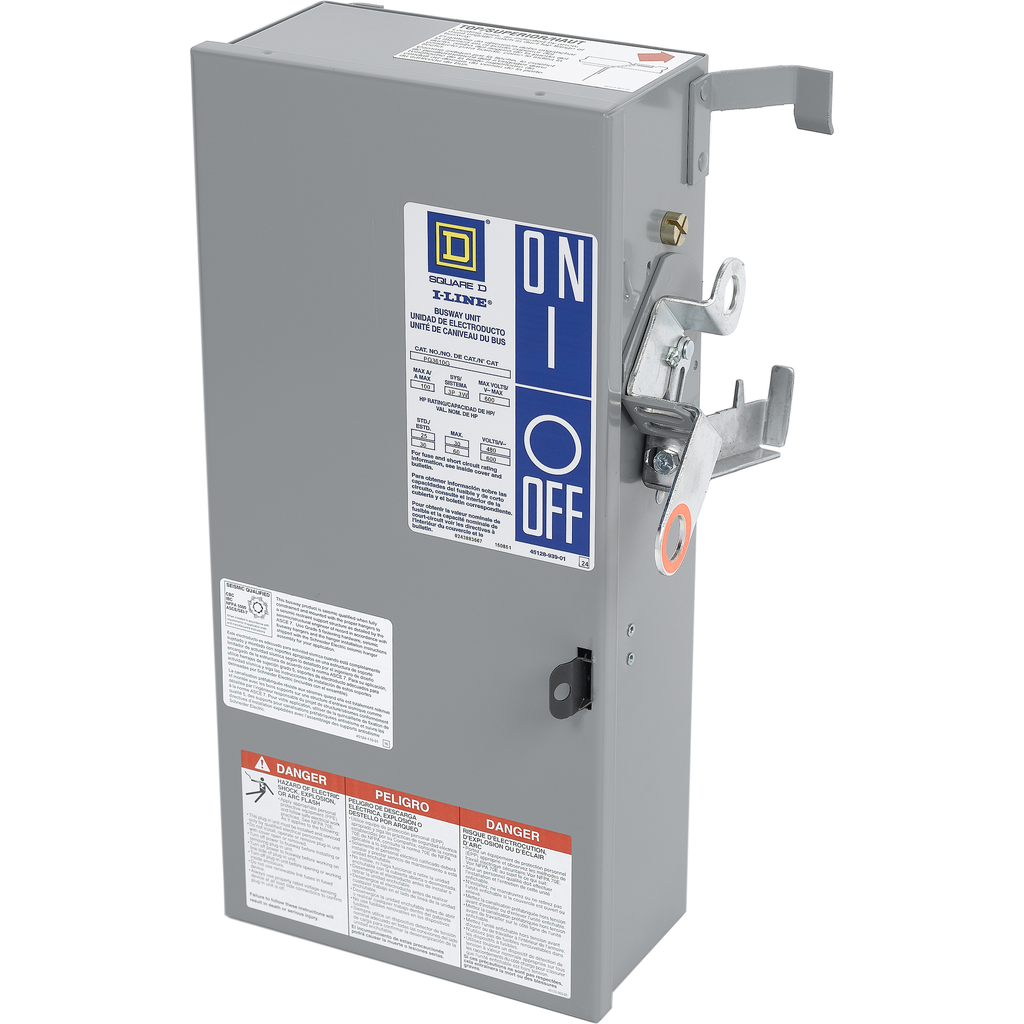

Busway, I-Line, Fusible plug in unit, 100A, 600V, 3 pole, Class H fuse
I-Line Busway offers a complete line of compatible, sandwich-type feeder and plug-in busway lengths, fittings, and plug-in units. I-Line plug-in busway has options to 1600A for circuit breaker plug-ins and 1200A for fusible plug-ins. Circuit breaker and fusible plug in units are available in 3 phase, 3 wire or 3 phase, 4 wire configurations. This fusible plug-in unit is 100A, 600VAC max, 3 pole, and 3 fuse + G. This unit uses a plug in connection. This plug-in unit accepts H, K, J or R fuses. I-Line Busway plug in units are UL listed and CSA certified.
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Product Certifications |
|
|---|---|
| Warranty | 18 months |
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP1407016EN |
| Sustainable Offer Status | Green Premium product |
| Pvc Free | Yes |
| California Proposition 65 | WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Bisphenol A (BPA), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
| China Rohs Regulation | Product out of China RoHS scope. Substance declaration for your information. |
| Circularity Profile | ENVEOLI1407016EN |
| Eu Rohs Directive | Compliant with Exemptions |
| [Ue] Rated Operational Voltage | 600 V AC |
| Disconnector Device Type | fusible disconnect |
| Busbar Description | ground |
| Fuse Type | H, K, J or R |
| [Ie] Rated Operational Current | 100 A |
| Electrical Connection | plug-in |
| Number Of Poles | 3 |
| Country of Origin | Mexico |
| Range Of Product | I-Line |
| Product Or Component Type | plug-in unit |
