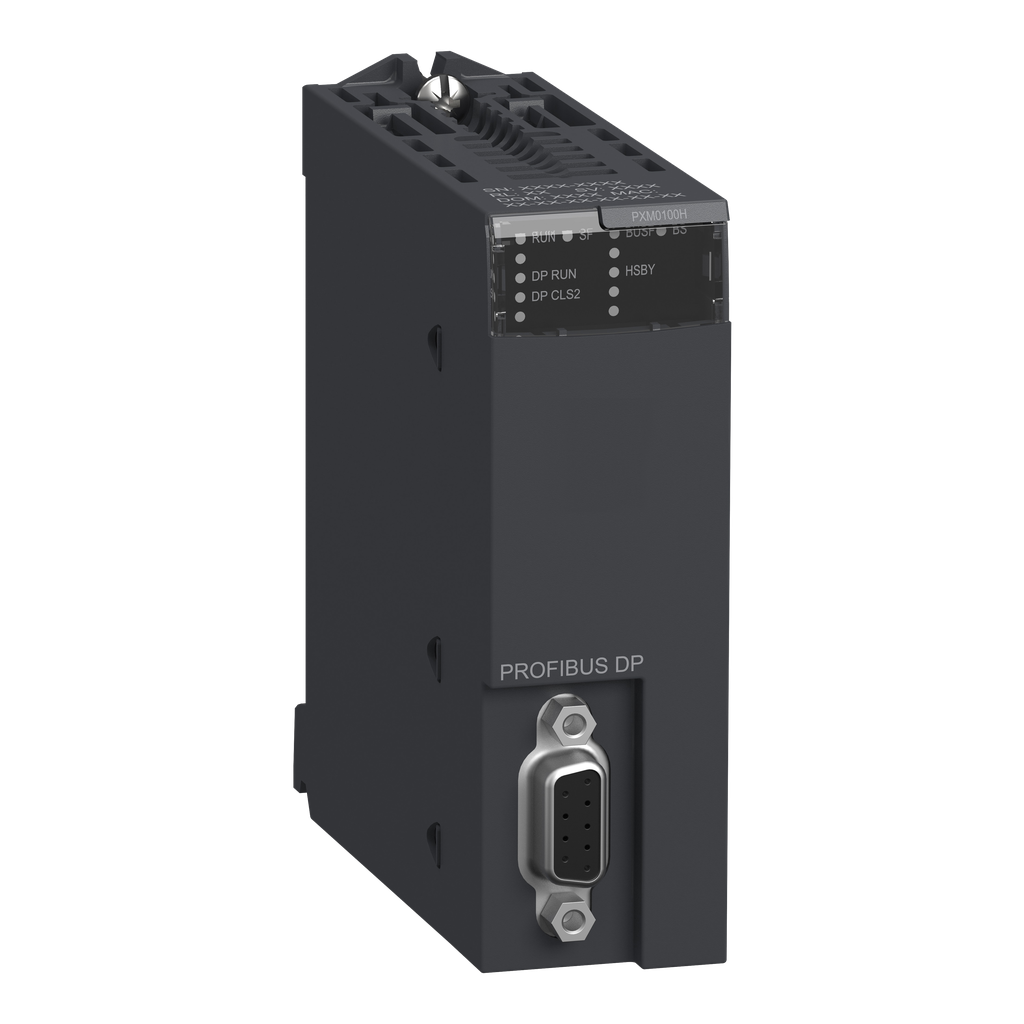

PMEPXM0100H
Communication module, Modicon M580, Profibus DP Master, for severe environments
Specifications
| Ambient Air Temperature For Operation | -20-70 °C |
|---|---|
| Directives |
|
| Ambient Air Temperature For Storage | -40-85 °C |
| Relative Humidity | 10-95 % |
| Protective Treatment | conformal coating |
| Operating Altitude | <= 6561.68 ft (2000 m) |
| Power Consumption In W |
|
| [Us] Rated Supply Voltage | 24 V DC internal power supply via rack |
| Transmission Support Medium | Profibus DP twisted shielded pairs cable |
| Transmission Rate |
|
| Net Weight | 0.270 kg |
| Current Consumption |
|
| Communication Service | implicit exchange of process data |
| Isolation Voltage | 1500 V 1 min 50/60 Hz |
| Number Of Server Device(S) | 125 |
| Integrated Connection Type | Profibus DP - 1 SUB-D 9-pin female |
| Physical Interface | DB9 connector |
| Bus Type | Profibus DP |
| Module Format | standard |
| Range Compatibility | Modicon M580 |
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| California Proposition 65 | WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
| Weee | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
| China Rohs Regulation | X |
| Eu Rohs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
| Country of Origin | France |
| Weight | 0.270 kg |
| Range Of Product | Modicon M580 |
| Product Or Component Type | Profibus communication module |
