PKOGTA7

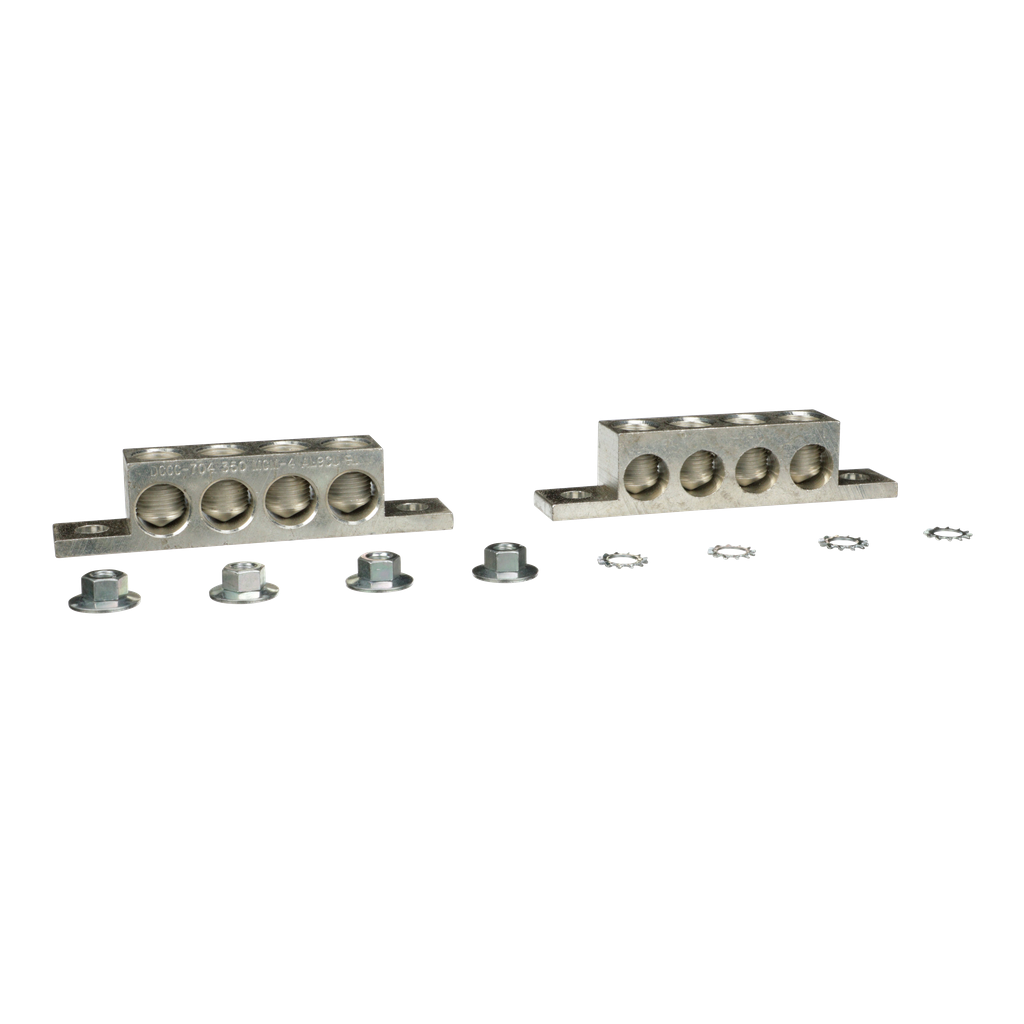

Safety switch accessory, heavy duty, equipment grounding kit, E4, 800A
Schneider Electric's Square D heavy duty safety switch is designed to be tough, reliable and provide exceptional performance in the most grueling conditions. All heavy duty safety switches feature a quick-make, quick-break operating mechanism, a dual cover interlock, and a color coded indicator handle. They also come with many field installable or factory installed accessories. This equipment grounding kit is one of the available accessories. The grounding bar is rated for 800A and has 4 terminals which accept 4 AWG to 350kcmil conductor. The grounding kits are UL listed.
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Tightening Torque | 275-275 lbf.in (AWG 4...350 kcmil) |
|---|---|
| Line Rated Current |
|
| Awg Gauge | 350 kcmil copper or aluminium |
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP1304031 |
| Sustainable Offer Status | Green Premium product |
| California Proposition 65 | WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
| China Rohs Regulation | Product out of China RoHS scope. Substance declaration for your information. |
| Circularity Profile | N/A |
| Eu Rohs Directive | Compliant with Exemptions |
| Country of Origin | Mexico |
| Range Of Product | Square D |
| Product Or Component Type | safety switch grounding bar |
| Series Name | heavy duty |
| Warranty | 18 months |
