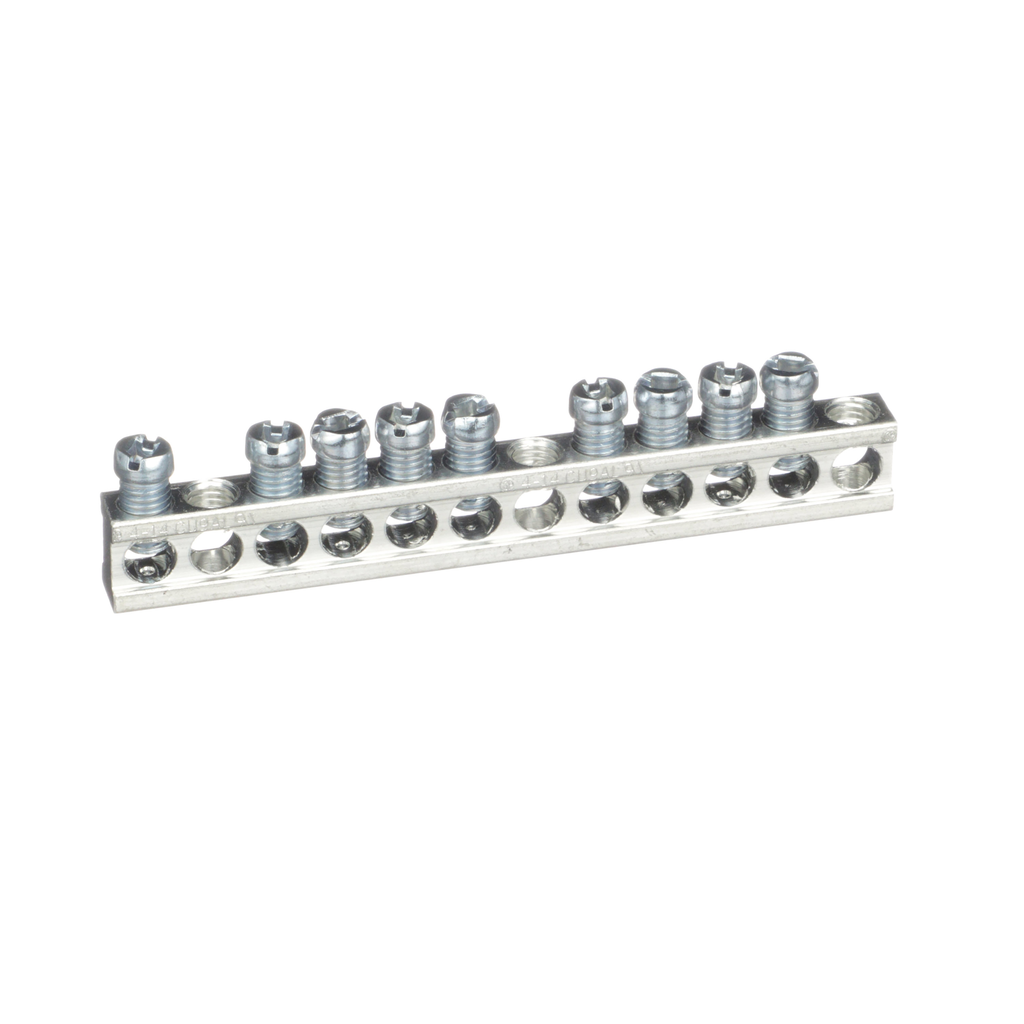

PK9GTA
Panelboard accessory, NQ, ground bar kit, 12 circuits, 225A max
QO Load Centers offer premium features by allowing QO breakers, ground fault interrupters, arc fault interrupters, and surge arresters to be installed inside. They are designed to meet residential, commercial, and industrial requirements to protect electrical systems, equipment, and people. This part has been verified to adhere the data sheet specifications by the Underwriters Laboratories (UL) Listed and CSA.
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Country of Origin | United States |
|---|---|
| Length | 96 mm |
| Height | .437 in |
| Range Of Product | QO |
| Product Or Component Type | bar |
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP2212001 |
| Sustainable Offer Status | Green Premium product |
| Toxic Heavy Metal Free | Yes |
| California Proposition 65 | WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov |
| Reach Free Of Svhc | Yes |
| China Rohs Regulation | Pro-active China RoHS declaration (out of China RoHS legal scope) |
| Circularity Profile | N/A |
| Eu Rohs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
| Provided Equipment | 2 screw |
| Height | .437 in |
| Tightening Torque |
|
| Maximum Length Of Segment | 80 mm |
| Bar Length | 96 mm |
| Awg Gauge |
|
| Depth | 0.312 in |
| Number Of Connectors | 9 |
| Device Mounting | direct mounting back of enclosure |
| Warranty | 18 months |
