PK7GTA

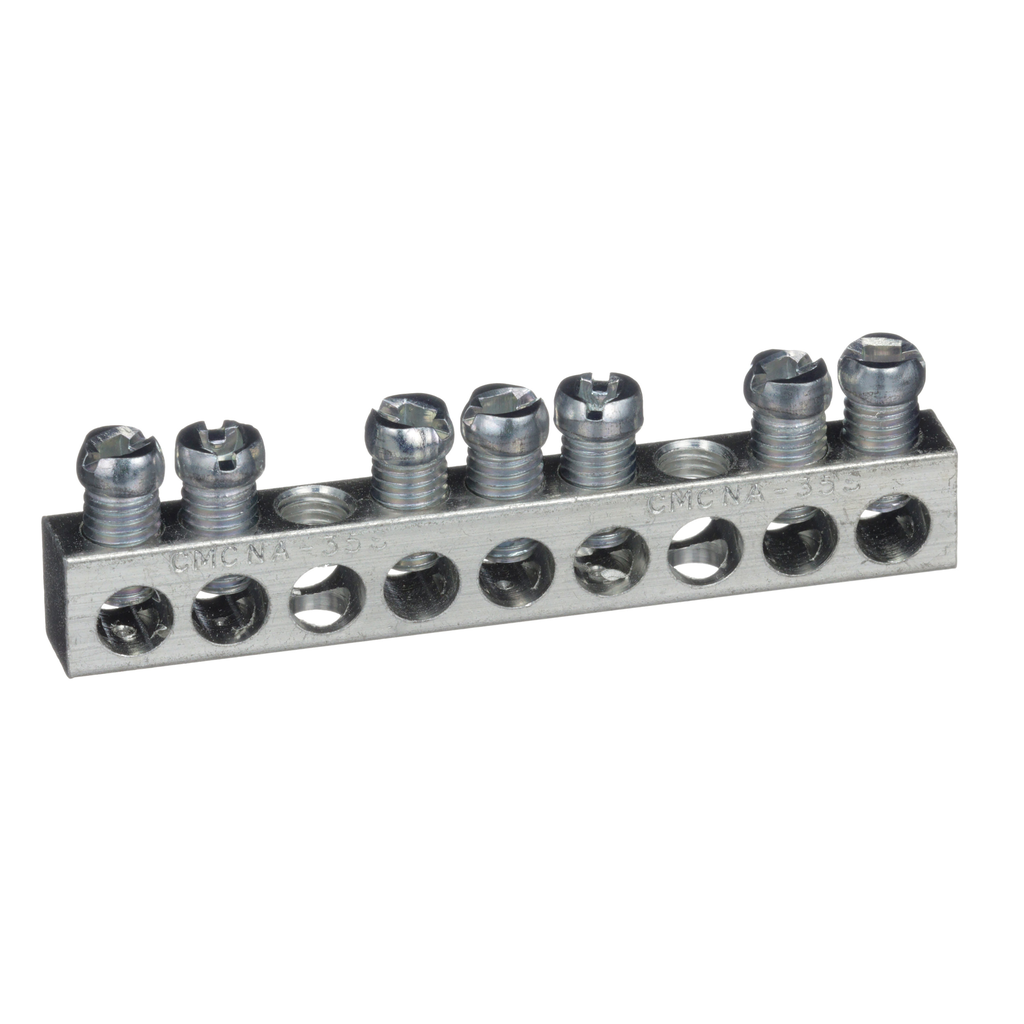

Load center accessory, QO/Homeline, ground bar kit, 7 terminals
QO/Homeline® Load Centers offer premium features by allowing QO breakers, ground fault interrupters, arc fault interrupters, and surge arresters to be installed inside. They are designed to meet residential, commercial, and industrial requirements to protect electrical systems, equipment, and people. This part has been verified to adhere the data sheet specifications by the Underwriters Laboratories (UL) Listed and CSA.
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Country of Origin | United States |
|---|---|
| Length | 73 mm |
| Height | .437 in |
| Range Of Product | QO |
| Product Or Component Type | bar |
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP2212001 |
| Sustainable Offer Status | Green Premium product |
| Toxic Heavy Metal Free | Yes |
| California Proposition 65 | WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov |
| Reach Free Of Svhc | Yes |
| China Rohs Regulation | Pro-active China RoHS declaration (out of China RoHS legal scope) |
| Circularity Profile | N/A |
| Eu Rohs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
| Provided Equipment | 2 screw |
| Height | .437 in |
| Tightening Torque |
|
| Maximum Length Of Segment | 32 mm |
| Bar Length | 73 mm |
| Awg Gauge |
|
| Depth | 0.312 in |
| Number Of Connectors | 7 |
| Device Mounting | direct mounting back of enclosure |
| Warranty | 18 months |
Documents
- QO and Homeline Load Centers and Circuit Breaker Installation Instructions - S1B33894 (pdf)
- PK7GTA Grounding Bar Kit Installation Instructions (2009) - 40272-078-04 (pdf)
- QO Circuit Breakers and Loadcentres (Illustrated) Brochure - QO+brochure+EN (pdf)
- Square D QO Load Centers and Circuit Breakers Brochure - 998-1170221_US_B (pdf)
- Small and medium project solutions, available now - brochure - 998-21381316_GMA-US_Small+and+medium+project+solutions+available+now (pdf)
- A Guide to Your Square D Electrical Distribution System - Brochure - 0102BR0201 (pdf)
- Square D Homeline Load Centers and Circuit Breakers Brochure - 1170BR1801 (pdf)
- Spec Sheet
- Square D QO and Homeline Load Centers and Enclosures Catalog - 1100CT0501 (pdf)
- Digest Catalog 01: Load Centers - 0100CT1901_SEC-01 (pdf)
- Load Centers: Section 1 - Digest 179 (2024) - Load-Centers-CSEDs-Digest-Catalog-0100CT2401-SEC-01 (pdf)
