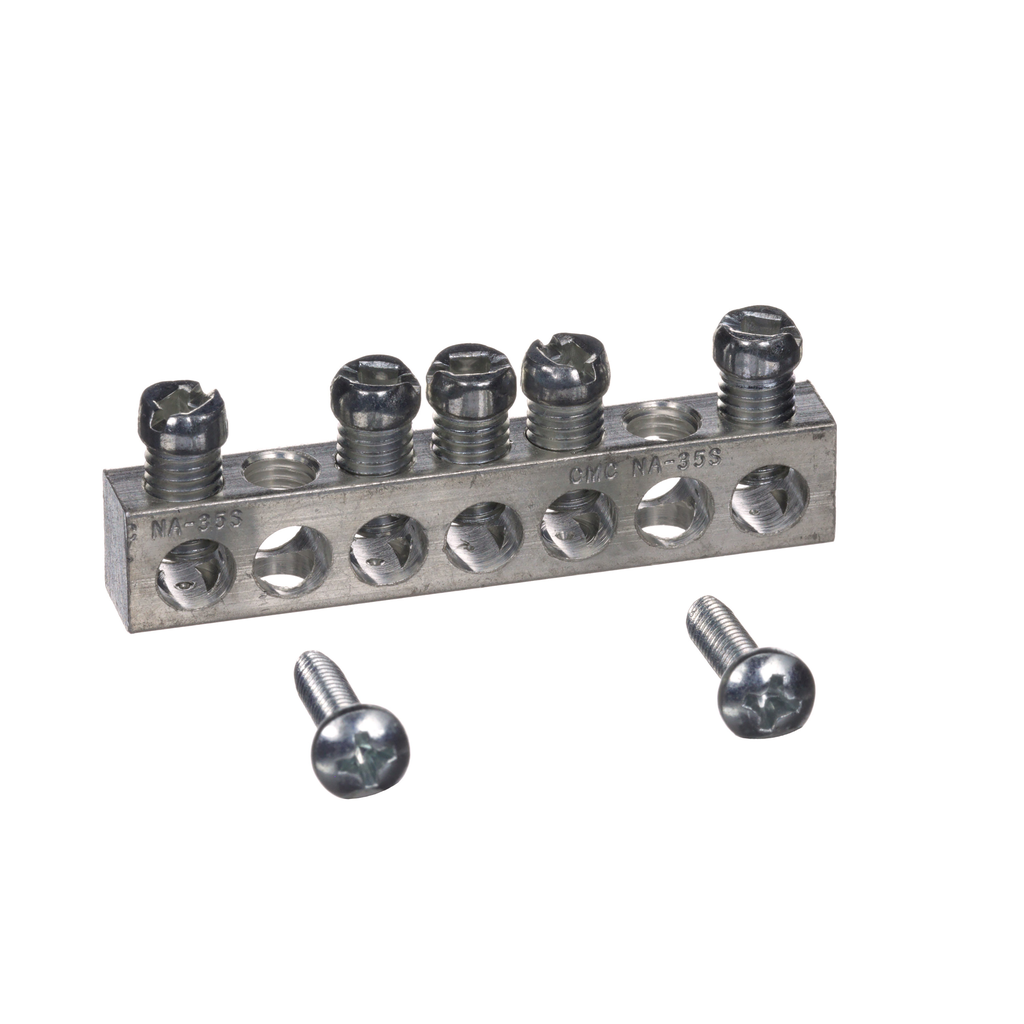

Load center accessory, QO/Homeline, ground bar kit, 5 terminals
QO Load Centers offer premium features like QO breakers, ground arc fault interrupters and surge arresters. QO load centers are designed for residential and industrial use to protect electrical systems, equipment and people. Systems are single or three phase and have indoor and outdoor versions. QO Load Centers enable the use of a full complement of accessories. This grounding bar kit has five terminal connections. Each terminal connection will accept one 14 AWG to 4 AWG wire or two 14 AWG or 12 AWG copper wires. The grounding bar will also accept one 12 AWG to 4 AWG wire or two 12 AWG or 10 AWG aluminum wires The grounding bar is 2.25 inches long. The grounging bar is mounted directly to the back of the enclosure with two screws.
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Rohs Exemption Information | Yes |
|---|---|
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP2212001 |
| Sustainable Offer Status | Green Premium product |
| Toxic Heavy Metal Free | Yes |
| California Proposition 65 | WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov |
| Reach Free Of Svhc | Yes |
| China Rohs Regulation | Pro-active China RoHS declaration (out of China RoHS legal scope) |
| Circularity Profile | N/A |
| Eu Rohs Directive | Compliant |
| Country of Origin | United States |
| Length | 57 mm |
| Height | .437 in |
| Range Of Product | QO |
| Product Or Component Type | bar |
| Provided Equipment | 2 screw |
| Height | .437 in |
| Tightening Torque |
|
| Maximum Length Of Segment | 32 mm |
| Bar Length | 57 mm |
| Awg Gauge |
|
| Depth | 0.312 in |
| Number Of Connectors | 5 |
| Device Mounting | direct mounting back of enclosure |
| Warranty | 18 months |
