PK5FL

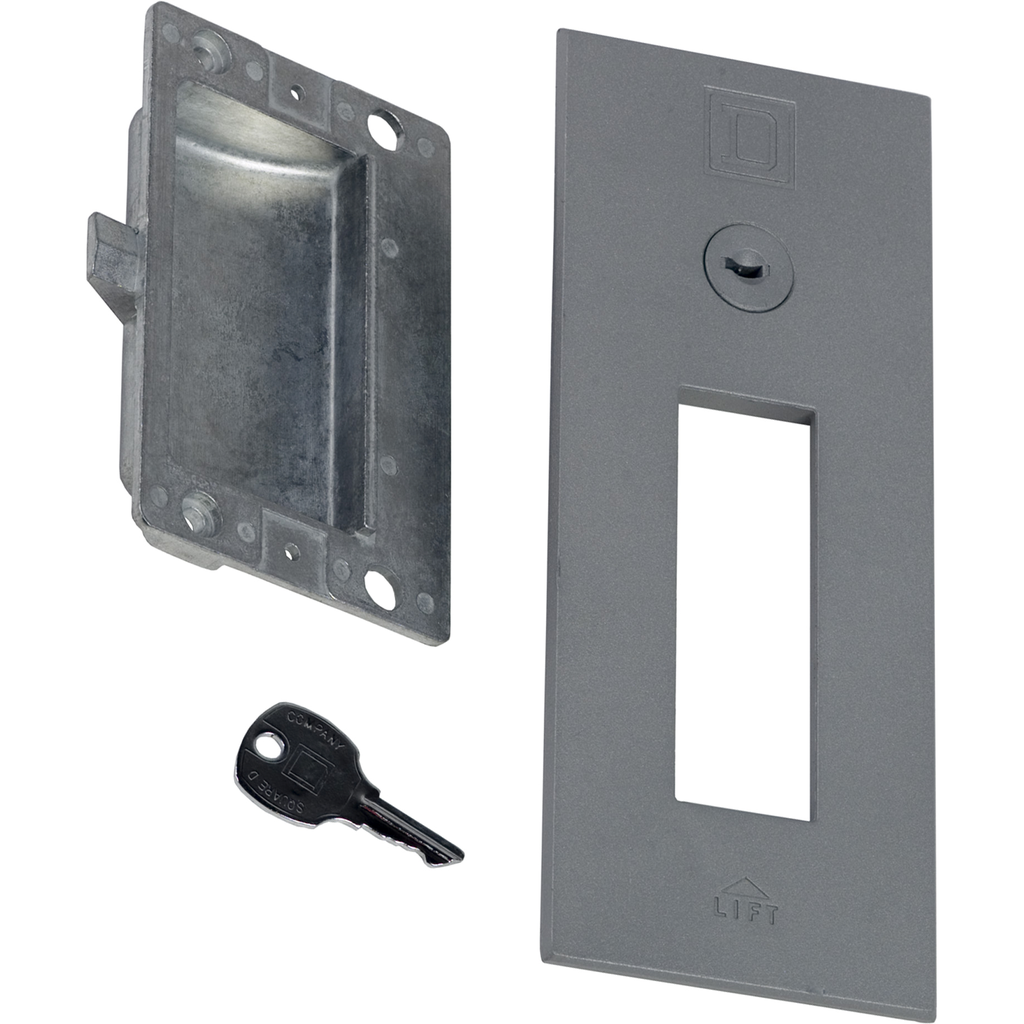

Door Lock, I-Line, NEMA 1
Square D™-brand I-Line™ circuit breaker power distribution panelboards are for use on AC or DC systems. The panels, labeled cULus (compliance to UL and CSA standards certified by UL) are also Underwriters Laboratories® (UL®) Listed under File E33139. The following are suitable for use as service entrance equipment such as all main circuit breaker panelboards. I-Line circuit breaker panelboards are available as 400–1200 A main lugs only and 100–1200 A main circuit breakers. I-Line circuit breaker panelboards are designed, manufactured, and tested to comply to UL, CSA, NFPA, NEMA & W-P standards. This door lock is used with NEMA 1 I-Line Panelboards.
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Nema Degree Of Protection | NEMA 1 |
|---|---|
| Warranty | 18 months |
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP1407017EN |
| Sustainable Offer Status | Green Premium product |
| Pvc Free | Yes |
| California Proposition 65 | WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Bisphenol A (BPA), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
| China Rohs Regulation | Product out of China RoHS scope. Substance declaration for your information. |
| Circularity Profile | N/A |
| Eu Rohs Directive | Compliant with Exemptions |
| Height | 13 mm |
| Net Weight | 0.45 kg |
| Width | 140 mm |
| Depth | 102 mm |
| Line Rated Current | 400-400 A |
| Country of Origin | United States |
| Width | 140 mm |
| Height | 13 mm |
| Weight | 0.45 kg |
| Range Of Product | I-Line |
| Product Or Component Type | door lock |
Documents
- Supplemental Digest 04: Panelboards (MAY 2022) - SD_0100CT1902_SEC-04 (pdf)
- Supplemental Digest 13: Obsolete Panelboards (2019) - SD_0100CT1902_SEC-13 (pdf)
- Square D I-Line Circuit Breaker Panelboards Catalog - Class 2110 - 2110CT9701 (pdf)
- Square D NQ Circuit Breaker Panelboards Catalog - 1640CT0801 (pdf)
- Spec Sheet
