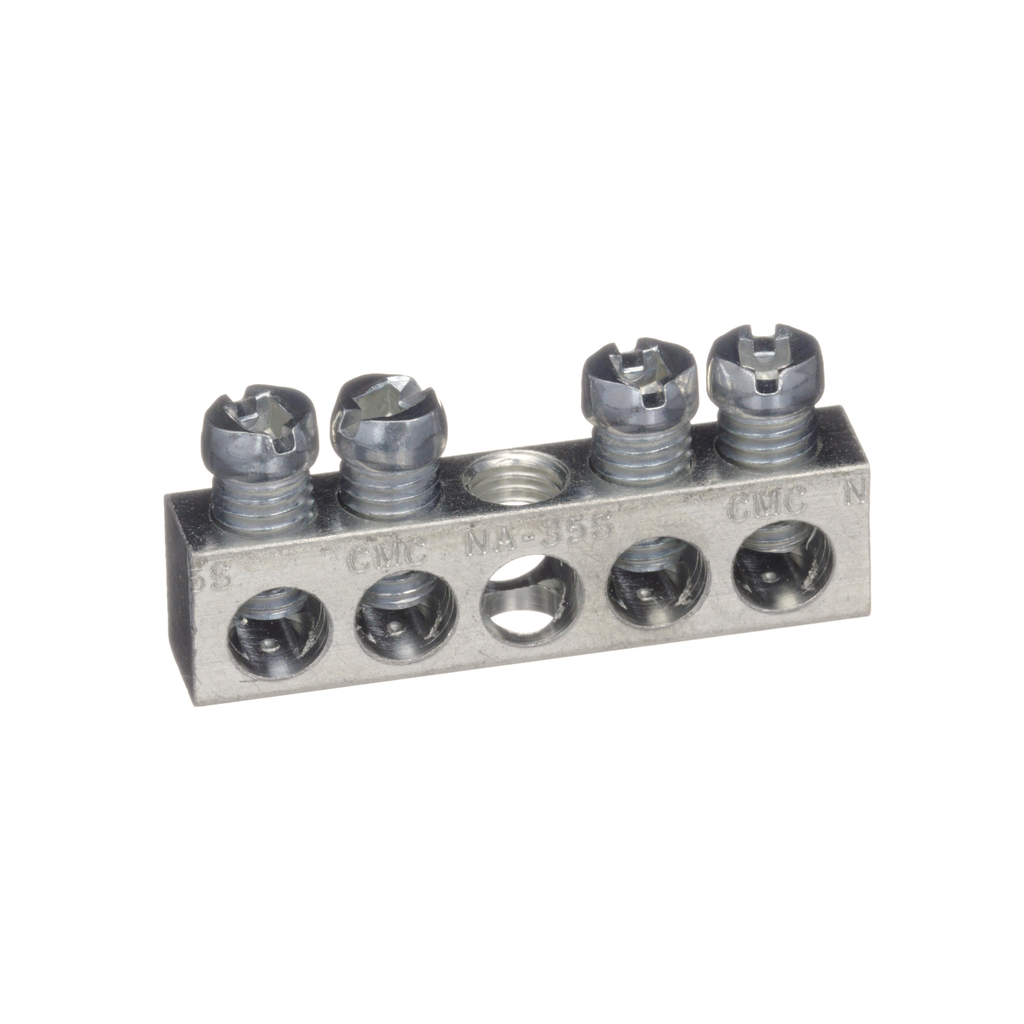

Load center accessory, QO/Homeline, ground bar kit, 4 terminals
QO Load Centers offer premium features by allowing QO breakers, ground fault interrupters, arc fault interrupters, and surge arresters to be installed inside. QO Load Centers are designed for residential and industrial use to protect electrical systems, equipment, and people. They are available in both traditional and plug on neutral configurations. Indoor enclosures are designed to rotate 180 degrees to accommodate top or bottom service entrance. Single and three phase options are available. The bus bars are tin plated copper and are shielded. Indoor and outdoors enclosures are an option. QO Load Centers enable the use of a full complement of accessories. This accessory is a ground bar kit. It has 4 terminals.
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Country of Origin | United States |
|---|---|
| Length | 1.67 in |
| Height | .437 in |
| Range Of Product | QO |
| Product Or Component Type | bar |
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP2212001 |
| Sustainable Offer Status | Green Premium product |
| Toxic Heavy Metal Free | Yes |
| California Proposition 65 | WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov |
| Reach Free Of Svhc | Yes |
| China Rohs Regulation | Pro-active China RoHS declaration (out of China RoHS legal scope) |
| Circularity Profile | N/A |
| Eu Rohs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
| Provided Equipment | 2 screw |
| Height | .437 in |
| Tightening Torque |
|
| Bar Length | 1.67 in |
| Awg Gauge |
|
| Depth | 0.312 in |
| Number Of Connectors | 4 |
| Device Mounting | direct mounting back of enclosure |
| Warranty | 18 months |
Documents
- PK3GTA-1, PK4GTA, PK9GTA-1 Equipment Grounding Bar Kits Installation Instructions - 40271-769-02 (pdf)
- PK4GTA Grounding Bar Kit Installation Instructions - 40272-069-03 (pdf)
- QO Circuit Breakers and Loadcentres (Illustrated) Brochure - QO+brochure+EN (pdf)
- Square D QO Load Centers and Circuit Breakers Brochure - 998-1170221_US_B (pdf)
- Small and medium project solutions, available now - brochure - 998-21381316_GMA-US_Small+and+medium+project+solutions+available+now (pdf)
- A Guide to Your Square D Electrical Distribution System - Brochure - 0102BR0201 (pdf)
- Square D Homeline Load Centers and Circuit Breakers Brochure - 1170BR1801 (pdf)
- Spec Sheet
- Square D QO and Homeline Load Centers and Enclosures Catalog - 1100CT0501 (pdf)
- Digest Catalog 01: Load Centers - 0100CT1901_SEC-01 (pdf)
- Load Centers: Section 1 - Digest 179 (2024) - Load-Centers-CSEDs-Digest-Catalog-0100CT2401-SEC-01 (pdf)
