PK27GTACU
Panelboard accessory, NQ/NF, equipment ground bar, 100A to 800A

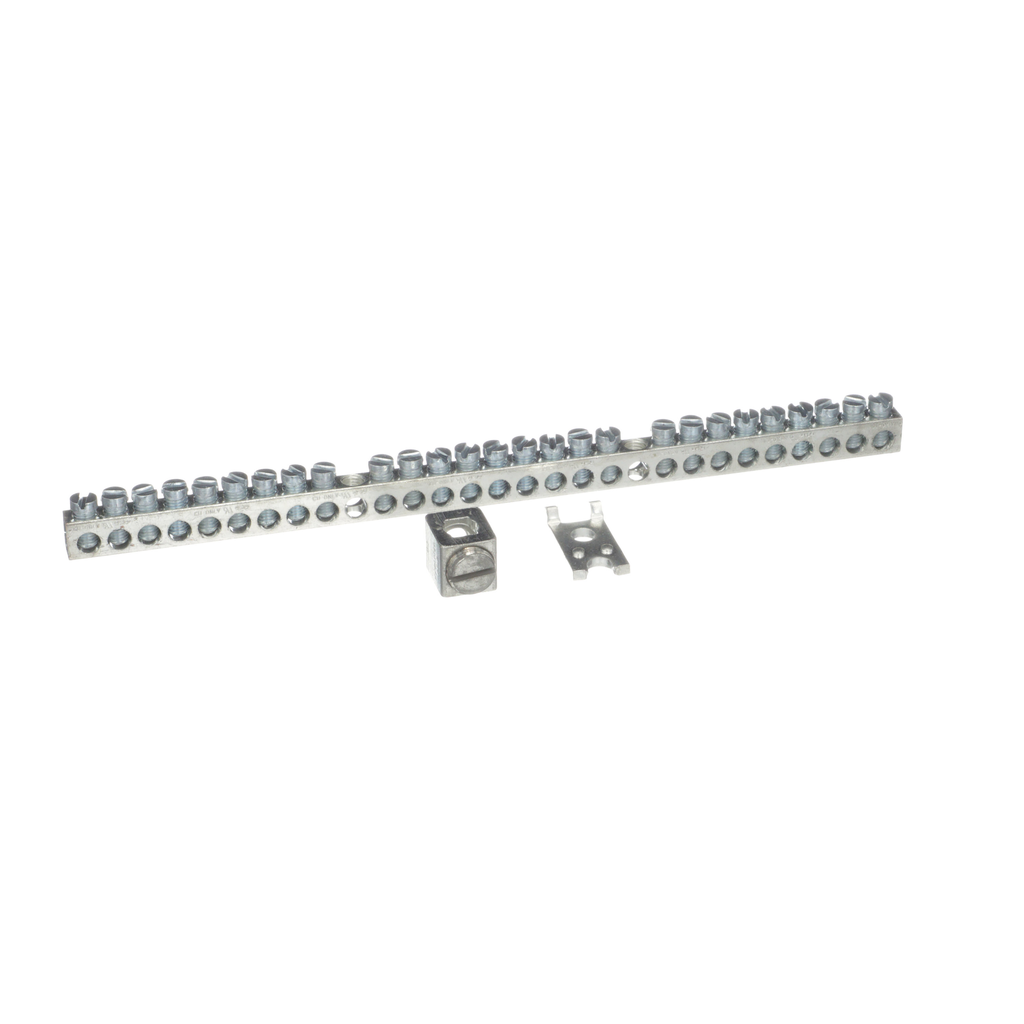

NQ Panelboards are versatile panelboards that feature a wide selection of circuit breakers, accessories, and ready to install kits. This accessory is a copper equipment ground bar. It has 27 terminations which accept #14 to #4 AWG wire. A lug mounted to top of ground bar accepts #6 to 2/0 AWG wire. It complies with UL standards.
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Country of Origin | Mexico |
|---|---|
| Weight | 0.11 kg |
| Product Or Component Type | grounding kit |
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP2212001 |
| Sustainable Offer Status | Green Premium product |
| Toxic Heavy Metal Free | Yes |
| California Proposition 65 | WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Bisphenol A (BPA), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
| Reach Free Of Svhc | Yes |
| China Rohs Regulation | Pro-active China RoHS declaration (out of China RoHS legal scope) |
| Circularity Profile | N/A |
| Eu Rohs Directive | Compliant |
| Tightening Torque | 50-50 lbf.in (AWG 6...AWG 2/0) |
| Number Of Circuits | 27 |
| Material | copper |
| Net Weight | 0.11 kg |
| Line Rated Current | 100-800 A |
| Awg Gauge | AWG 14...AWG 4 copper |
| Warranty | 18 months |
