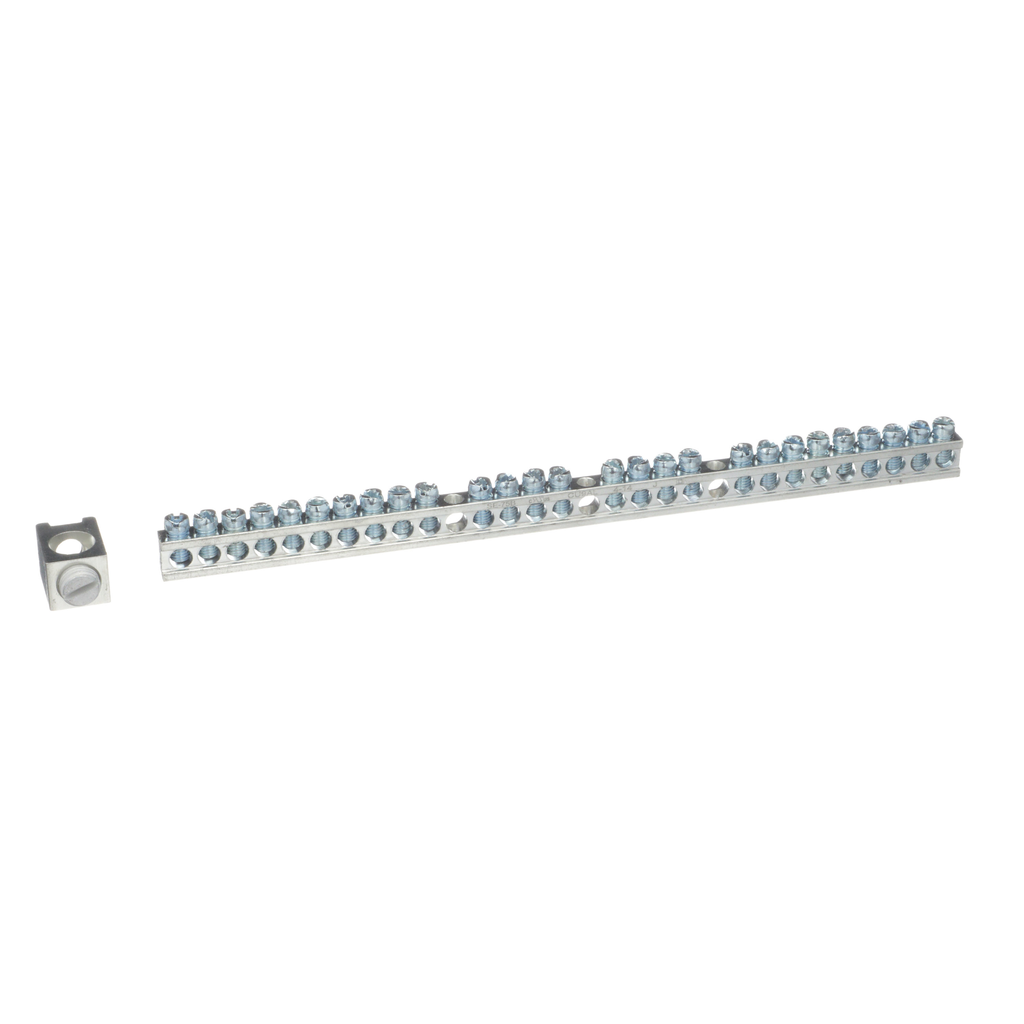

PK27GTA
Load center accessory, QO/Homeline, ground bar kit, 27 terminals
QO Load Centers offer premium features by allowing QO breakers, ground arc fault interrupters arc fault interrupters and surge arresters to be installed inside QO Load Centers enable the use of a full complement of accessories. Systems can be single or three phase and have indoor and outdoor versions. Indoor enclosures are designed to rotate 180 degrees to accommodate top or bottom service entrance. QO Load Centers feature plated copper bus, providing superior performance and durability. This QO Load Center accessory is grounding bar kit, 27 terminals. This grounding bar is UL component recognized and CSA certified.
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Height | .437 in |
|---|---|
| Tightening Torque | 50 lb.in, AWG 6...AWG 2/0 |
| Depth | 0.312 in |
| Number Of Connectors |
|
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP2212001 |
| Sustainable Offer Status | Green Premium product |
| Toxic Heavy Metal Free | Yes |
| California Proposition 65 | WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov |
| Reach Free Of Svhc | Yes |
| China Rohs Regulation | Pro-active China RoHS declaration (out of China RoHS legal scope) |
| Circularity Profile | N/A |
| Eu Rohs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
| Country of Origin | United States |
| Height | .437 in |
| Range Of Product | QO |
| Product Or Component Type | bar |
| Warranty | 18 months |
