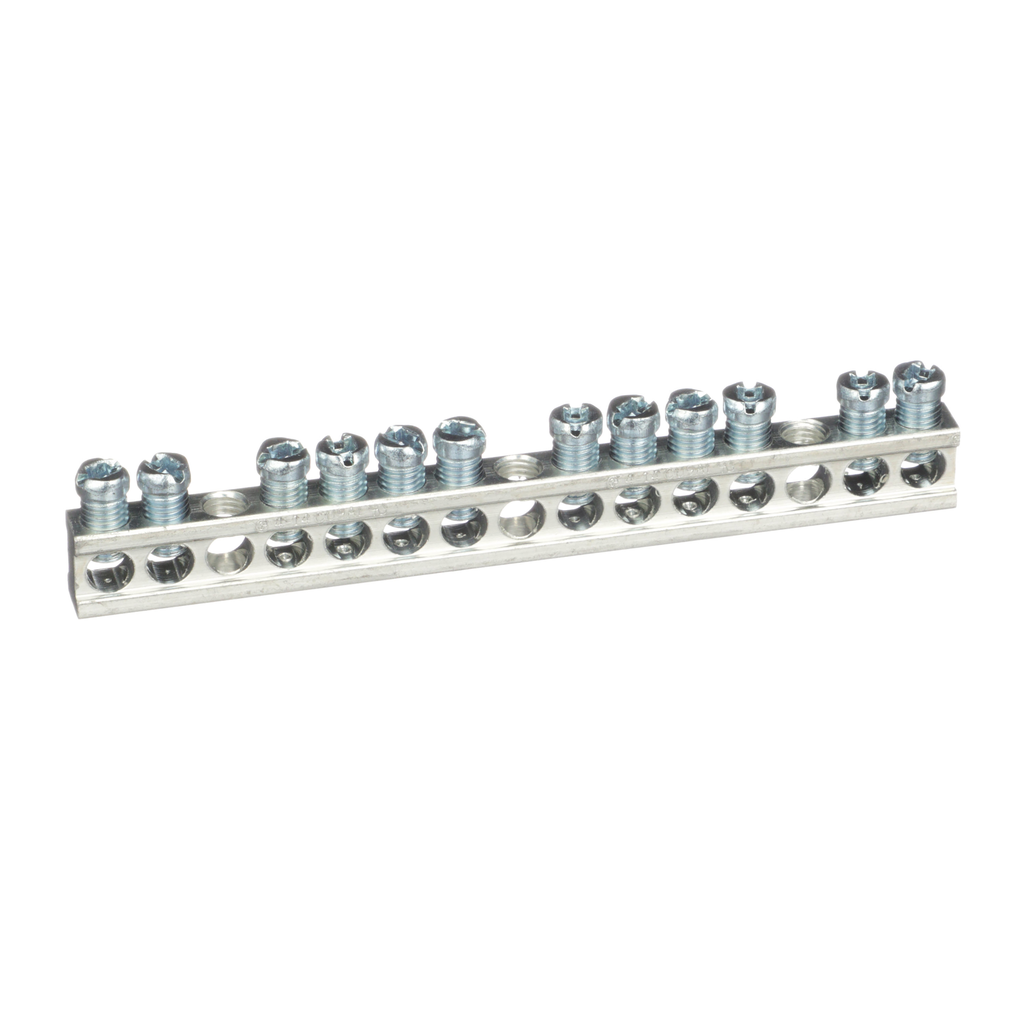

PK12GTA - Load center accessory, QO/Homeline, ground bar kit, 12 terminals

PK12GTA

Load center accessory, QO/Homeline, ground bar kit, 12 terminals

QO® Circuit Breaker Load Centers, PK12GTA, from Square D® are Underwriters Laboratories (UL) Listed and CSA rated panelboards. They are designed to meet residential, commercial, and industrial requirements to protect electrical systems, equipment, and people.

Brand: Schneider Electric

Add to Quote Catalogue

Specifications

Country of Origin	United States
Length	119 mm
Height	.437 in
Range Of Product	QO
Product Or Component Type	bar
Provided Equipment	2 screw
Height	.437 in
Tightening Torque	30 lb.in mounting screw 30 lb.in 20 lb.in, AWG 14...AWG 10, copper 20 lb.in, AWG 12...AWG 10, aluminium 35 lb.in, AWG 6...AWG 4 25 lb.in, AWG 8 25 lb.in, AWG 14...AWG 12, copper 25 lb.in, AWG 12...AWG 10, aluminium
Maximum Length Of Segment	80 mm
Bar Length	119 mm
Awg Gauge	AWG 14...AWG 4 copper AWG 12...AWG 4 aluminium
Depth	0.312 in
Number Of Connectors	12
Device Mounting	direct mounting back of enclosure
Rohs Exemption Information	Yes
Mercury Free	Yes
Environmental Disclosure	ENVPEP2212001
Sustainable Offer Status	Green Premium product
Toxic Heavy Metal Free	Yes
California Proposition 65	WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Reach Free Of Svhc	Yes
China Rohs Regulation	Pro-active China RoHS declaration (out of China RoHS legal scope)
Circularity Profile	N/A
Eu Rohs Directive	Pro-active compliance (Product out of EU RoHS legal scope)
Warranty	18 months
