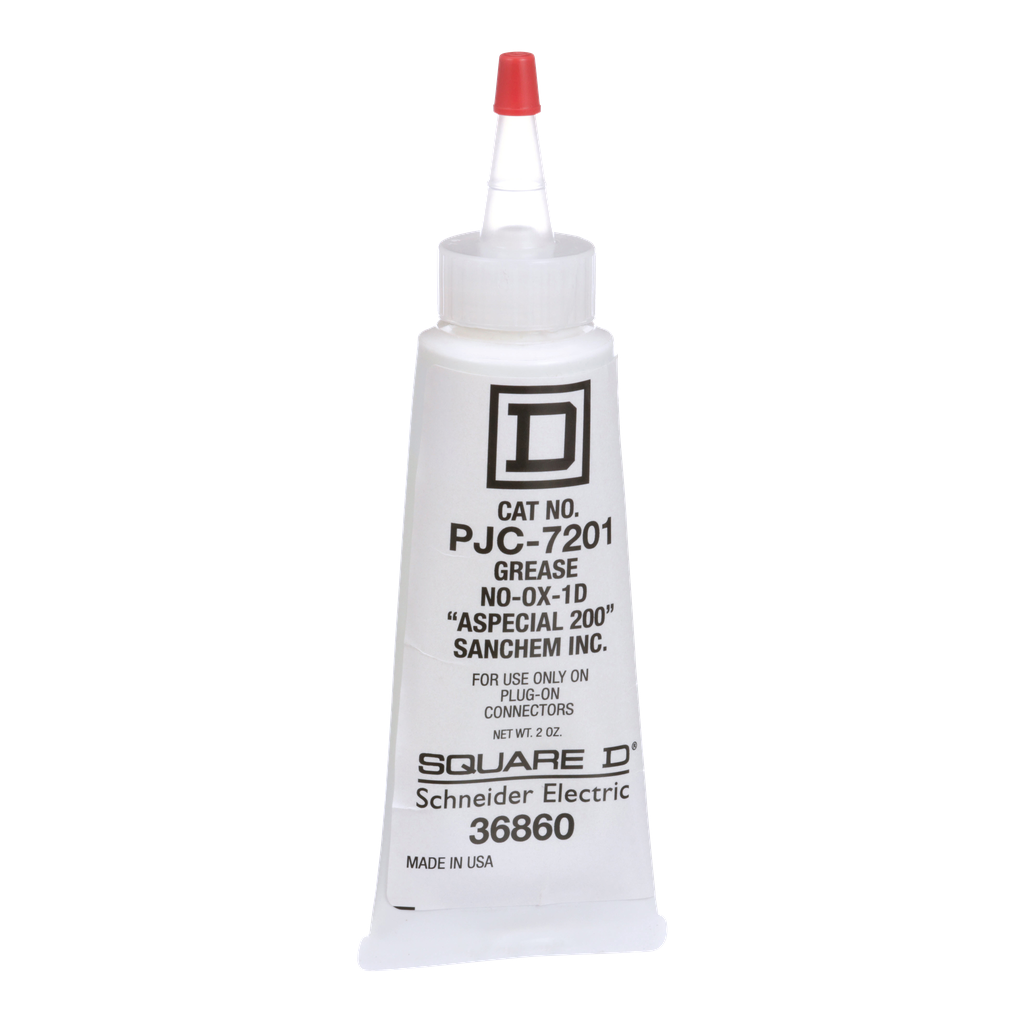

PJC7201
Circuit breaker accessory, MasterPacT NW, compound, electric joint, use w/I-Line breakers, model-V breakers, QMB Plug-On
This accessory is a factory joint compound that is supplied when there are plug on connectors and it helps with electrical compounds. The products that this come with are I-Line circuit breakers, I-Line busway plug-on units, I-Line panelboards and switchboards, QMB plug-on switches and motor control center plug-on units. They are designed to meet residential, commercial, and industrial requirements to protect electrical systems, equipment, and people.
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Country of Origin | United States |
|---|---|
| Range Of Product | MasterPact NW |
| Circuit Breaker Type | standard |
| Warranty | 18 months |
| China Rohs Regulation | Product out of China RoHS scope. Substance declaration for your information. |
| Eu Rohs Directive | Not applicable, out of EU RoHS legal scope |
Documents
- Speed-D™ Service and Distribution Switchboards Installation Instructions - 80244-812-08 (pdf)
- PowerPacT B One-pole I-Line Circuit Breakers and Automatic Switches - Installation Instructions - EAV91191+Rev01+1P+B+I-Line+NA+ (pdf)
- PowerPacT B I-Line Circuit Breakers Installation Instructions - GDE55876 (pdf)
- MasterPacT MTZ2 / MTZ3 / NW Metering Current Transformers Installation Instructions - 48049-157-02 (pdf)
- Spec Sheet
- Supplemental Digest 03: Molded Case Circuit Breakers and Enclosures (2019) - SD_0100CT1902_SEC-03 (pdf)
