PINQO

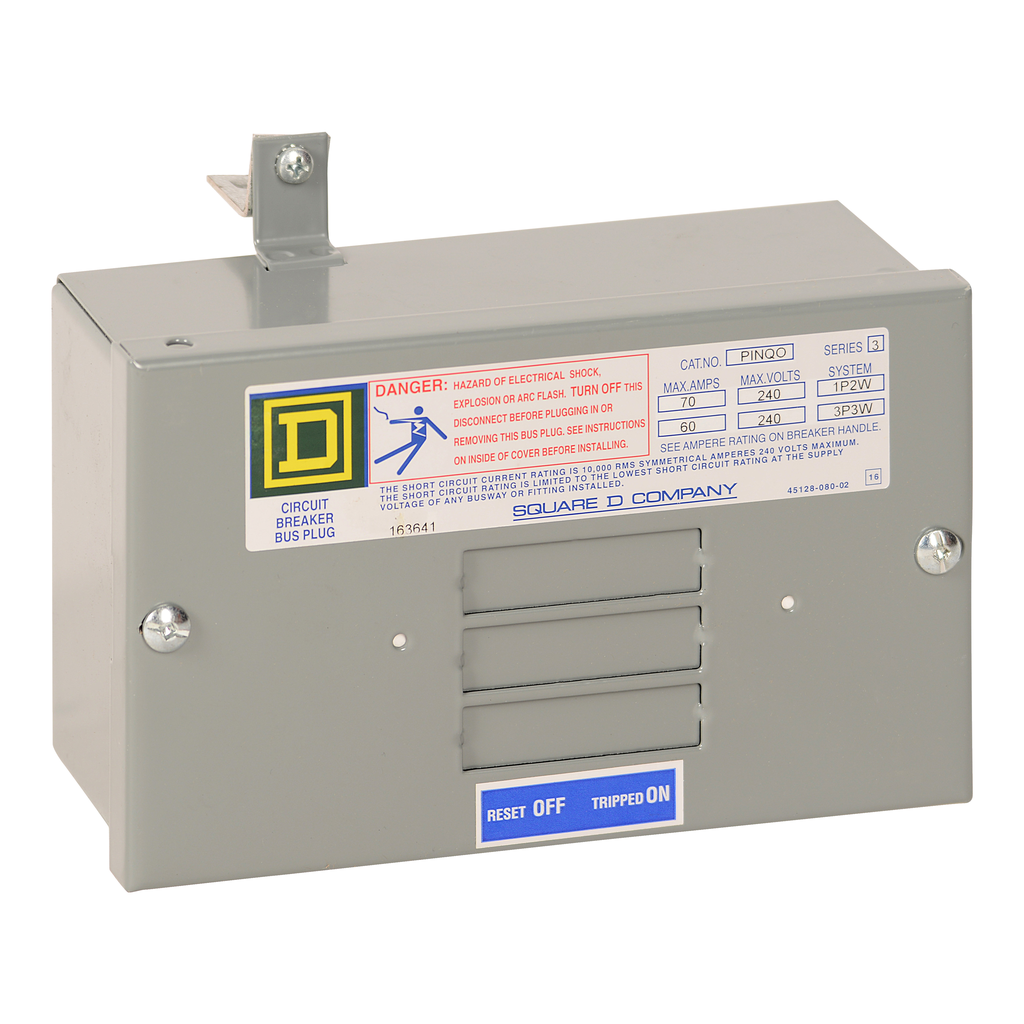

Busway, plug in, circuit breaker enclosure, 70A, QO circuit breaker, single phase 3 wire, 3 phase 4 wire
Powerbus busway construction consists of a light-weight electrical grade all aluminum housing with up to five silver plated copper conductor bars for maximum electrical efficiency. The total product offer includes straight sections, fittings, accessories, and plug-in units for a total installation. This busway enclosure is has a maximum 100 A ratings. This unit will accept up to a 70A QO circuit breakers.
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Rohs Exemption Information | Yes |
|---|---|
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP1410002EN |
| Sustainable Offer Status | Green Premium product |
| California Proposition 65 | WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Bisphenol A (BPA), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
| China Rohs Regulation | Product out of China RoHS scope. Substance declaration for your information. |
| Circularity Profile | N/A |
| Eu Rohs Directive | Compliant with Exemptions |
| Country of Origin | United States |
| Range Of Product | I-Line |
| Circuit Breaker Type | QO |
| Product Or Component Type | enclosure |
| Warranty | 18 months |
| Line Rated Current | 70-70 A |
| Mounting Mode | plug-in |
| [Ue] Rated Operational Voltage | 240 V AC |
