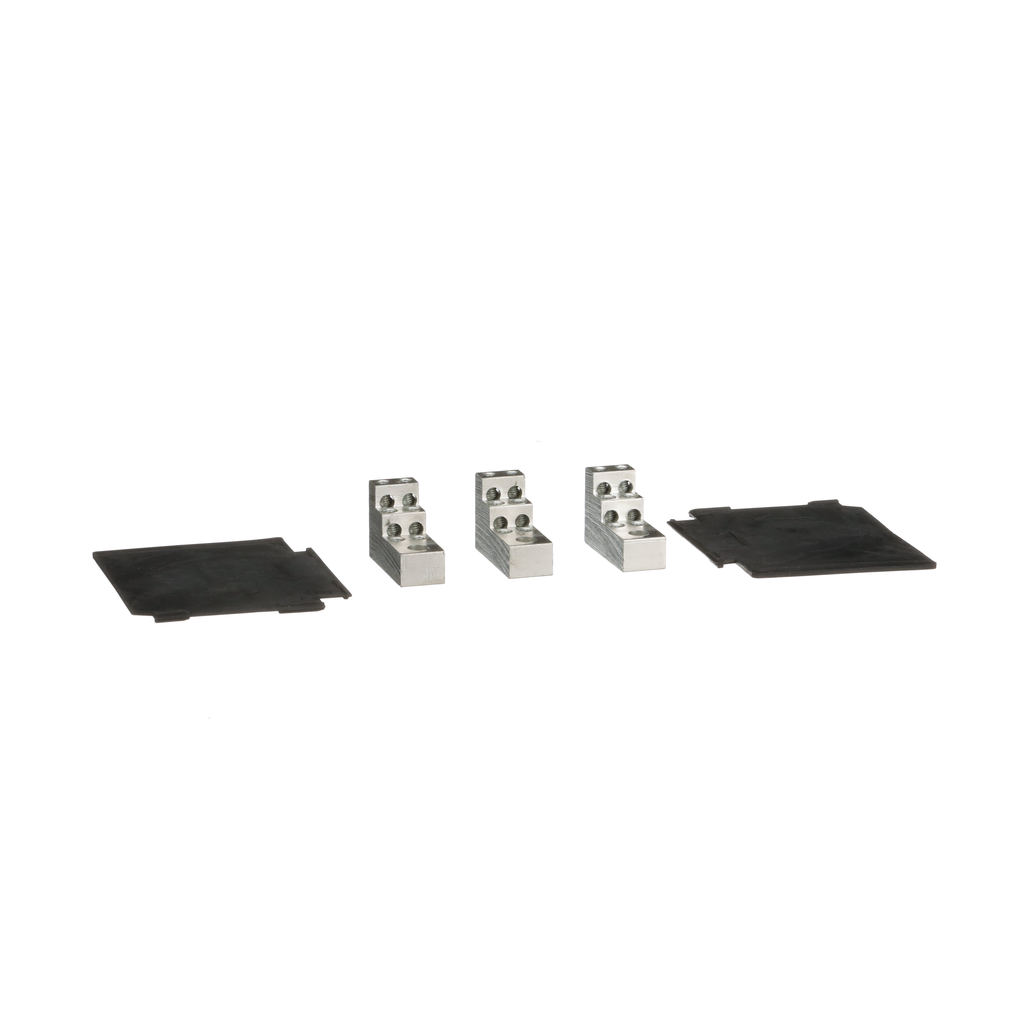

Power distribution connector, PowerPacT B, circuit breaker, 125A, 14 to 6AWG
Square D PowerPact family is industry leading innovation and protection for heavy duty commercial and industrial appliacations PowerPact B-frame circuit breakers provides economical thermal-magnetic circuit protection in a compact size Power distribution connectors can be used for multiple load wire connections on one circuit breaker in place of standard distribution block to save space and time. The connectors are attached to circuit breaker terminals equipped with separately provided terminal nut connectors. This power distribution connectors are used for PowerPact B-frame breakers with current rating up to 125A and has height as 1in. Kit contents mounting hardware and lugs, comes as 3 pieces in kit. Wire terminal data is performed as (6) AWG 14 - AWG 6
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Conductor Material |
|
|---|---|
| Connections - Terminals | screw terminal 2.5-16 mm² AWG 14...AWG 6) |
| Quantity Per Set | set of 3 |
| Provided Equipment | interphase barriers |
| Line Rated Current | 15-125 A |
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP1407012EN |
| Sustainable Offer Status | Green Premium product |
| Pvc Free | Yes |
| California Proposition 65 | WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov |
| China Rohs Regulation | Product out of China RoHS scope. Substance declaration for your information. |
| Circularity Profile | ENVEOLI1407012EN |
| Sustainable Packaging | Yes |
| Eu Rohs Directive | Compliant with Exemptions |
| Country of Origin | Mexico |
| Product Or Component Type | cable connector |
| Accessory / Separate Part Type | connection kit |
