PCSPWMKIT120A

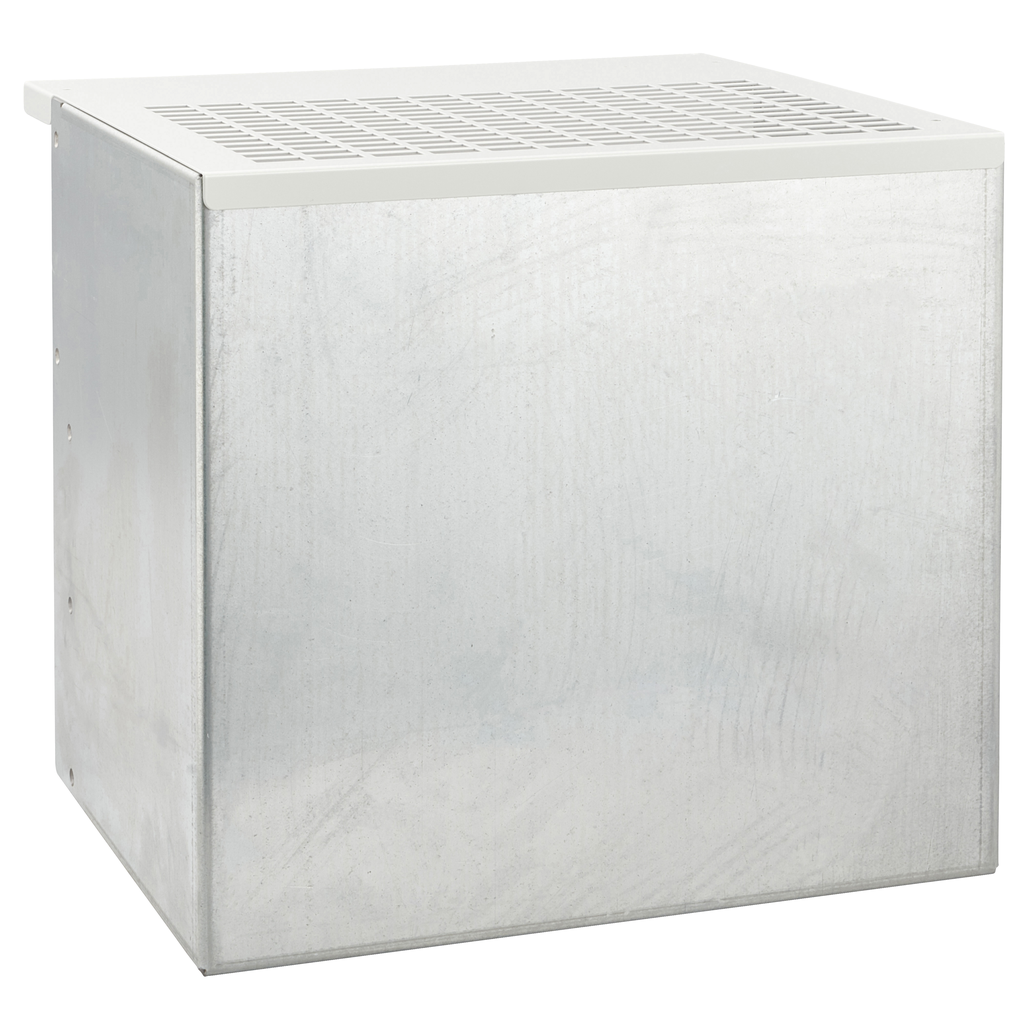

AccuSine PCS+ wall mounting conversion kit for 120 A to 200 A
This kit ensure the possibility to mount an AccuSIne PCS+ or PFV+ enclosure on a wall. Can be used to convert an Ingress Protection IP00 (UP type open) rated encloure to IP20 (UL Type 1) enclosure. Includes HMI mounting plate and cable entry enclosure for mounting on the bottom of the IP00 assemblies. The kit is to be associated with a 120A unit rating. The final assembled dimensions will be 1730mm in height, 421mm in width and 384mm in depth. For a total weight, kit plus IP00 enlosure, of 9.3kg.
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Nominal Output Current |
|
|---|---|
| Range Compatibility | AccuSine AccuSine PCS+ active harmonic filter |
| Mounting Location | enclosure |
| China Rohs Regulation | Product out of China RoHS scope. Substance declaration for your information. |
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Toxic Heavy Metal Free | Yes |
| Eu Rohs Directive | Compliant |
| California Proposition 65 | WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
| Weee | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
| Offer Type | spare part |
| Accessory / Separate Part Category | installation accessory |
| Product Or Component Type | wall-mounting kit |
| Device Composition | mounting support |
| Range | AccuSine |
Documents
- Installation Manual: AccuSine PCS+™ Active Harmonic Filter / AccuSine PFV+™ Electronic VAR Correction - NHA41798-02 (pdf)
- EcoStruxure Power: Power Quality Performance eBrochure - 998-20406238_US_NEMA (pdf)
- Spec Sheet
- Power Monitoring & Control: Section 4 - Digest 179 (2024) - Power-Monitoring-Control-Digest-Catalog-0100CT2401-SEC-04 (pdf)
